1.2Ghz5W 60km long range wireless video transmitter and receiver VTX/VRX

$118.00
Shipping calculated at checkout.
1GHZITTW5
Type: 1GHZ VTX

Order tell customer service frequency band:300Mhz/500Mhz/600Mhz/800Mhz/1Ghz/1.2Ghz/1.3Ghz/1.5Ghz/

(Default shipment is 1.2Ghz)

Description:

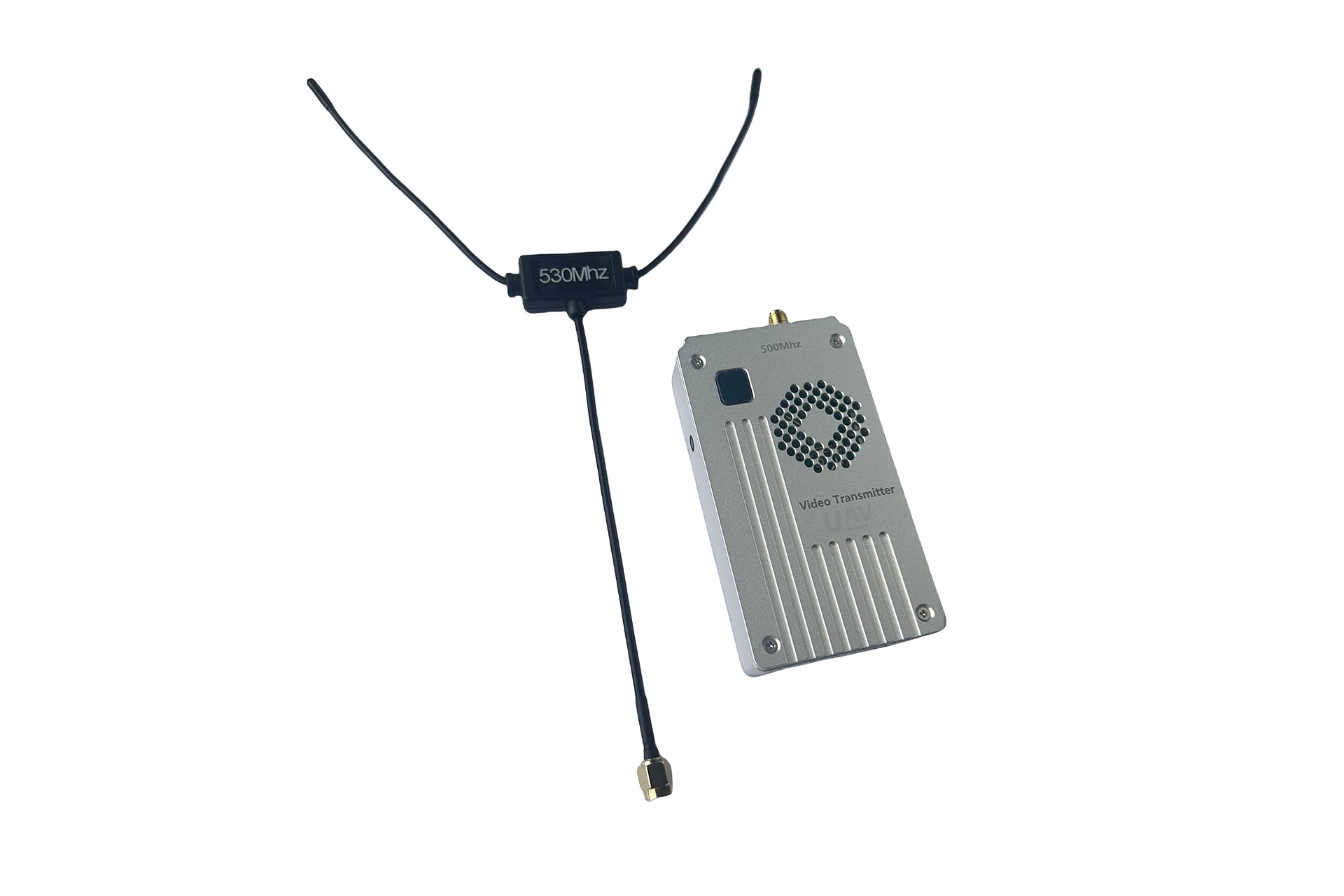

This is a brand-new wireless video transmission device, which adopts FM modulation mode and brand-new frequency, avoiding the standard frequency of 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission that has been used more in the same range, and is more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 5~10km in the open area of the city, and about 60km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).

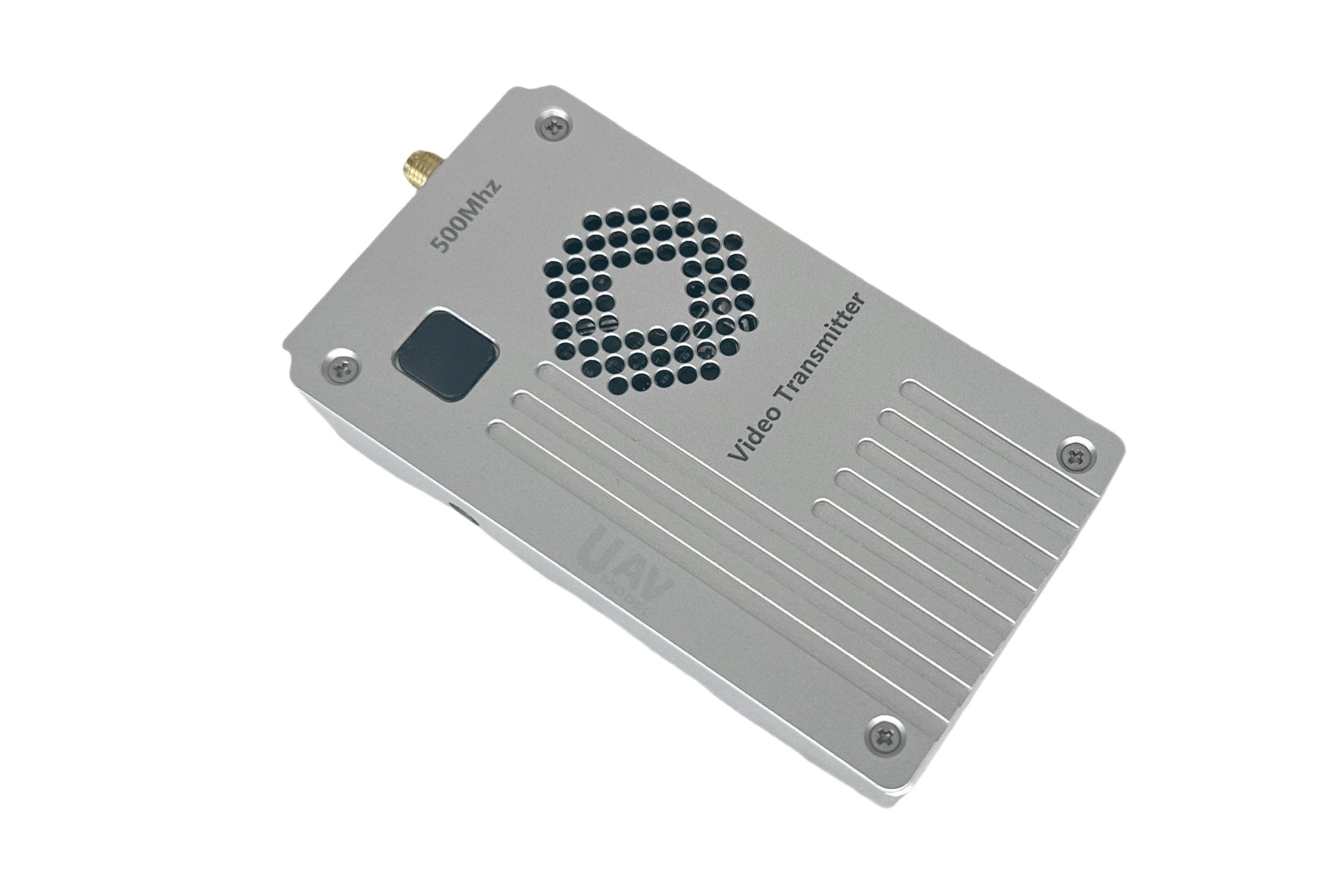

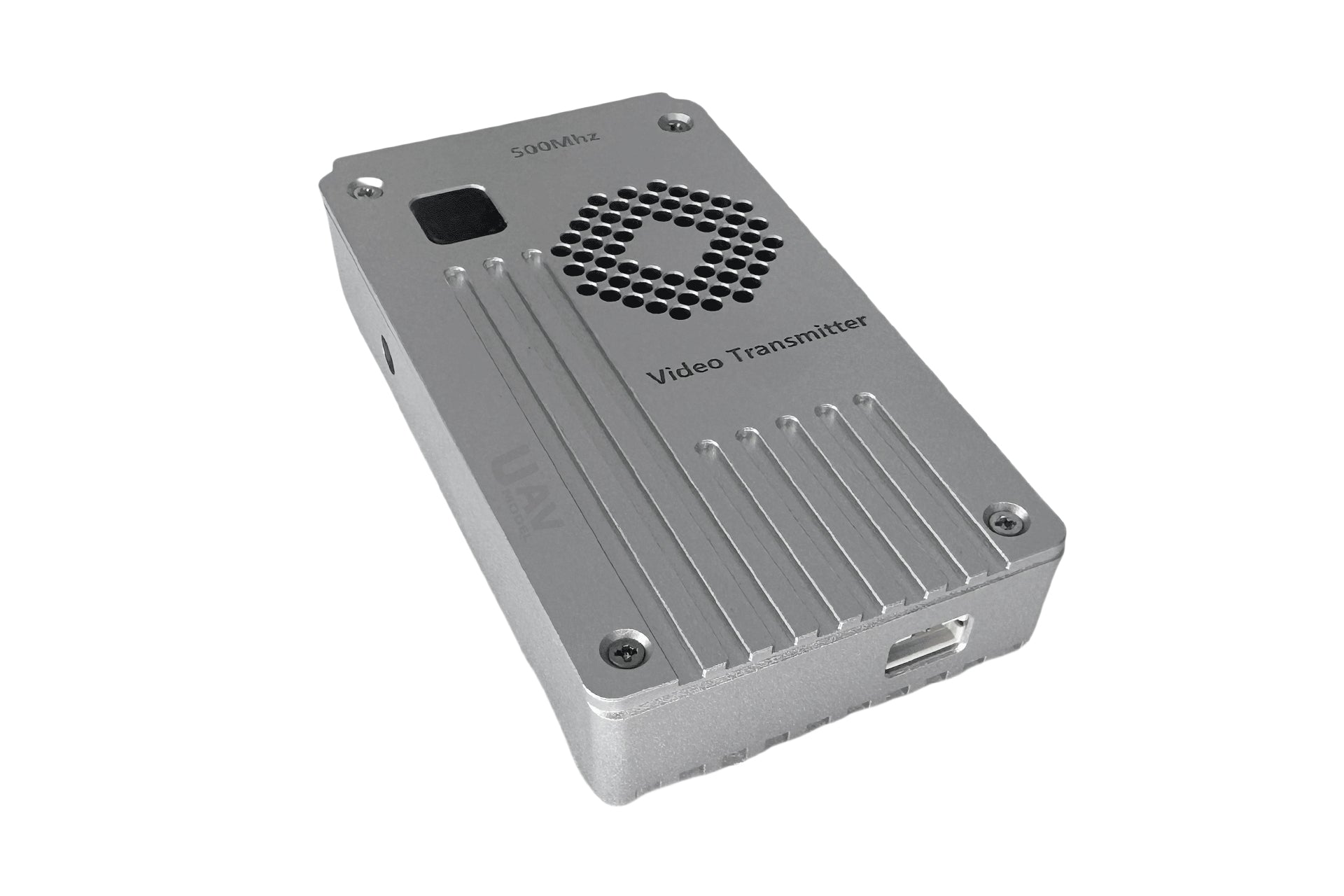

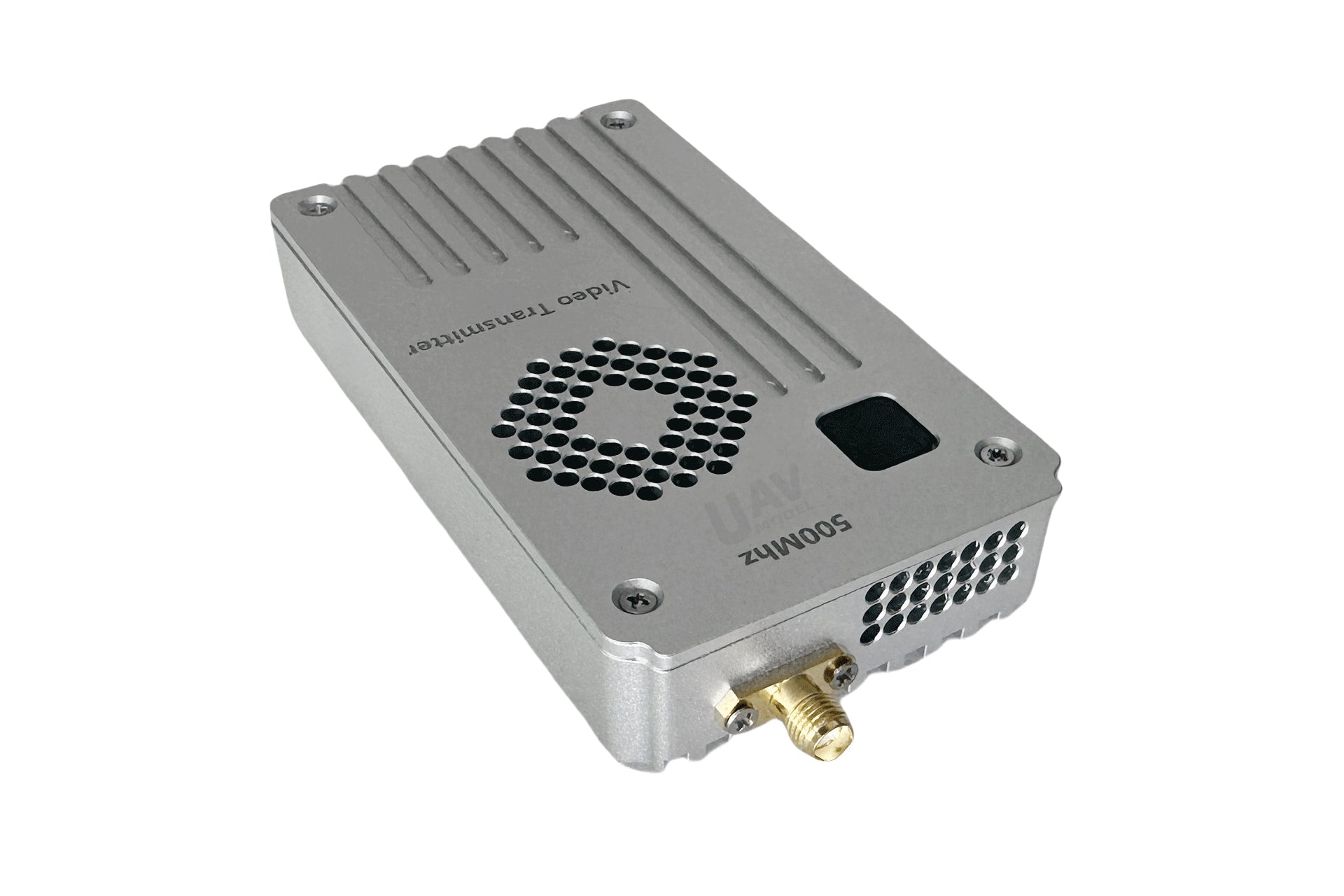

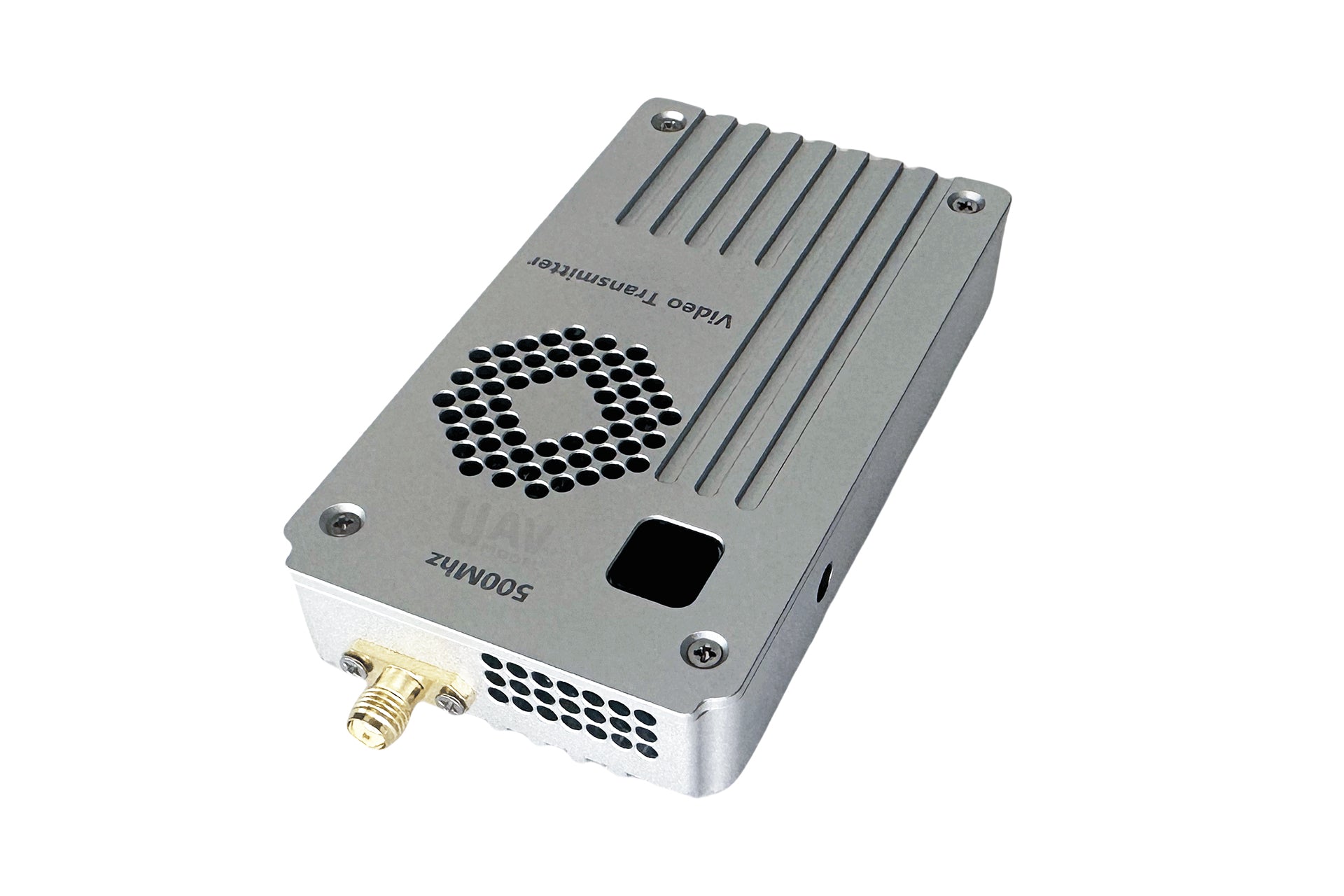

The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.

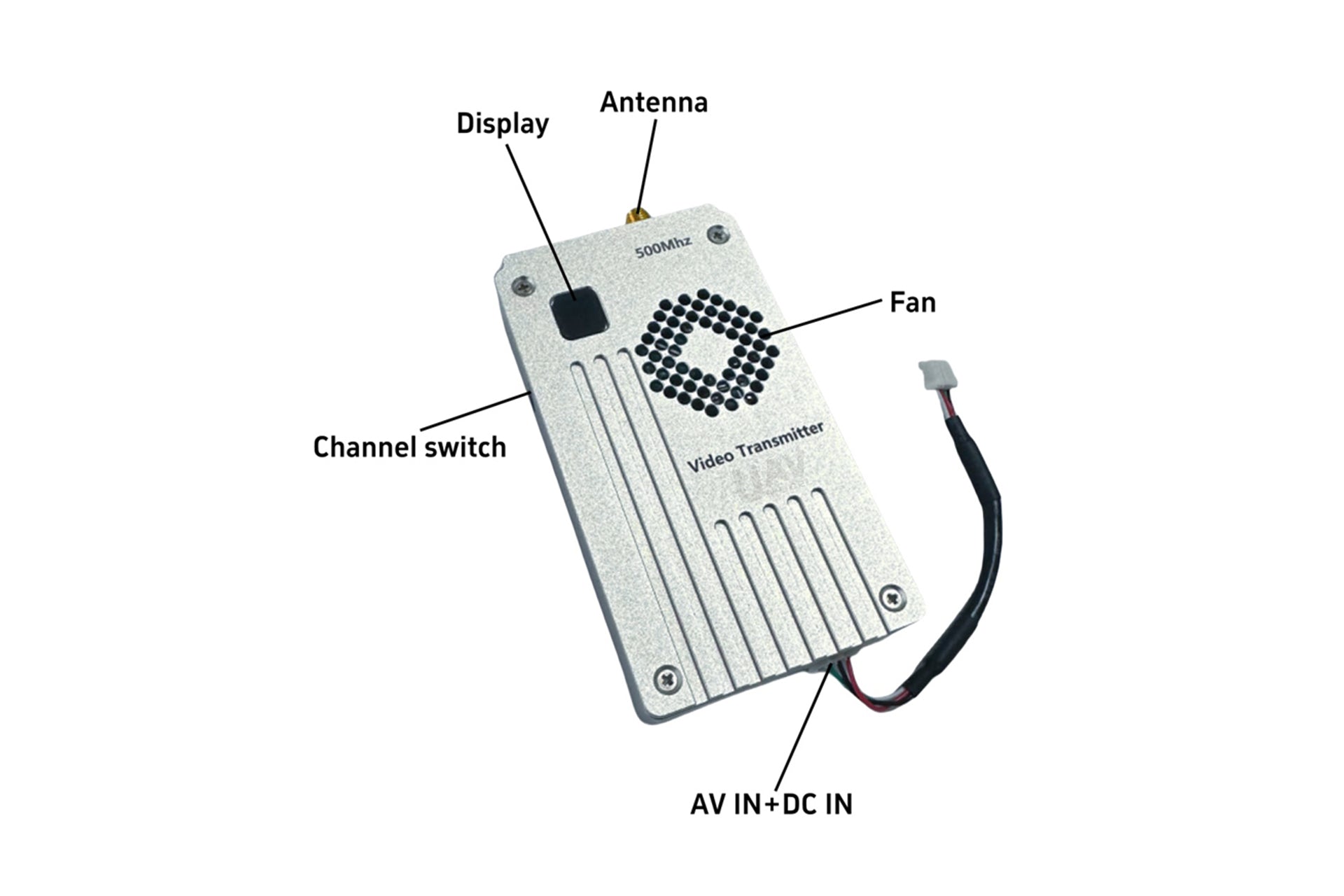

Equipped with a composite connection cable, it is easier to connect the power supply and camera.

The long range video transmitter and receiver is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (frequencies are customizable).

  VTX Specification:

Product name

Analog video transmitter

Voltage

DC 10V~36V

Current

1.3A

Modulation

FM

Frequency

300Mhz~1500Mhz (optional)

Channels

8 channels

Frequency band (choose one series)

300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization)

500Mhz: (460Mhz, 490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz)

600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz)

800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz)

1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz)

1.2Ghz: (1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz)

1.3Ghz: (1300Mhz, 1320Mhz, 1340Mhz, 1360Mhz, 1380Mhz, 1400Mhz, 1420Mhz, 1440Mhz)

1.5Ghz: (1460Mhz, 1480Mhz, 1500Mhz, 1520Mhz, 1540Mhz, 1560Mhz, 1580Mhz, 1600Mhz)

Transmit Power

5 watt

Video Output

1 Vp-p(FM)

Temperature

-10℃ ~ +50℃

Antenna port

SMA female

Transmitter Weight

104g

Dimensions

98*55*18mm (without antenna)

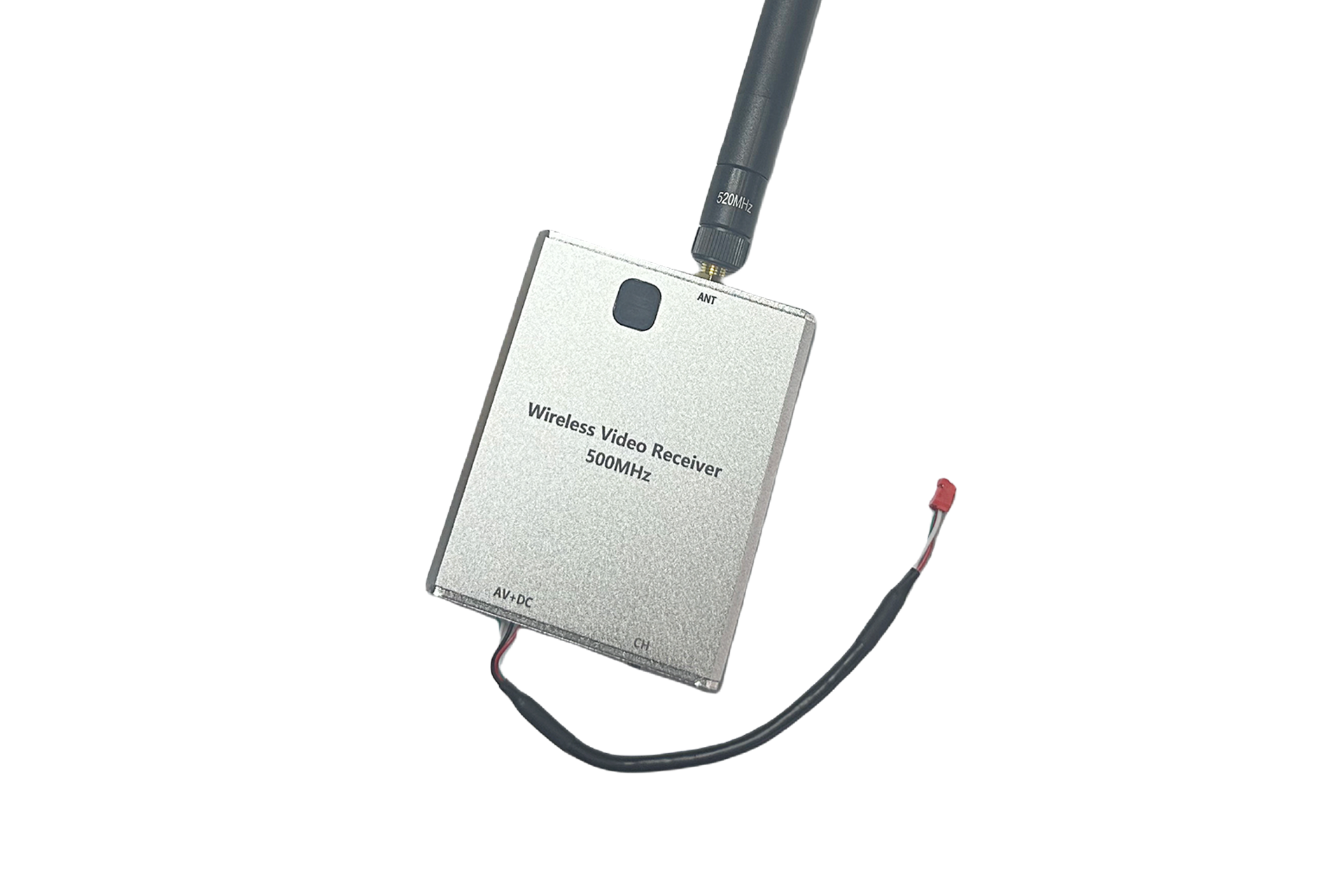

VRX Specification:

Product

Analog video receiver

Voltage

DC 10V~18V

Receiving sensitivity

-85dB

Modulation

FM

Frequency

300Mhz~900Mhz (optional)

Channels

8 channels

Frequency band (choose one series)

300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization)

500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz)

600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz)

800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz)

1Ghz: (980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz)

1.2Ghz: (1140Mhz, 1160Mhz, 1180Mhz, 1200Mhz, 1220Mhz, 1240Mhz, 1260Mhz, 1280Mhz)

1.3Ghz: (1300Mhz, 1320Mhz, 1340Mhz, 1360Mhz, 1380Mhz, 1400Mhz, 1420Mhz, 1440Mhz)

1.5Ghz: (1460Mhz, 1480Mhz, 1500Mhz, 1520Mhz, 1540Mhz, 1560Mhz, 1580Mhz, 1600Mhz)

Video Output

1 Vp-p(FM)

Temperature

-10℃ ~ +50℃

Antenna port

SMA female

Transmitter Weight

83g

Dimensions (L * W * H)

75*45*20mm (antenna port not included)

VTX = Video Transmitter (TX = transmit)
VRX = Video Receiver (RX = receive)
In the context of FPV (First-Person View) systems, a VRX is a device that receives the video signal transmitted from an FPV camera through a VTX (video transmitter) and displays it on FPV goggles or monitor.
Antenna must be connected before connect to power, otherwise it will be easy to burned-out!
