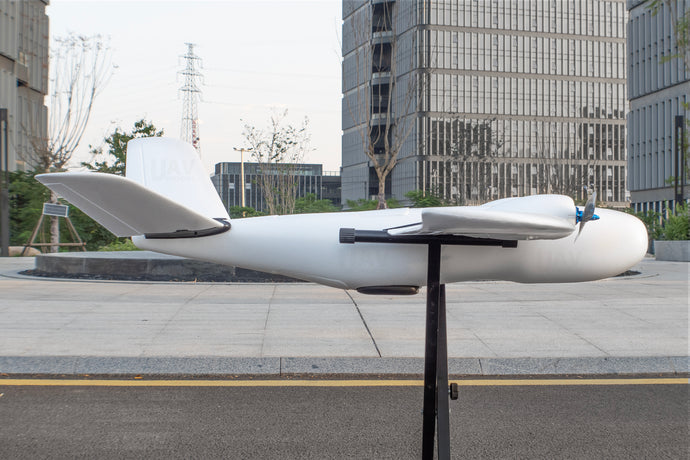

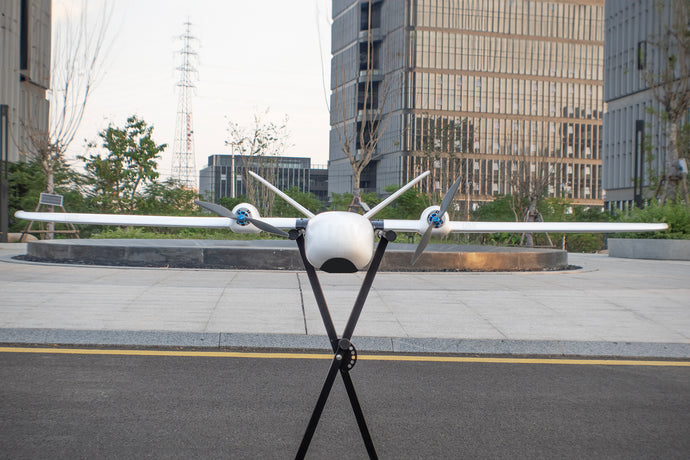

Believer is a flight platform with industry class aerial survey. It has the characteristics of portability, easy operation, friendly operation, stability and durability. The whole assembly of modular design make phototopography simple and quick,quick detachable wings,the ventral shock absorption and energy release enables the aircraft to have good portability and excellent user experience. Stratified design of the flight control cabin,the camera cabin can carry 4200W pixel camera,the battery compartment can accommodate a 6S 22000mah Lipo battery,bringing long battery life and high quality shooting effect. With the flight control system, telemetry system, power system, image system can obtain stable and safe flight performance, can be applied to terrain mapping,uas unmanned aerial, agriculture, forestry, animal husbandry protection, power inspection line, environmental protection, water and so on.
- Fuselage length: 1070mm
- Fuselage height: 185mm
- Wing area: 51dm²
- Wingspan:1960mm
- Battery compartment: 260*140*105mm
- Load compartment: 120*150*119mm
- Maximum take-off weight: 5.5kg
- Load weight: approx. 670g (Sony A7RM2)
- Recommended flight speed: 20m/s
- Range: about 90km (takeoff weight about 5kg, flight altitude 500m, light wind)
- Recommended Part for Believer (Not Included):
- Motor: 2x 2820 KV550
- ESC: 2x Hobbywing 40A
- Servo: 4x S3054 1x S08MD
- Propeller: APC 1170 CW&CCW or APC1260 CW&CCW
Feature:
- EPO materail,lightweight and durable.
- Hatch cabin inching design,convenient and reliable.
- Bigger and more reasonable fuselage capacity.
- ESC hatch cover can be removed,easy to replace the ESC.
- Aileron servo can be removed,no need to modify the servo cable.
- Bottom buffer layer design,reduce landing impact, protect fuselage and camera.
- Ergonomic design of rear fuselage,to make lifting easier and throwing more stable.
- Support tilt photography,meet the 1:1000 and 1:1200 aerial survey.
- Support hand throwing and parachute landing fall.
Installation Attention:
- - In the welding of high current connector, we must pay attention to the welding line sequence to correspond to each other, so as not to burn ESC and servo.
- - Rcommend to use the Emax ES3154 digital servo, or other servos with the same size and servo horn, easy to install the servo, and the installation of the vertical stabilizer quick release device.
Flying Attention:
- - Please avoid flying and swerving at 10m/s, so as to avoid stalling.
- - Before the flight, please be sure to check the motor and the propeller are installed correctly and secure, the ESC signal line and the power cord plug connection is reliable and reliable.
PNP version includes: (all electronic gears for PNP are packed up in the box, the end user needs to put together by themself)
