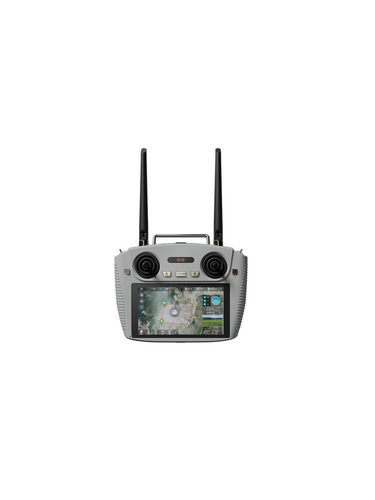

Skydroid G12 Dual Frequency HD Ground Station

Industrial-Grade 2.4GHz/5.8GHz Dual-Band Remote Controller with Integrated HD Video Link

Skydroid G12 Dual Frequency HD Drone Remote Control

Skydroid G12 Integrated Ground Station | Dual-Band FHSS Architecture | Native Android GCS Environment

Core Overview

The Skydroid G12 represents the next evolution in professional UAV command and control, deploying a true Dual-Band (2.4GHz & 5.8GHz) FHSS RF architecture for uncompromising link stability in highly congested electromagnetic environments. Engineered specifically for complex industrial, agricultural, and surveying deployments, the G12 intelligently transitions between frequencies to bypass localized interference, maintaining robust telemetry and RC authority where single-band systems fail.

Integrating a high-luminance FHD touchscreen driven by a custom Android-based edge compute module, the G12 entirely negates the requirement for external mobile devices or secondary video receivers. It natively runs industry-standard ground control station software (QGroundControl, Mission Planner) while seamlessly decoding 1080P digital video payloads with sub-100ms latency.

Designed to interface with enterprise-grade autopilot stacks (Pixhawk, CubePilot, ArduPilot, PX4), the G12 delivers granular control via industrial hall-effect gimbals and an expansive I/O suite including SBUS, UART, CAN, and HDMI output. Backed by a high-density internal lithium-ion power array, it guarantees uninterrupted operation for mission-critical BVLOS (Beyond Visual Line of Sight) flights.

Key Technological Advancements

01. Dynamic Dual-Band FHSS Routing

The core RF module utilizes an intelligent 2.4GHz / 5.8GHz Dual-Band frequency-hopping spread spectrum algorithm. This allows the ground station to dynamically evaluate spectrum noise floors and seamlessly route control packets and telemetry through the cleanest available band, maximizing link budget and preventing connection drops in urban or industrial zones.

02. Zero-Latency 1080P Video Decoding

An embedded hardware-accelerated COFDM digital receiver decodes H.264/H.265 video streams at a native 1080P60 resolution. Optimizing for FPV and precision inspection tasks, the digital pipeline achieves sub-100ms end-to-end latency. The integrated ultra-bright IPS display ensures critical visual data remains perfectly legible under direct solar load.

03. Universal GCS Compute Environment

Powered by a multi-core ARM processor running an optimized Android OS environment, the G12 acts as an autonomous edge computer. It supports direct APK sideloading for MAVLink-based GCS applications like QGroundControl. This eliminates USB OTG cable failures, tablet overheating issues, and fragmented software stacks during field operations.

04. Enterprise-Grade I/O Ecosystem

The G12 bridges the gap between pilot and payload with a comprehensive physical interface matrix. Features include SBUS/PPM outputs for flight control, UART/CAN telemetry ports for direct flight controller integration, and an HDMI Out port to feed live 1080P mission data to external command center monitors or third-party recording hardware.

Engineering Advisory

⚡ Pro Tip: Dual-Band Antenna Alignment & Telemetry Tuning
When integrating the Skydroid G12 into custom heavy-lift or long-range UAVs, antenna placement on the air-unit is critical due to the dual-frequency (2.4/5.8GHz) nature of the system. Do not mount the air-unit antennas parallel to carbon fiber plates or high-current ESC wires. For optimal diversity reception, mount the dual antennas at a strict 90-degree orthogonal angle (one vertical, one horizontal) on the lowest point of the airframe to prevent signal masking during banking maneuvers.

Furthermore, when connecting to a Pixhawk/Cube flight controller, ensure your serial port is configured correctly for the G12's telemetry stream. Set SERIALx_PROTOCOL = 2 (MAVLink 2) and configure the baud rate to 57600 (or the specific baud matching your air-unit configuration). Mismatched baud rates will result in perfectly functioning RC control (via SBUS) but zero telemetry data on your Android GCS screen.

Detailed Specifications Matrix

G12 Ground Station Specifications
Parameter Specification Notes
Product Model Skydroid G12 Dual-Band Integrated Ground Station
Operating Frequencies 2.400-2.483GHz & 5.725-5.850GHz Dual-Band FHSS Technology
Number of Channels 12+ Channels Fully mappable via GCS
RF Transmit Power 20dBm (CE) / up to 26dBm (FCC) Region specific firmware limitations apply
Max Transmission Range 10km - 15km (LOS) Dependent on RF environment and antenna setup
Display FHD High-Brightness IPS Touchscreen Sunlight readable, multi-touch
Operating System Custom Android OS Supports APK sideloading (QGC, Mission Planner)
Video Decoding 1080P 60fps (H.264 / H.265) Hardware accelerated COFDM receiver
Control Gimbals Precision Hall-Effect Sensors Zero mechanical wear, adjustable tension
Battery Capacity High-Density Li-ion array 6 - 12 hours continuous operation
Charging Interface USB Type-C Supports Fast Charging / PD
External Interfaces HDMI Out, USB-A, Type-C, TF Card For external monitors and data logging
Air Unit / Receiver Specifications
Parameter Specification Notes
Supported Protocols SBUS, PPM, PWM, MAVLink Compatible with Ardupilot, PX4, INAV
Telemetry Ports UART (Tx/Rx) Direct FC connection
Video Input MIPI / HDMI (Depending on camera) Digital HD input only
Antenna Connectors Dual MMCX or IPEX Requires 2.4/5.8GHz dual-band antennas
Input Voltage Wide voltage input (typically 2S-6S or 5V BEC) Verify specific air-unit variant labeling

Technical FAQ

Q1: Why choose a Dual-Band (2.4/5.8GHz) system over a standard 2.4GHz remote?

Standard 2.4GHz systems often struggle in urban environments or near industrial sites due to massive Wi-Fi and Bluetooth interference. The Skydroid G12's Dual-Band architecture allows the system to utilize the highly-penetrative 2.4GHz band for long-range LOS flights, while seamlessly leaning on the 5.8GHz band when 2.4GHz noise floors spike. This dynamic redundancy drastically reduces packet loss, ensuring fluid 1080P video transmission and lag-free control in environments where traditional single-band remotes trigger failsafes.

Q2: How do I output the live FPV feed to a secondary monitor for my camera operator?

The G12 features a native HDMI Output port located on the interface panel. Simply connect a standard HDMI cable from the remote to any external monitor, TV, or video capture card. The HDMI port outputs a clean 1080P feed with minimal latency. This is an essential feature for professional cinematography (allowing the director to view the feed), industrial inspections (allowing engineers to view structural data live), or broadcast streaming.

Q3: Is the Android OS locked, or can I install my own Ground Control Station (GCS) software?

The Android environment on the G12 is developer-friendly and open for APK sideloading. While it typically comes pre-configured with Skydroid's optimized software or QGroundControl, you can easily load custom MAVLink-compatible GCS applications via the USB port or TF/SD card. This makes the G12 highly adaptable for enterprise fleets that rely on proprietary flight management software, Ardupilot's Mission Planner, or customized PX4 interfaces.

Q4: What flight controllers are natively compatible with the G12 receiver?

The G12 ecosystem is universally compatible with any flight controller that supports SBUS for RC input and UART (Serial) for telemetry. This covers 99% of the professional UAV market, including the entire Pixhawk family (Cube Orange, Pixhawk 4/5/6), Holybro, CUAV, and Matek controllers running ArduPilot or PX4. For RC control, simply connect the receiver's SBUS pin to your FC's RCIN. For telemetry/GCS data, connect the receiver's Rx/Tx to an available Telem (UART) port on the FC.
Item Specification Item Specification
Display 5.5 inch high bright screen Screen Resolution 1920*1080
Processor Qualcomm 6nm processor Computer Type Android 13
Dimensions 194.3(L)*282.2(W)*94.9(H)mm Weight 683g
Battery 10000mAh Endurance 4-8 hours
Running memory 4G System Storage Memory 64G
Working frequency band 2.4Ghz/5.8Ghz Number of channels 12
Dynamic FM Automatic frequency hopping RF Power 23dBm@CE/FCC
Remote control distance 5-20km (ground-to-air, through View) Working temperature -10 # ~ 55 #
Charging interface TYPE-C External Interface Serial port, USB port, SIM card slot, TF card slot, TYPE-C
