The Ultimate Guide to G35-M30 Tethered Power Station for DJI Matrice 30 Series: Revolutionizing Continuous UAV Operations

In the rapidly evolving landscape of unmanned aerial vehicles (UAVs), operational endurance remains one of the most critical bottlenecks for commercial and industrial drone missions. Standard enterprise drones, such as the market-leading DJI Matrice 30 (M30) and Matrice 30T (M30T), offer impressive flight performance but are fundamentally constrained by lithium-ion battery lifespans, typically requiring a landing and battery swap every 30 to 40 minutes.

For mission-critical applications—including emergency response, persistent security surveillance, large-scale disaster management, and continuous night illumination—frequent battery replacements are more than an inconvenience; they represent dangerous operational gaps.

Enter the G35-M30 Tethered Power Station, a groundbreaking engineering solution designed exclusively to transform the DJI Matrice 30/30T series from a transient flight platform into a permanent, 24/7 aerial fixture. By providing an uninterrupted power supply directly from the ground via a high-tech, ultra-lightweight composite cable, the G35-M30 system unlocks unlimited flight endurance, allowing operators to focus entirely on data collection, situational awareness, and mission execution.

This comprehensive guide explores the engineering marvel behind the G35-M30 Tethered Power Station, details its advanced features, analyzes its technical specifications, and outlines how it redefines industrial UAV workflows.

---

1. Understanding the Architecture of a Tethered Drone Power System

To understand the immense value of the G35-M30, it is essential to look at how a modern tethered drone power supply operates. Unlike conventional power banks or traditional ground generators, a professional UAV tethered system requires a sophisticated, bi-modular architecture that balances high-voltage power transmission with strict aircraft payload constraints.

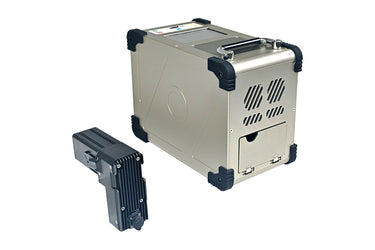

The G35-M30 system is split into two primary operational assemblies:

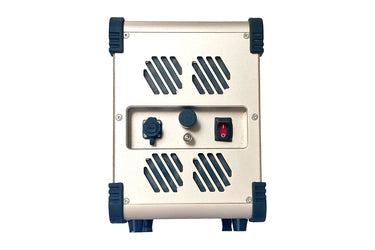

The Ground Module (Tethered Box)

The ground module is the central hub of the system. Housed in a highly durable, compact enclosure (measuring D360 × W185 × H260 mm and weighing just 9.2 kg), it acts as the primary power transformer and management station. It accepts a standard single-phase AC input (190V–240VAC @ 50/60Hz), making it fully compatible with commercial electrical grids or portable outdoor gasoline/diesel generators.

Internally, the ground module converts this low-voltage AC electricity into a high-voltage Direct Current (DC) output ranging between 600V and 850VDC (factory default is optimized at 850VDC). Transmission at such an ultra-high voltage is a crucial design choice: according to Joule's Law, increasing the voltage minimizes current flow for the same wattage, which dramatically reduces resistive heat losses and allows the system to use significantly thinner and lighter copper conductors.

Beyond power conversion, the Ground Module integrates a smart cable storage reel, an AI-driven servo motor assembly, advanced communication units, and an integrated human-machine interface (HMI) microprocessor.

The Air Module (Aircraft-Mounted Power)

The airborne counterpart is a masterpiece of lightweight power engineering. Weighing a mere 560g, the Air Module acts as a high-efficiency buck converter (DC/DC transformer). It is meticulously engineered to fit perfectly into the DJI Matrice 30’s native battery compartment.

Installation is completely seamless: operators simply slide the Air Module into the battery slot and engage the physical locks, requiring zero permanent structural modifications to the aircraft. The Air Module receives the high-voltage 650V–850VDC power sent from the ground through the tether cable and steps it down into a highly stabilized, ripple-free 25.5VDC output. This is the exact voltage range required to drive the M30's primary propulsion systems, flight controllers, onboard sensors, and gimbal payloads.

---

2. Key Advantages of the G35-M30 Tethered Power Station

The market for industrial drone accessories features various tethered systems, yet the G35-M30 distinguishes itself through its smart operational autonomy, advanced safety mechanisms, and rugged build quality. Below are the core performance pillars that make the G35-M30 an indispensable asset for enterprise UAV fleets.

True Contactless Automation: Set It and Forget It

Traditional or low-cost tethered drone systems often require a dedicated ground technician to constantly monitor and manually adjust the cable tension via dials or buttons. Incorrect tension settings can be catastrophic: if the cable is wound too tightly, it exerts an abrupt downward pulling force that strains the drone’s motors or destabilizes flight; if it is too loose, the cable sags, creating high wind resistance or risking entanglement with ground obstacles or the drone's propellers.

The G35-M30 solves this fundamental flaw with its proprietary AI-driven Speed and Torque Control System. The internal servo motor handles cable management entirely autonomously.

• Synchronized Retraction & Extension: The system continuously senses the minute alterations in cable tension and the drone's instantaneous vertical velocity. Whether the M30 is ascending rapidly at 5 m/s or descending during an automated landing sequence, the cable automatically rolls out or reels in with variable acceleration control.
• No Manual Settings Required: There is no need for emergency winding switches, manual torque adjustment knobs, or preset voltage parameters before takeoff. The entire sequence from launch to landing requires absolutely zero human intervention at the ground box. The pilot focuses 100% on navigating the drone or monitoring the payload camera feed.

Advanced Wind Resistance and Tensile Dynamics

Outdoor operational environments are unpredictable, and high-altitude winds pose severe risks to tethered operations. When crosswinds push against an extended cable, a rigid or unmanaged cable will act like a sail, introducing erratic, asymmetric forces to the aircraft's flight controller.

The G35-M30 utilizes a dynamic tension maintenance loop (maintaining a constant tension profile between 0 and 15 Newtons). When subjected to heavy wind shears, the cable is allowed to flex and curve naturally under micro-adjusted tension. As the wind gusts subside, the system immediately recalculates the optimal take-up speed, recovering the cable slack smoothly. This eliminates the "cycloid effect" (large-amplitude swinging) and prevents dangerous transient pulling phenomena, ensuring the DJI M30 hovers with rock-solid stability even in challenging weather.

Uncompromising Dual-Layer Safety Protocols

Operating high-voltage electrical equipment in public or industrial environments requires stringent failsafes. The G35-M30 incorporates comprehensive hardware and software protections to completely isolate risk:

1. Automatic High-Voltage Shutdown: In the extremely rare event of a physical cable break, an electrical short circuit, or accidental detachment, the main control unit detects the instantaneous impedance drop and shuts off the high-voltage DC output within milliseconds. This prevents any risk of live wires sparking on the ground or causing electrical hazards to personnel.
2. Side Cable Outlet Architecture: The mechanical exit path for the cable on the ground module is deliberately positioned on the side rather than the top. This critical design choice guarantees that when the drone returns to base and touches down, the cable is pulled away cleanly from the landing zone, eliminating the risk of the drone landing directly on top of its own cable or getting its landing gear entangled.
3. Emergency Backup Integration: The G35-M30 works in tandem with the drone’s inherent systems. The air module does not continuously draw down or charge the backup flight battery, meaning the drone's secondary safety power buffer remains fully preserved. If an external generator runs out of fuel or a ground power line is severed, the system alerts the pilot, and the drone can transition cleanly to its backup power to perform a safe, controlled manual or autonomous return-to-home landing, while the ground module utilizes its internal backup battery to automatically spool and save the remaining cable.

---

3. Comprehensive Technical Specifications Matrix

For technical procurement officers, industrial engineers, and commercial fleet managers, precise data is paramount. The table below outlines the exhaustive specifications of the G35-M30 Tethered Power Station components.

---

4. Ultra-Premium Composite Cable Engineering

The cable linking the ground station to the Matrice 30 drone is often the most highly engineered element of the entire setup. It is a lifeline that must simultaneously carry thousands of watts of power, withstand intense structural pulling forces, resist extreme environmental conditions, and remain as light as a feather.

The G35-M30 cable utilizes an advanced, multi-layered coaxial composite design:

[Outer Protective Film Sheath]
       └── [Kevlar Braided Tensile Matrix (Structural Core)]
               └── [Teflon High-Voltage Insulation Layer]
                       └── [Silver-Plated Copper Power Conductors]
                               └── [Optional Single-Mode Fiber Optic Core]

• Silver-Plated Copper Conductors: By using ultra-pure copper heavily plated with premium silver, the cable maximizes surface conductivity (exploiting the skin effect for high-frequency stability) and lowers overall electrical resistance.
• Teflon Insulation: Teflon (PTFE) provides an incredible dielectric breakdown strength, allowing a razor-thin layer of insulation to safely contain the 850VDC power without cracking under continuous flexing or high temperatures.
• Kevlar Braided Structural Matrix: Kevlar—the same synthetic fiber used in ballistic body armor—is woven directly into the cable's core framework. This gives the cable immense tensile strength, allowing it to withstand high directional loads without breaking or stretching out of shape.
• Optional Single-Mode Fiber Optics: For industrial environments with high electromagnetic interference (EMI)—such as near high-voltage power grids, military radar installations, or radio towers—the cable can be built with a single-mode fiber optic core. This provides an isolated data link between the ground station and the drone, ensuring crystal-clear telemetry and high-bandwidth video transmission that is completely immune to radio frequency jamming or EMI.

With a nominal weight density of just 5.5 grams per meter, a full 55-meter spool adds less than 303 grams of total hanging weight to the system at maximum extension. This minimal weight profile leaves plenty of leftover payload capacity for the DJI M30 to carry heavy third-party accessories.

---

5. Infinite Expansion: The L12 Industrial Drone Floodlight Integration

The utility of a persistent hovering drone increases exponentially when paired with specialized high-power payloads. Because the G35-M30 provides a continuous 3,500W power supply, operators are no longer limited to low-power cameras or small sensors. The system is designed for massive hardware expansions, most notably the L12 Industrial Airborne Floodlight.

Technical Capabilities of the L12 Payload

The L12 is a heavy-duty, ultra-bright illumination matrix engineered to mount directly onto the airframe arms of the Matrice 30 series drone using secure, high-durability rubber mounting straps.

• Extreme Luminous Output: The floodlight features a standard operating draw of 1,200W, but it can be overclocked into an ultra-bright mode drawing a massive 2,400W. This outputs an astonishing 200,000 Lumens of light at a luminous efficacy of 168 lm/W.
• Massive Operational Footprint: Operating from an altitude of 50 meters, a single L12-equipped M30 drone can brightly illuminate an active workspace of 3,000 square meters at a highly functional intensity of 54 lux. When raised to an altitude of 100 meters, its beam opens up to cover a vast 10,000 square meters area (at 13 lux), effectively turning night into day for ground personnel.
• Smart Power Architecture: Unlike lower-tier lighting kits that run hot and draw power from the drone's internal electronics, the L12 connects directly to a dedicated high-voltage output port on the G35 Air Module. Operating at 800V–1000VDC internally, the light runs with minimal current draw, maintaining low operational temperatures and preventing thermal throttling during long deployment cycles.

Seamless Operational Synchronization

The L12 illumination payload integrates directly into the drone’s control loop. Pilots can control the light's modes, dimming levels, and strobe settings straight through the main DJI Pilot 2 app screen or via a connected ground HMI tablet. To make operations even simpler, the light features smart altitude tracking, automatically powering on as the drone ascends past a safe altitude threshold and shutting off upon final descent to protect ground crews from glare.

---

6. Industrial Applications and Real-World Use Cases

The unique capabilities of the DJI Matrice 30, enhanced by the continuous power of the G35-M30 Tethered Power Station and the high-output illumination of the L12 payload, create a versatile tool across a wide range of industrial sectors:

Emergency Management and Night Rescue Operations

When natural disasters strikes—such as earthquakes, flash floods, or structural collapses—traditional ground-based lighting trucks are often blocked by debris or broken infrastructure.

Deploying an M30 drone equipped with the G35-M30 system allows emergency teams to establish an aerial lighting tower in under five minutes. Hovering safely above the disaster zone, the drone can cast down 200,000 lumens of light non-stop for days on end. This gives search and rescue teams the constant visibility they need to safely operate heavy equipment, locate survivors, and coordinate medical triage without needing to stop for battery changes.

Permanent Perimeter Security and Law Enforcement

For critical infrastructure installations like nuclear facilities, border checkpoints, high-security prison yards, or international summits, maintaining continuous surveillance is vital.

A standard drone is limited by its short battery life, which leaves regular blind spots during battery swaps. By connecting the DJI Matrice 30 to a G35-M30 tethered box, security forces can keep a high-resolution optical and thermal sensor array floating 100 meters in the air indefinitely. This setup creates an un-jammable, persistent eye-in-the-sky that can track perimeter movements across miles, giving security teams an uninterrupted view of the entire site.

+-------------------------------------------------------------+
|               PERSISTENT 24/7 SURVEILLANCE LOOP              |
+-------------------------------------------------------------+
|  [M30T Thermal Gimbal] ---> Continuously Monitors Perimeter |
|           ▲                                                 |
|           │ (Constant 25.5VDC Power Supply)                 |
|           │                                                 |
|  [G35-M30 Ground Station] -> Fed by Grid Power / Generator  |
+-------------------------------------------------------------+

Large-Scale Construction and Infrastructure Inspection

Major infrastructure projects—such as building expansive transport hubs, pouring massive concrete foundations at night, or running around-the-clock mining operations—require bright, reliable area lighting to keep workers safe and maintain quality control.

The G35-M30 system replaces clumsy tow-behind light towers, which take up valuable ground space and cast long, dangerous shadows across the job site. A tethered drone provides clean, top-down illumination that eliminates shadows entirely, while its onboard cameras allow project managers to monitor work progress and track assets in real-time.

---

7. Operational Best Practices for Industrial Deployments

To ensure maximum hardware lifespan and maintain the highest levels of safety during tethered UAV operations, deployment teams should closely follow these standard operating procedures:

1. Power Source Validation: Always verify that your ground power source can supply a stable AC voltage between 190V and 240VAC under full load conditions. If you are using a portable generator, ensure it has a rated continuous output capacity of at least 4.5 kW to comfortably handle peak transients when both the drone's propulsion motors and the expansion floodlights are drawing full power simultaneously.
2. Pre-Flight Cable Inspections: Before every launch, manually inspect the visible outer layer of the composite cable for any signs of mechanical wear, cuts, or abrasion from previous missions. Even though the inner silver-plated conductors are protected by a high-strength Teflon dielectric layer, keeping the cable clean and intact is essential for long-term high-voltage insulation safety.
3. Environmental Considerations: The G35 Air Module features a robust IP54 ingress protection rating, making it highly resistant to dust and light rain, while the ground box is rated at IPx4. During heavy downpours or severe winter storms, it is best practice to place the ground module under a portable pop-up canopy or rain shelter to protect its internal high-voltage transformer cooling vents from water buildup.
4. Hands-Off Operational Policy: Because the G35-M30 features a fully automated, AI-driven speed and torque control loop, ground operators should strictly avoid touching, guiding, or pulling on the tether cable during flight. The ground winch system automatically adjusts itself to match the drone's movements, and avoiding manual contact eliminates any risk of accident or interference with the sensitive feedback loop.

---

8. Frequently Asked Questions (FAQ)

Can the G35-M30 system be used with drones other than the DJI Matrice 30 series?

The G35-M30 is specifically engineered and optimized for the mechanical dimensions, voltage requirements, and communication protocols of the DJI Matrice 30 and Matrice 30T platforms. For other drone platforms, such as the DJI Matrice 300 RTK or custom multi-rotors, alternative tethered power stations with matching voltage profiles and custom air module bay adapters must be used.

What happens if the ground power generator suddenly runs out of fuel?

Safety is built directly into the core design. If the ground power supply is interrupted, the G35 Air Module immediately stops drawing ground power and seamlessly switches the drone over to its internal backup flight batteries. The pilot will receive an instant warning notification on their remote controller, allowing ample time to fly the drone back and land safely. Simultaneously, the ground station utilizes its own built-in backup battery to automatically power the winch and reel the cable back in cleanly.

Does using the tethered air module cause long-term wear on the drone's internal electronics?

No. The G35 Air Module outputs a highly regulated, smooth 25.5VDC current that matches the electrical characteristics of a standard DJI intelligent flight battery. It contains advanced filtering circuits that protect the drone’s delicate internal flight controller, ESCs, and sensor gimbals from voltage spikes or electrical noise, ensuring your aircraft remains fully protected.

Is it safe to touch the tether cable while the system is powered on and flying?

No. Operating procedures strictly prohibit touching the cable while the system is running. The cable carries high-voltage electricity (up to 850VDC), and while it is heavily insulated with robust Teflon and protective film layers, manual handling during operation creates unnecessary risks and can interfere with the automated tension tracking loop. Let the AI winch handle all physical cable management autonomously.

What is the maximum wind speed that the G35-M30 system can safely handle?

The system's wind tolerance is designed to complement the DJI Matrice 30 drone, which can fly in sustained winds of up to 15 m/s (approx. 33.5 mph). Thanks to the ground box’s smart torque control system, the cable maintains a constant tension profile between 0 and 15N, minimizing cable sway and preventing sudden pulling forces from destabilizing the drone in high winds.

---

Conclusion: The New Era of Persistent Aerial Systems

The G35-M30 Tethered Power Station represents a major leap forward in commercial UAV capabilities. By removing the limitations of short battery life, it elevates the DJI Matrice 30 from a short-range inspection tool into a powerful, long-endurance aerial asset.

Featuring a fully automated AI winch system, advanced high-voltage composite cable engineering, robust safety failsafes, and support for high-output payloads like the 200,000-lumen L12 floodlight, the G35-M30 is the ultimate solution for demanding commercial operations. For emergency service teams, security professionals, and industrial managers worldwide, investing in the G35-M30 platform unlocks true 24/7 aerial capabilities, ensuring your team has the constant visibility and data stream needed to make critical decisions when every second counts.
