Skywalker

Skywalker X8 Strong Composite 2120mm UAV Fixed Wing Drone

$537.90

Last 90 Days Sales: 45 PCS

SKYX8-GFRPKW
Color: White
MODE: KIT

Order ships in 10~16 business days.

Secure Checkout & Bank Transfer

American Express
Diners Club
Google Pay
JCB
Maestro
Mastercard
PayPal
Union Pay
Visa
Generic

Customers who can not place an order please contact us;

Tag : Aerial Photography Equipment , Composite Drone , Fixed Wing Drone , Skywalker X8 , UAV Drone
Color: White
MODE: KIT



Skywalker X8 Composite UAV

Composite Airframe

Imported fiberglass + honeycomb · baked finish


Ultra-long Endurance

6kg MTOW · 150 min


Quick-detach Assembly

Modular design · rapid deployment


Catapult / Parachute

Catapult launch · landing / parachute recovery

Skywalker X8 is a high-performance composite flying-wing UAV designed for long-endurance, heavy-payload missions. The airframe utilizes imported fiberglass and honeycomb composite materials, significantly reducing weight while greatly enhancing structural strength and wind resistance. The streamlined baked-finish body combines low drag with wear resistance — delivering both visual appeal and practical durability.

This model offers extensive DIY flexibility, supports catapult launch as well as landing / parachute recovery, and the equipment bay can accommodate full-frame cameras (e.g., A7R2). At a 6KG maximum takeoff weight, the measured flight time reaches up to 150 minutes, making it widely suitable for long-range inspection, aerial surveying, and special mission payloads.

Max takeoff weight 6kg Wingspan 2120mm Catapult launch / landing & parachute 6S 12000–22000mAh battery
Detailed Specifications
Model X8 Composite
Wingspan 2120mm
Length 790mm
Wing Area 80dm²
CG (Center of Gravity) 430 – 440mm from nose
KIT Weight 1850g
PNP Weight 2700g
Recommended Flying Weight 3000 – 6000g
Airframe Imported fiberglass, honeycomb composite
Launch Method Catapult
Recovery Method Landing / Parachute
Parachute Bay Dimensions 155*140*75/95 mm
Parts List
Item Specification KIT PNP RTF
Fuselage Upper / Lower 2 2 2
Wings Left / Right 2 2 2
Hardware Kit Screws, linkages, horns, pushrods, etc. 1 1 1
Quick-detach Fittings Wing/fuselage quick-release structure 2 2 2
Foam Winglets Tip winglets 2 2 2
Carbon Tubes Wing/fuselage reinforcing carbon tubes 2 2 2
Motor Mid: 3530 KV520 / High: 4255 KV520 1 1
ESC Mid: 60A / High: 80A Platinum 1 1
Servos 18g (or 17g) metal-gear servos 2 2
Propeller 14×8F 1 1
Battery 6S 12000~22000mAh 1
Transmitter 4CH 1
Frequently Asked Questions (FAQ)
Q1: What is the actual flight time and speed of this aircraft?
At a 6KG maximum takeoff weight, the measured flight time reaches up to 150 minutes. The recommended cruising speed is 18 – 20 m/s for optimal endurance performance.
Q2: What are the differences between KIT, PNP, and RTF versions?
KIT: Includes only the airframe shell (fuselage, wings, empennage, etc.) along with carbon tubes and hardware fittings — no electronic components (motor, ESC, servos, propeller, battery, transmitter, etc.) are included. All electronics must be purchased separately.

PNP: Includes the airframe plus motor, ESC, servos, and propeller (and landing gear if applicable) as separate components, but does NOT include battery or transmitter/receiver. Users need to follow the manual to install, wire, and secure the motor, servos, ESC, and other electronics, then the aircraft is ready to fly.

RTF: Includes everything — airframe + motor, ESC, servos, propeller + 6S 21000mAh battery + 6-channel transmitter, approximately 99% assembled. Users only need to follow the manual to install the wings, ailerons, and vertical stabilizer, then bind and fly.
Q3: How is the parachute mounted? Is the bay large enough?
The fuselage features a dedicated curved parachute bay (approx. 15.5×14×7.5/9.5 CM). The bay is designed to be removable, making it very convenient for later equipment maintenance or parachute replacement. We recommend a 6–8KG class parachute.
Q4: Is the catapult hook installation complicated? What are its features?
The catapult hook is made of aluminum alloy and has been shortened to ensure easier in-flight release. Installation should follow the manual closely to ensure a secure fit.
Q5: Can the equipment bay hold a large-capacity battery and a full-frame camera?
Absolutely. The bay supports side‑by‑side placement of 6S high‑capacity batteries and includes a built‑in horizontal flight‑controller platform. The space is generous and can easily accommodate a full‑frame mirrorless camera like the A7R2.
Recommended Products

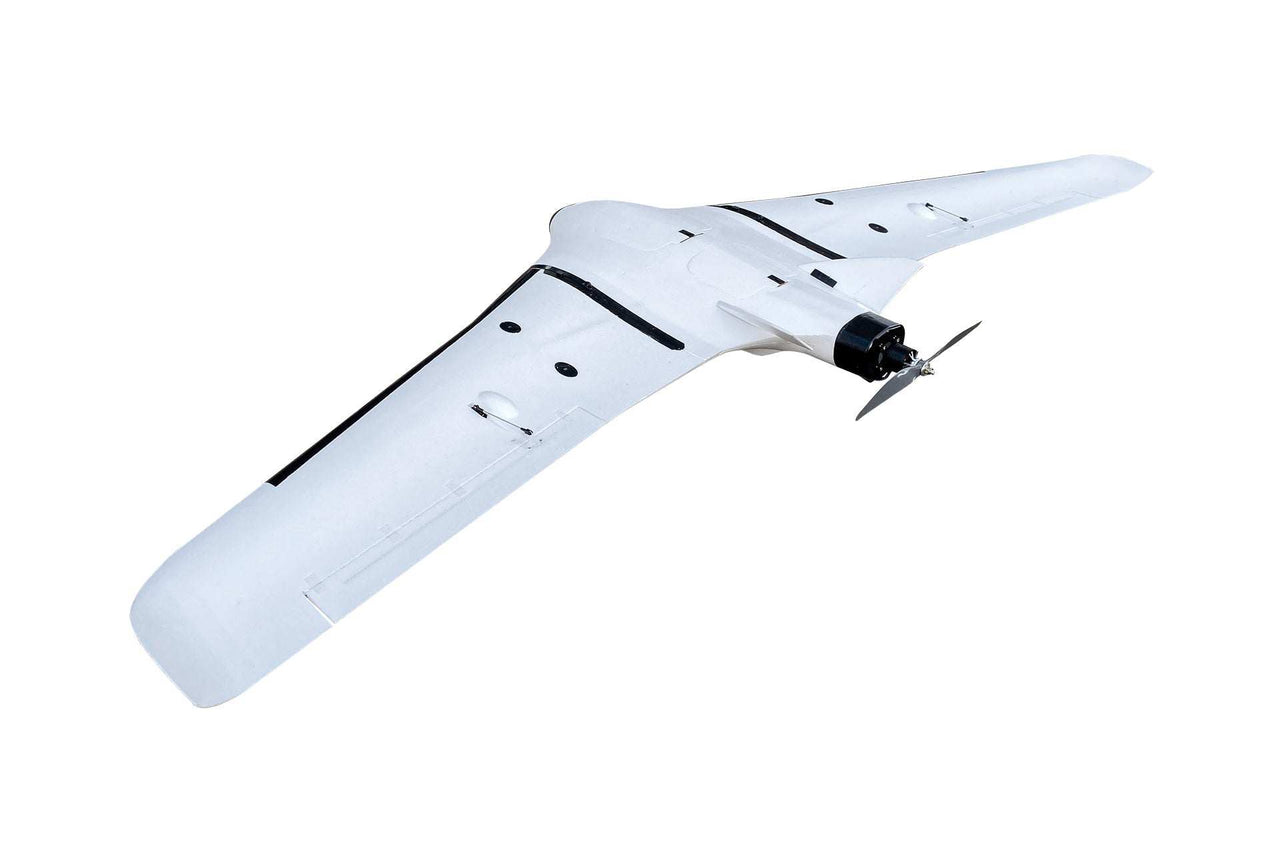

Skywalker X8 Pro Upgraded
Upgraded

Skywalker X8 Pro Upgraded

An upgraded version of the classic X8, with enhanced performance and superior flight stability. Wingspan 2350mm, MTOW 8kg, tailored for heavier payload missions.
Wingspan 2350mm MTOW 8kg Endurance ~120min
View Details

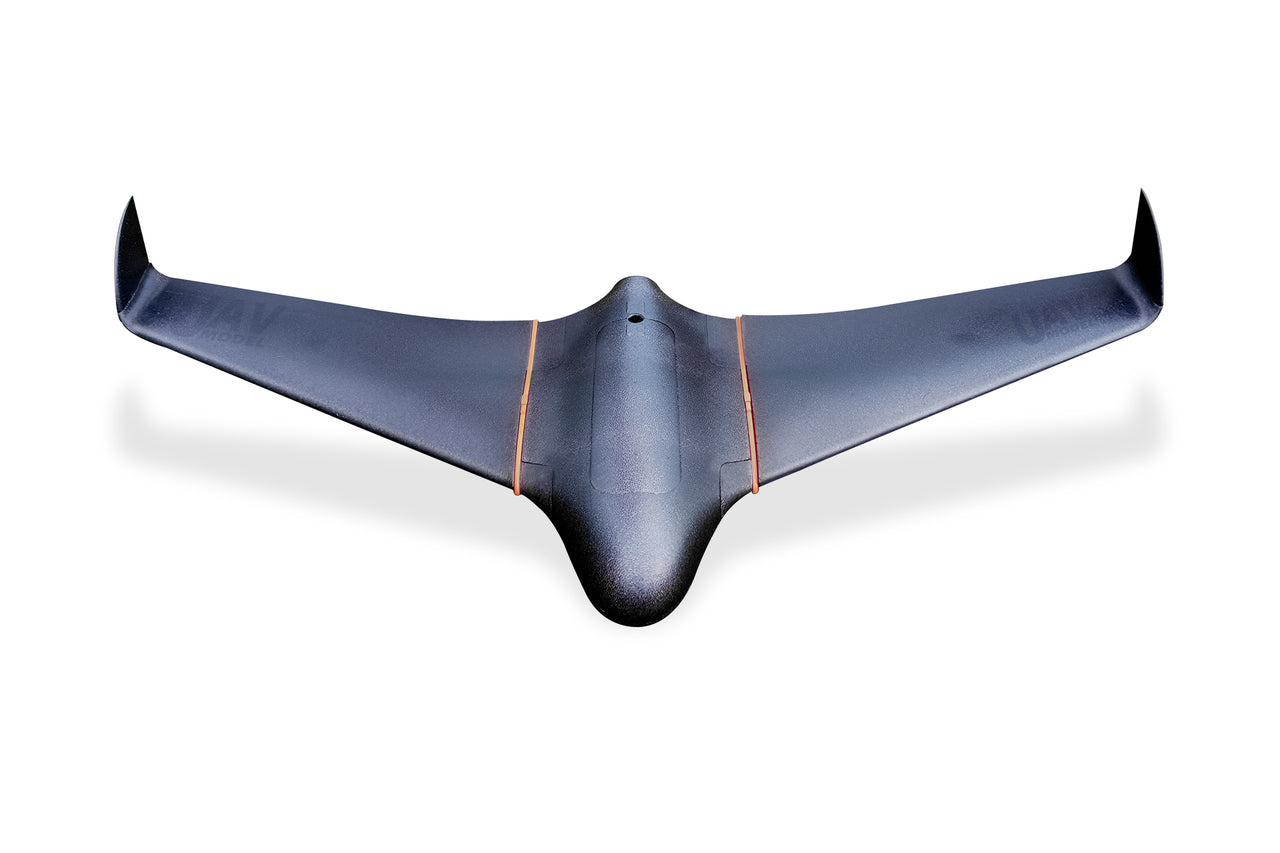

Skywalker X8 2120mm UAV
Classic

Skywalker X8 2120mm UAV

Classic EPO flying-wing platform with modular quick‑detach design. A proven, mature model widely used in aerial photography, mapping, and inspection — excellent value for money.
Wingspan 2120mm MTOW 6kg Endurance ~120min
View Details

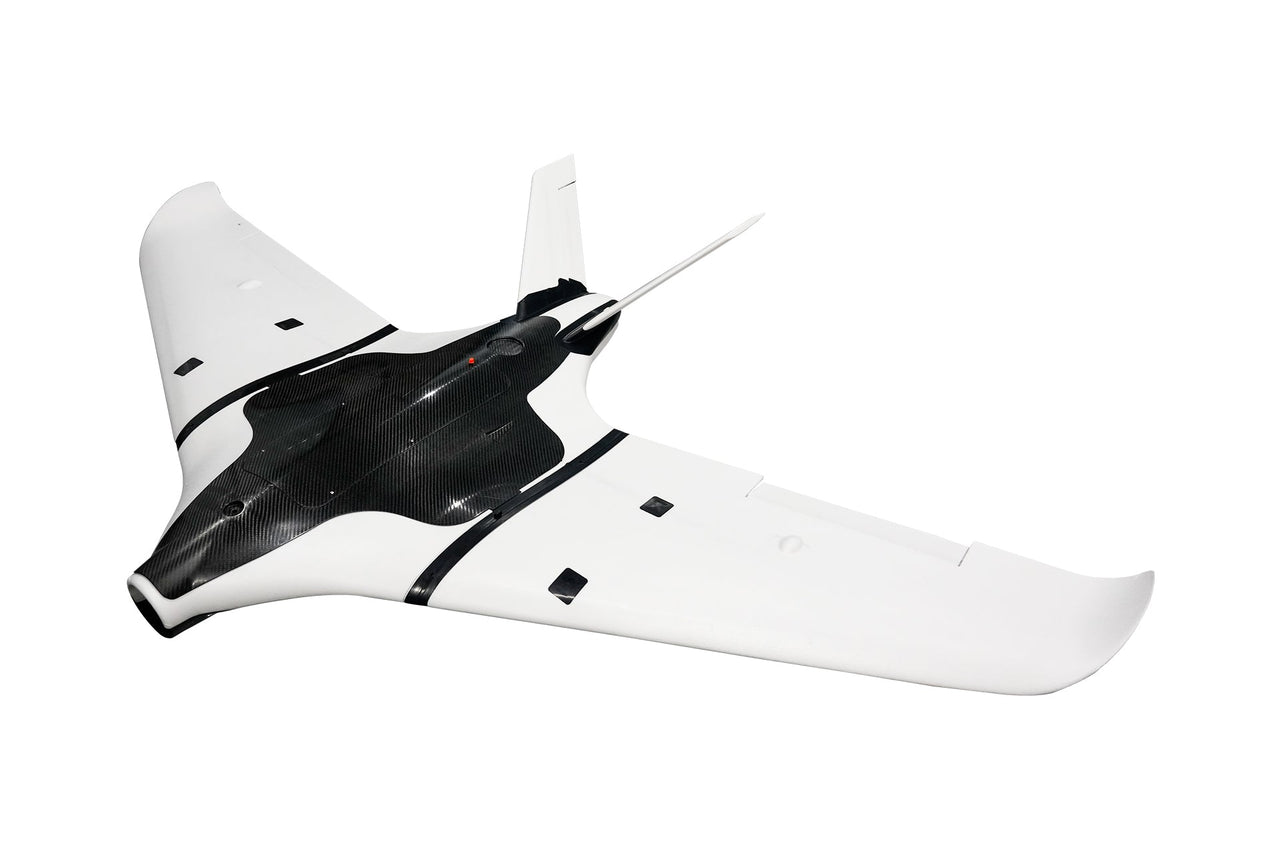

Skywalker V8 Strong Composite
Hot

Skywalker V8 Strong Composite

EPO composite airframe with carbon reinforcement at key points, large wing area — ideal for heavy‑lift long‑endurance mapping, inspection, and logistics.
Wingspan 2350mm MTOW 13kg Max Payload 9kg
View Details

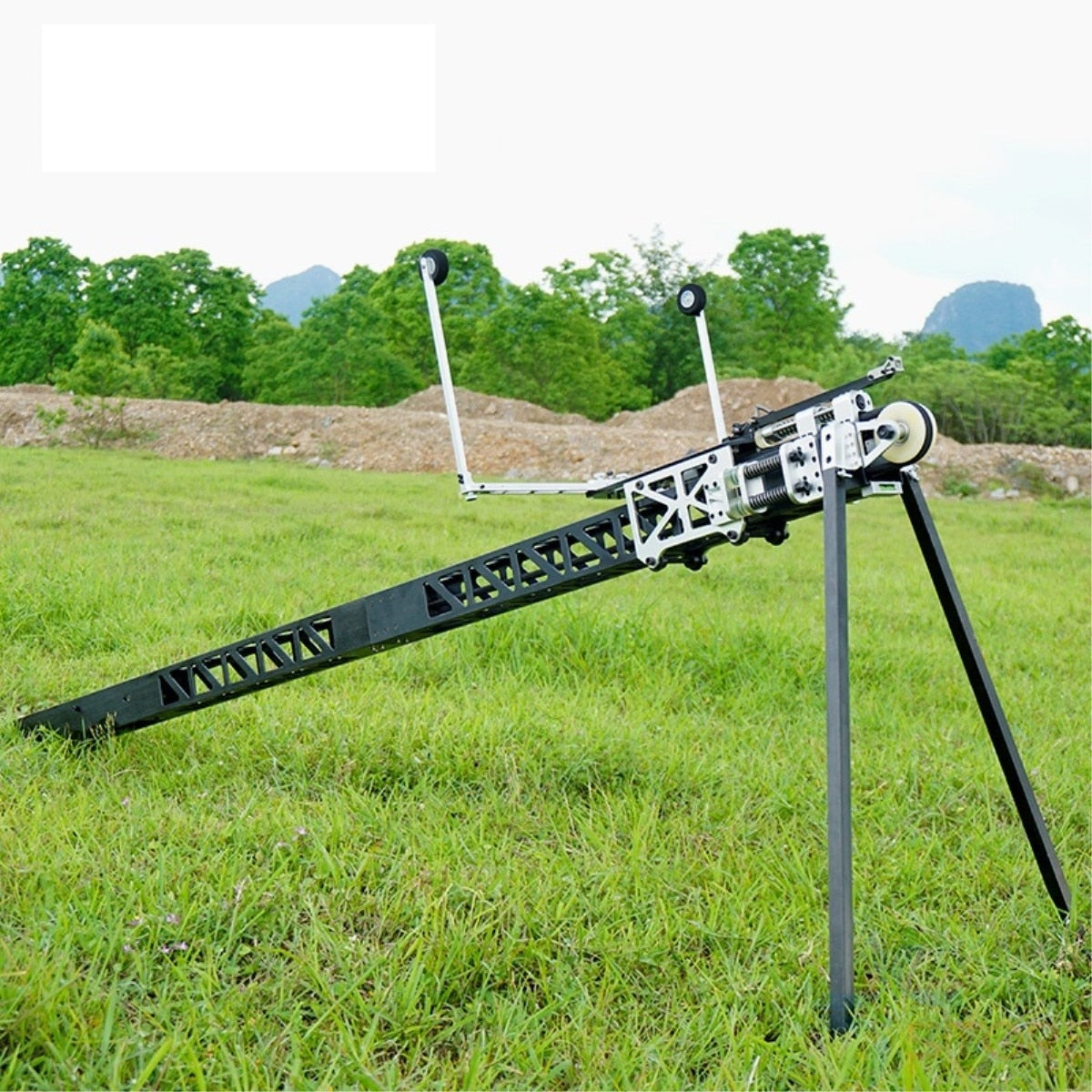

Skywalker Catapult Launch Rack
