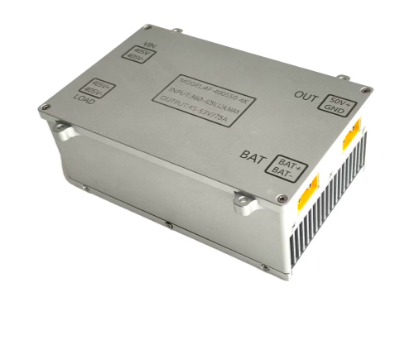

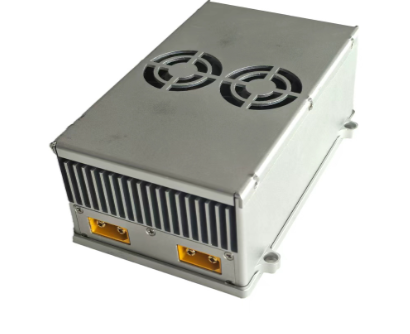

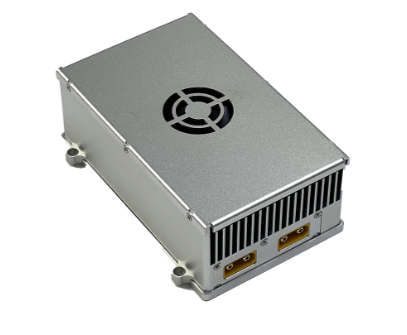

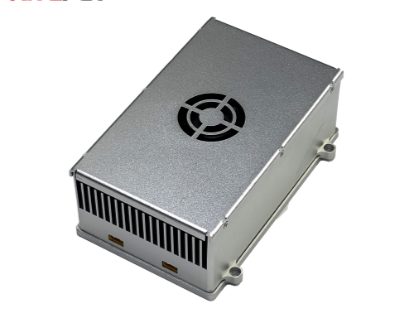

AF-400S50-4K Power Supply

$1,430.00
AF-400S50-4K

Order ships in 30~40days business days.

Checkout Securely with

American Express
Diners Club
Discover
Google Pay
JCB
Maestro
Mastercard
PayPal
Union Pay
Visa

Customers who can not place an order please contact us;

Tag : drone power supply , Power Supply

1. Overview

This power supply adopts the latest soft-switching technology and operates in an open-loop mode, with an input-output ratio of 8:1. It is equipped with input over-voltage and under-voltage protection, as well as output over-voltage and over-current protection. Additionally, it features a compact size, light weight, and waterproof function (IP65), making it widely applicable to devices such as unmanned aerial vehicles (UAVs). Its characteristics are as follows:
  1. Long service life, fast dynamic response, and high efficiency;
  2. Seamless switching with batteries, no voltage transient drop;
  3. High-reliability modular design;
  4. Widely used as a power supply for tethered lighting UAVs.

1.1 Purpose

This power supply specification is for a customized power supply developed for design and development purposes. Its functions are:
  • Serving as the basis for design and development by the R&D department;
  • Serving as the basis for production and inspection by the production department;
  • Serving as the basis for inspection and qualification judgment by the quality department;
  • Serving as the basis for customers to select power supplies.

1.2 Scope of Application

This document specifies the specifications of the AF-400S50-4K power supply designed by our company. It can be used as the basis for production operations by the production and quality departments, and also as a reference for customers in selecting power supplies.

2. Functional Description

This document is the specification for the AF-400S50-4K power supply. It has a rated input range of 360-430Vdc, an output of 45-53.5Vdc/80A, a rated power of 3500W, and a peak power of 4300W. The power supply is equipped with output over-current protection, output short-circuit protection, output over-voltage protection, and over-temperature protection functions.

3. Operating Environment

Parameter Minimum Value Typical Value Maximum Value Unit Remarks/Conditions
Operating Temperature -40 - +55 Forced Air Cooling
Storage Temperature -55 25 +105
Relative Humidity 5 - 95 % No Condensation
Storage Humidity 5 - 95 % No Condensation
Atmospheric Pressure 54 - 106 kPa
Altitude - - 5000 m
Protection Class IP65

4. Electrical Characteristics

4.1 Basic Input Characteristics

Item Minimum Value Typical Value Maximum Value Unit Remarks/Conditions
Rated Input Voltage Range 360 400 430 Vdc Full Load Mode
Maximum Limit Input Voltage 410 415 450 Vdc The power supply will not be damaged under this condition
Maximum Input Current - - 11 A Vin=360Vdc, Output Rated Load
Input Inrush Current - - 50 A Vin=410Vdc, Output Full Load
Start-up with Load 360 400 430 V Rated Power Below 5A

4.2 Output Characteristics

4.2.1 Basic Output Characteristics

Item Minimum Value Typical Value Maximum Value Unit Remarks/Conditions
Output Voltage 1 Range 45 50 53.5 Vdc
OUT Load Regulation - - ±3 %
OUT Load Regulation - - ±5 %
Efficiency 97 98 98.3 % Input 380-420Vdc, Output Full Load
Ripple and Noise 350 - 430 mVp-p 20MHz Bandwidth Limitation
OUT Current - 70 80 A
Output Voltage Overshoot Amplitude - ±5 - %
Transient Overshoot Amplitude - ±5 - % Ta=25℃, 50%-75%-50%, di/dt=0.1A/µs Load Step Change
Transient Recovery Time - 200 - µs Ta=25℃, 50%-75%-50%, di/dt=0.1A/µs Load Step Change
Temperature Coefficient - ±0.02 - %/℃

4.2.2 Protection Characteristics

Item Minimum Value Typical Value Maximum Value Unit Remarks/Conditions
Input Over-Voltage Protection 455 460 465 V
Input Under-Voltage Protection 310 315 320 V
Output Over-Current Protection - 105 - A Locked, returns to normal after restart
Output Short-Circuit Protection Available - - - Locked, returns to normal after restart
Over-Temperature Protection Function Available - - - Self-recoverable
Power Supply Parallel Operation - Passive Current Sharing for Parallel Operation - -

4.3 Other Specifications

Item Requirement Remarks
Three-Prevention Design PCB Coated with Three-Prevention Paint
Heat Dissipation Forced Air Cooling
MTBF ≥100K H
Overall Weight ≤0.8 kg
Power Supply Indicator 2 Green LEDs Stay On During Operation, Turn Off Otherwise Built-in

5. Safety Specifications

Item Grade Standard (or Test Condition)
Insulation Withstand Voltage Input to Output 3000 Vdc No Breakdown, No Arcing. Test Condition: 5mA/min, Rise Rate 500V/s
Input to Earth 1500 Vdc No Breakdown, No Arcing. Test Condition: 5mA/min, Rise Rate 500V/s
Output to Earth 500 Vdc No Breakdown, No Arcing. Test Condition: 5mA/min, Rise Rate 500V/s
Insulation Resistance Input to Output ≥50 Under normal atmospheric pressure, relative humidity 90%, Test Voltage: 500Vdc
Input to Cabinet ≥50 Under normal atmospheric pressure, relative humidity 90%, Test Voltage: 500Vdc
Output to Cabinet ≥50 Under normal atmospheric pressure, relative humidity 90%, Test Voltage: 500Vdc

6. EMC Characteristics

Item Grade (Standard) Remarks (Index Requirement)
Surge IEC61000-4-5, LEVEL 3 Criterion see Note 1) A, Input Differential Mode: ±1kV, Common Mode: ±2kV, External Filter Circuit Required
EFT IEC61000-4-4 LEVEL 3 471KD14J Paralleled at Input End, Line-Line ±1KV, Line-Earth ±2KV. Criterion see Note B
ESD GB/T 17626.2-2006 Contact Discharge: ±6KV. Criterion see Note B
Air Discharge: ±8KV. Criterion see Note B
Conducted Emission (CE) EN55022 With EMC Filter, Class A
Radiated Emission (RE) EN55022 With EMC Filter, Class A

7. Wiring Diagram for Use

INPUT: High-Voltage Input, OUTPUT: High-Voltage DC Output, LOAD: Output Load, BAT: Battery

Bottom View

7.1 Definition of Input and Output Connectors

7.1.1 Input Matching Terminals
The input matching terminals are: AMS XT30U or XT30PW female sockets

Input Connector Diagram

7.1.2 Output Matching Terminals
The output matching terminals are: AMS XT90-F or XT90PW-F female sockets

Output Connector Diagram

8. Structure and Installation Dimensions

Overall Dimensions: 150mm106mm54mm; Installation Dimensions: 110mm*98mm, supported by hexagonal copper pillars
Unspecified Dimension Tolerance: ±0.3mm

9. User Instructions

Before using the product, please make sure to read the Warnings and Cautions section. Incorrect operation may cause damage to the power supply or accidents.

Warnings:

  • When the power is on, keep hands and face away from the product to avoid accidental injury.
  • Do not modify or disassemble the product by yourself, as this may damage the product or cause accidents.
  • There are high-voltage and high-temperature areas inside the product. Do not touch internal components to avoid electric shock or burns.

Cautions:

  • Ensure that the input/output terminals and signal terminals of the product are connected correctly in accordance with the product manual. Please cut off the input power when wiring. Use the power supply within the range of technical parameters; otherwise, it may cause damage to the product.
  • The risk of electric shock at the output terminal during product use must be considered, and it is necessary to ensure that end-users cannot access the product. Manufacturers of terminal equipment must design corresponding protection schemes to ensure that no danger is caused by engineers or tools accidentally touching the power supply terminals during operation.
