UAVMODEL

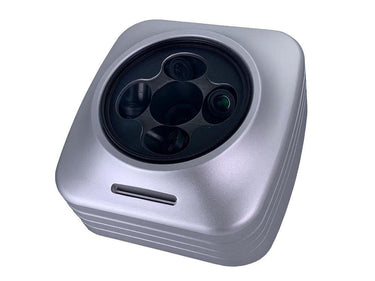

D2400W 5 camera SINGLE MAPPING CAMERA DJI PSDK PAYLOAD SYSTEM

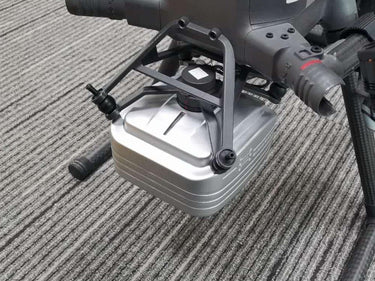

The D2400W five-lens camera is characterized by lightness, precision, intelligence and ease of use. It is a national patented product (patent number: 201921255998.3).D2400W is based on the ecological development of DJI UNMANNED aerial vehicle SDK and coordinated with DJI SKYPORT interface. It can be carried on DJI M300RTK, M210RTK and M200 industrial unmanned aerial vehicle, which is widely used in land planning, urban and rural construction, emergency rescue, urban comprehensive law enforcement, public security and frontier defense and other fields.

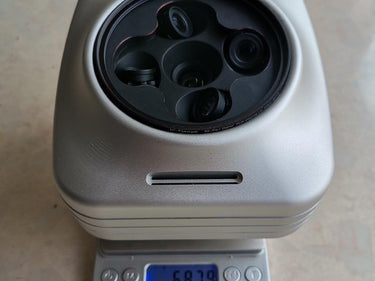

- The body is made of high-strength aluminum alloy, and the whole machine weighs 680g.
- Timesync technology is adopted to eliminate 100% ground control points.
- Original national patented precise measurement technology, the precision of the data results can reach 1 cm.
- Completely solve the problem of missing and missing pictures of tilt camera, with reliable and complete data.
- Fully automatic collection and sorting of original photos, light data processing.
- Fully compatible with BentleyCC, DJI map and other mainstream data processing software.
|
Optical parameters |
overall parameters |
||
|
Single lens pixel |
2430w |
total pixels |
1.21y |
|
Like yuan size |
3.92micron |
lens number |
5pcs |
|
Sensor size |
23.5*15.6mm |
Camera Weight |
680g |
|
Draw |
APS-C |
camera Size |
10.3*10.3*13mc |
|
Photographic resolution |
6000*4000 |
storage space |
320G |
|
shutter speed |
1/1000s |
Communication interface |
DJI SKYPORT |
|
Shutter release mode |
Flight control signal triggered |
Data interface |
TYPE-C |
|
shutter type |
Mechanical shutter |
Working temperature |
-20°~50° |
|
Steady beat interval |
≥0.8s |
Product material |
Whole body aluminium alloy |
|
lens focal length |
25mm+35mm |
Fit plane |
DJI M300RTK、M210RTK、M200 |
|
Characteristic parameters |
|||
|
Time synchronization algorithm |
Time Sync |
Mapping accuracy |
Meet the national 1:500 accuracy standard |
|
Anti - chip algorithm |
Instant Shot |
Earth station software |
DJI Pilot |
|
Camera repair algorithm |
Regular Repair |
Firmware upgrade mode |
Online upgrade |
|
Photo collection algorithm |
Auto Folder |
DJIWisdom figure |
Perfect support for direct processing of data, support CC |
|
Ground free phase control point |
100%免除 |
International certification |
Fcc、CE、ROSH |
