EV-PEAK 6S 14S 60A 3000W UD1 Charger

$621.00

Last 90 Days Sales: PCS

EVUD16S-C
Regional restrictions: Chinese standards

Order ships in 7~15days business days.

Secure Checkout & Bank Transfer

American Express
Diners Club
Google Pay
JCB
Maestro
Mastercard
PayPal
Union Pay
Visa
Generic

Customers who can not place an order please contact us;

Tag : Balance Charger , Balancing charger 6-14s , Battery Charger , UD1
Regional restrictions: Chinese standards

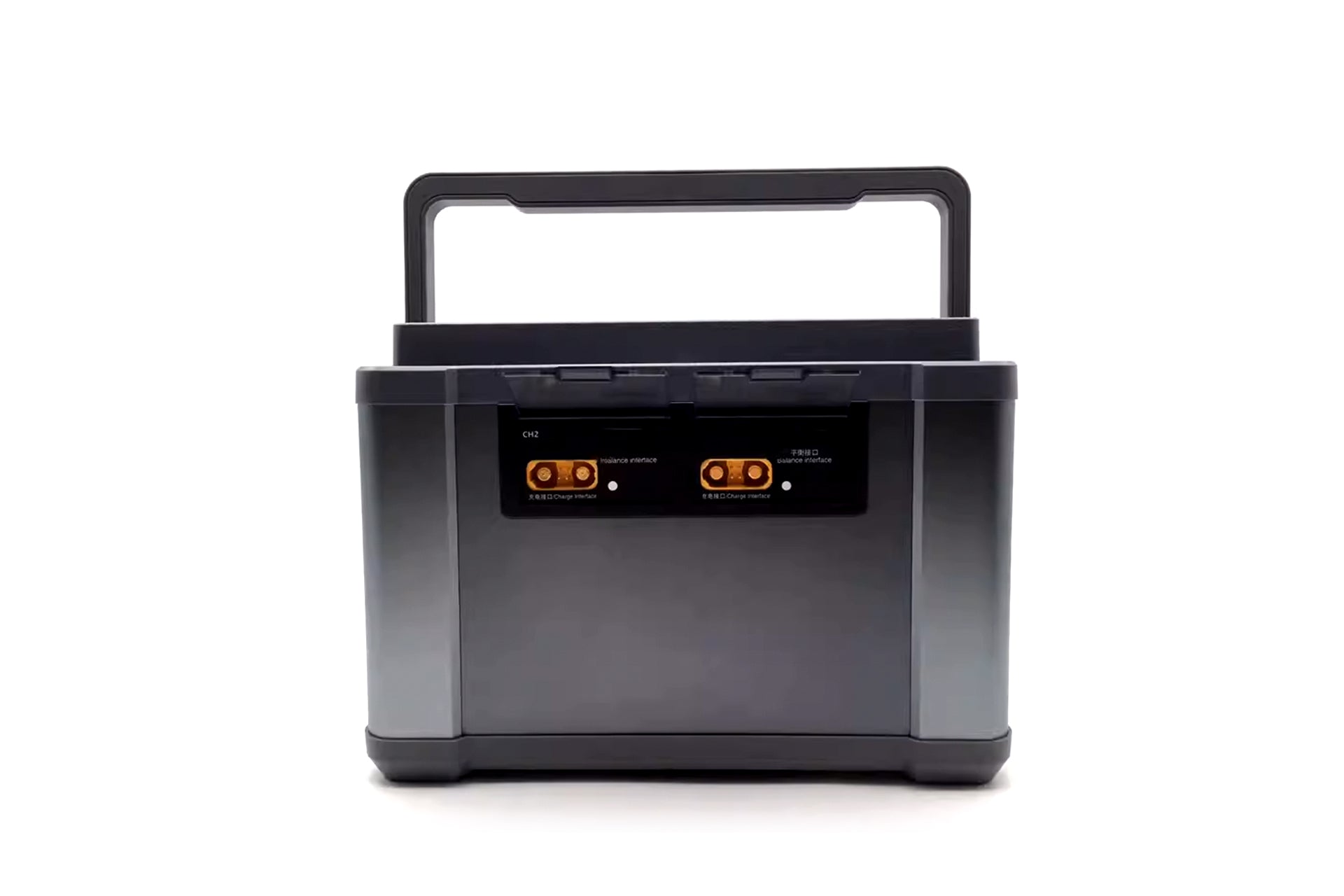

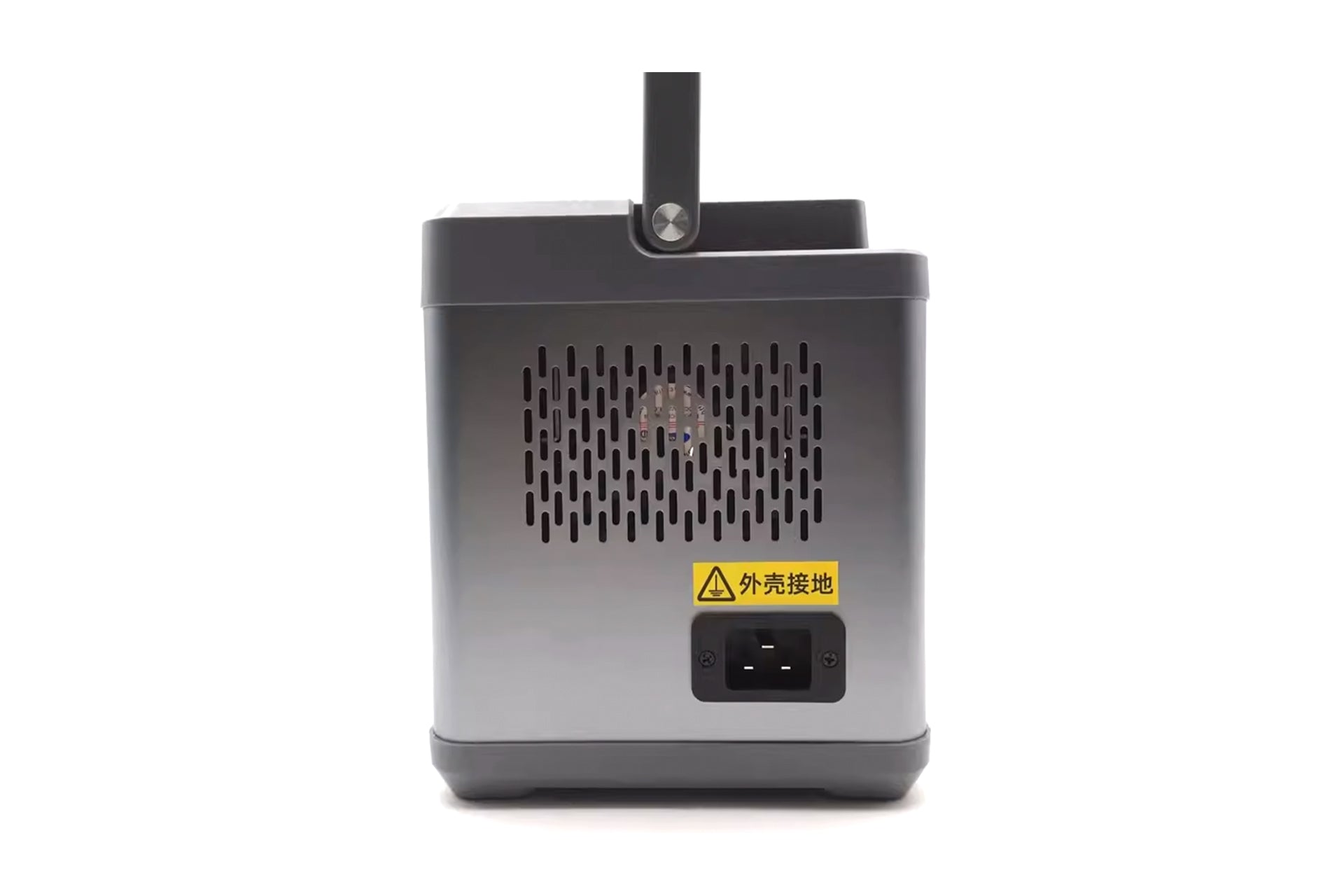

EV-PEAK UD1 Industrial Smart Battery Charger

4-Channel Independent

Charge 4 batteries at once


Ultra-Fast Charging

60A / 3000W max power


Multi-Protection

Overcharge / reverse / short circuit


Bluetooth Control

Remote monitoring via phone

EV-PEAK UD1 is an industrial smart battery charger specifically designed for agricultural spraying drones, and also suitable for RC, PPV, robotics, automotive, drones, helicopters, and large aircraft. It features 4 independent charging channels, allowing you to charge up to 4 batteries (6-14S compatible) simultaneously. With a maximum output power of 3000W and charging current up to 60A, it can fully charge a 22000mAh battery in just 15 minutes, dramatically improving operational efficiency.

The charger integrates wireless charging – simply place your device on top and charge without cables. It supports Bluetooth remote control via mobile app for monitoring and managing the charging process. Built-in voice broadcast provides real‑time announcements of battery current, voltage, and type (e.g., LiPo). Dual overcharge protection circuits are included on both sides, along with reverse polarity, short‑circuit, and other safety systems to extend battery life. The charging ports feature dust‑proof and splash‑proof plugs for enhanced durability. The intuitive display shows remaining time, battery level graph, temperature, voltage, and other key data. Lightweight and portable (6.6 kg), it works well at home, in the office, or out in the field.

4‑channel independent charging 60A / 3000W ultra‑fast charge Supports 6‑14S LiPo/LiHV/Smart Multi‑protection: overcharge, reverse, short circuit Bluetooth control + voice broadcast Wireless charging + dust/splash plugs
Note: Before use, confirm the battery type is LiPo / LiHV / Smart with 6‑14S cells. Ensure input voltage is within 100‑240V and use a grounded outlet.
Product Specifications
Output Power Max. 3000W
Charging Current Max. 60A
Discharge Power Max. 100W
Battery Types LiPo / LiHV / Smart
Balance Accuracy ±20mV
Cell Support 6‑14S
Dimensions 303 × 182 × 213 mm
Weight 6.6 KG
Frequently Asked Questions
Q1: When charging on all 4 channels, is the current for each battery independently adjustable?
The charger supports independent operation per channel, but the total maximum current is 60A. The system intelligently distributes current based on each battery's status to ensure safe and fast charging. You can also adjust settings via the Bluetooth app.
Q2: Are there strict placement requirements for the wireless charging function?
Simply place the device on the wireless charging area on top of the charger – no precise alignment needed. This function works with smart batteries or remote controls that support wireless charging.
Q3: Can Bluetooth remote control work without Wi-Fi or network at the job site?
Yes. Bluetooth is a direct connection and does not require the internet. As long as your phone is within range (about 10 meters), you can remotely monitor and control the charger – ideal for fields and remote areas.
Q4: Will fully charging a 22000mAh battery in just 15 minutes shorten its cycle life?
High‑power fast charging does generate more heat, but the charger features multiple protection circuits (over‑charge, over‑temperature, short‑circuit) and ±20mV balance accuracy to control cell voltage differences and temperature. We recommend using smart batteries and avoiding continuous high‑current fast‑charging in excessively high ambient temperatures to balance efficiency and longevity.
Q5: What electrical requirements should be considered when running multiple chargers simultaneously for a business?
Each charger draws a maximum of 3000W (about 13.6A at 220V). When using multiple units, ensure the power supply lines can handle the total load. We recommend dedicated circuit breakers per charger and avoid sharing thin extension cords to prevent tripping or overheating.
Q6: Does the voice broadcast support multiple languages? Is there an alert for faults?
Currently, voice announcements are in English (e.g., battery current, voltage, type). When a reverse connection, over‑temperature, or charging fault occurs, the charger will give a voice warning and automatically stop charging to ensure safety.
Package Contents
EV-PEAK UD1 Smart Charger Unit × 1 AC Power Cord × 1 User Manual × 1
Note: Batteries are not included in the standard package; please purchase compatible batteries separately.
