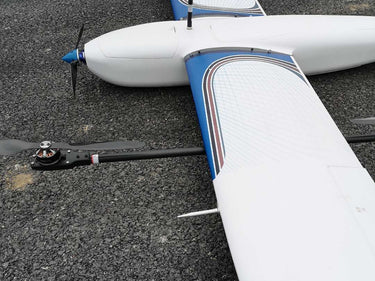

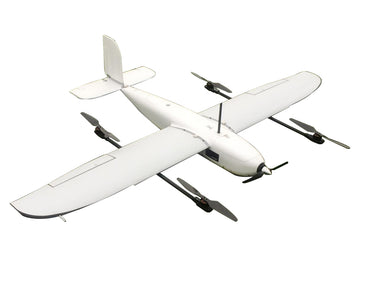

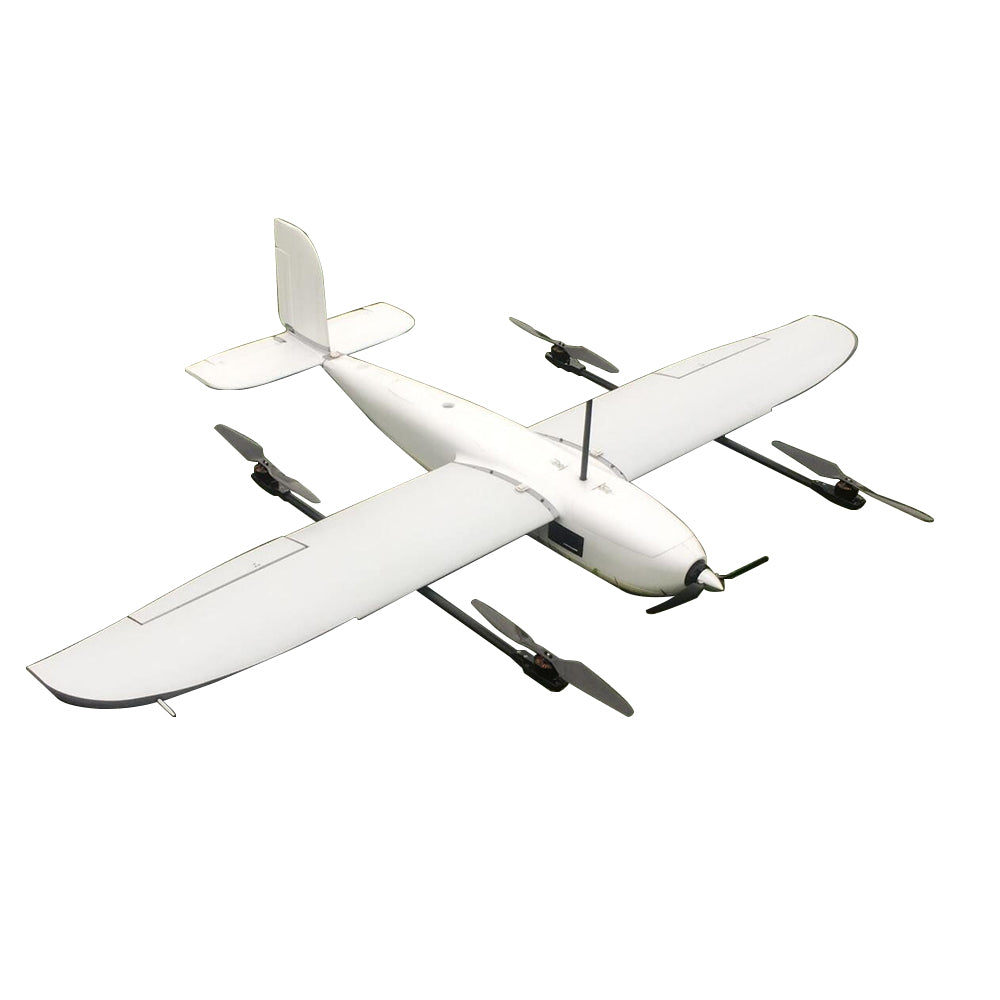

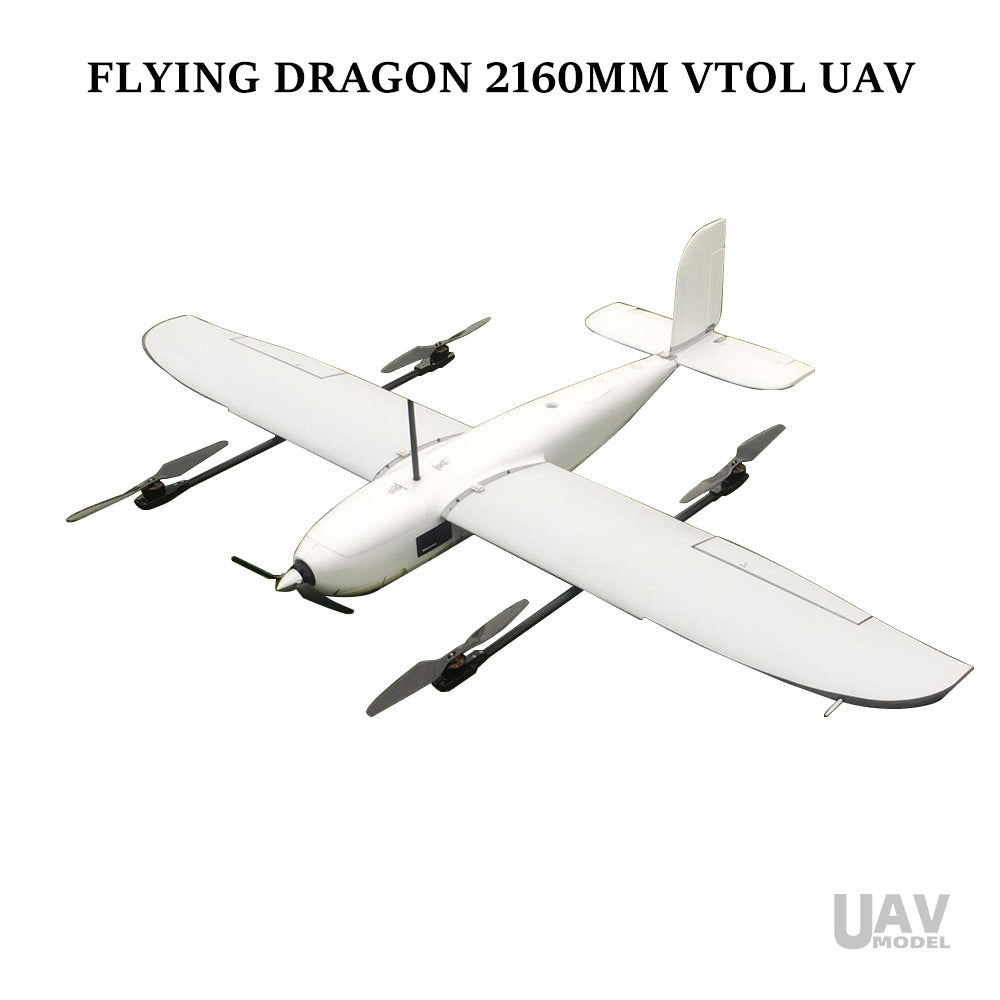

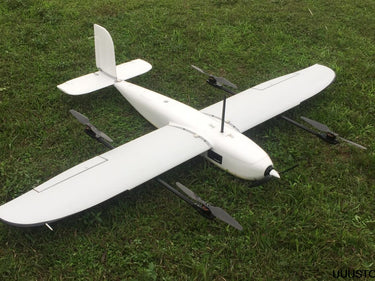

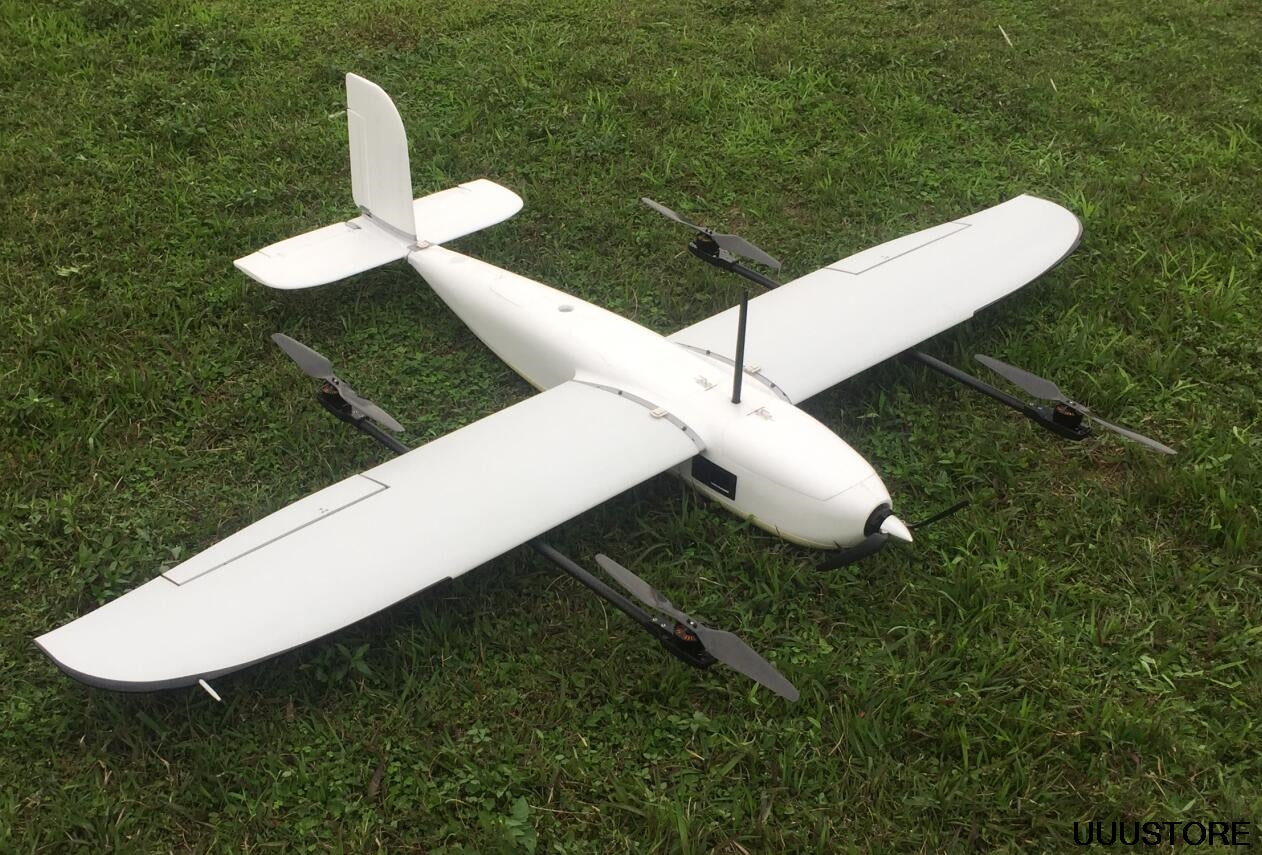

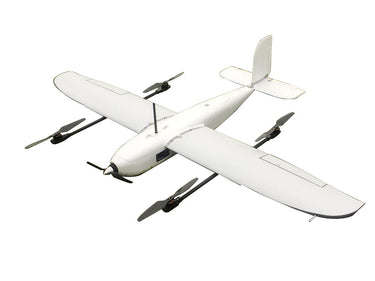

Flying Dragon 2160mm UAV VTOL

Flying Dragon 2160mm UAV VTOL army fixed wing large commercial drones


Description:

• Item Name: Flying Gragon
• Material: EPO

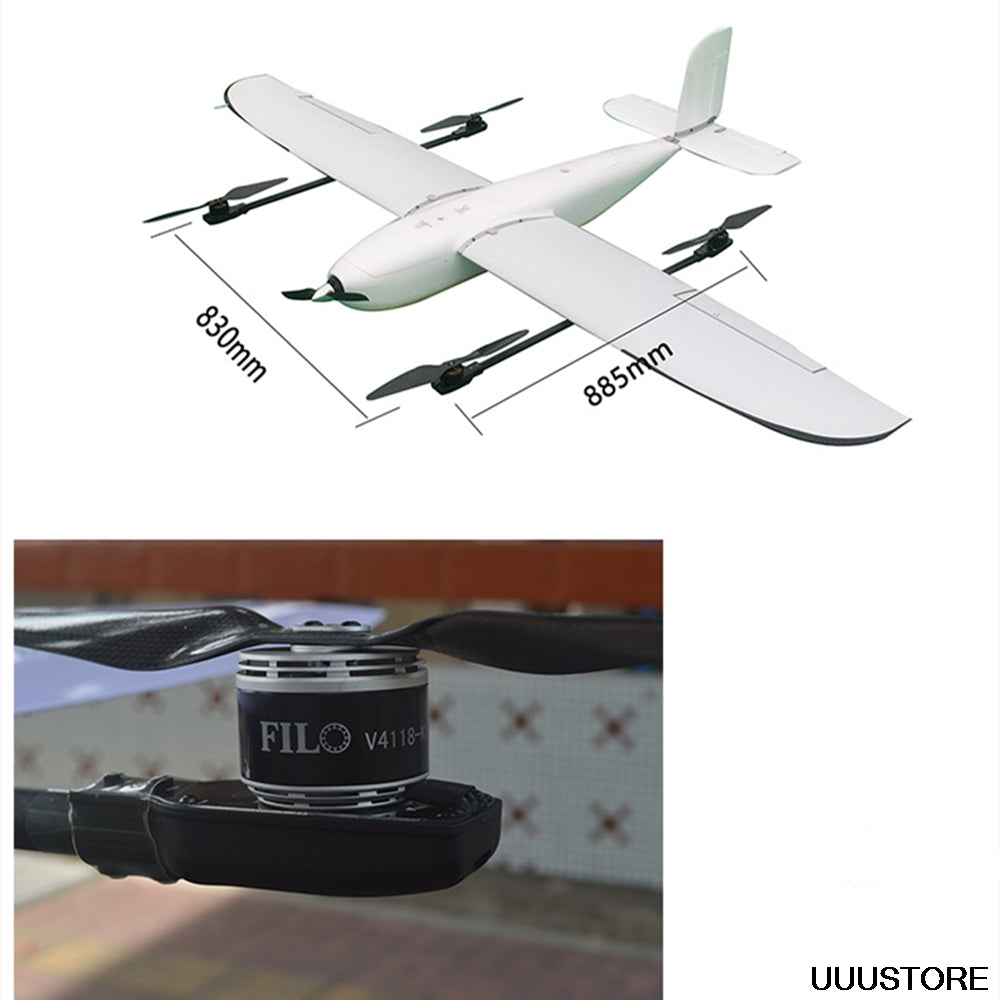

• Wingspan: 2160mm
• Length: 1200mm
• Wing Area: 60dm
• Max. Flying Weight: 6-8kg
• Economic Flight Speed: 15-22m/s
• Flying Time: 80-120Minute
• Camera Cabin Dimension: 150x90x250mm
• Camera Cabin Cover Opening Width: 130mm
• Parachute Cabin Load: Can accommodate 6-8 kg parachute (not included)

Recommended Parts For Flying Dragon 4+1 Engine Version (not included):

• VTOL Motor: 4114/5010 KV420 x4
• Front pull Motor:4120 KV430 x1
• VTOL ESC: Hobbywing Pentium 40A x4
• Front pull ESC:Hobbywing Pentium 80A x1
• Servo: Emax 3054 *4pcs
• VTOL Propeller: 1555 Folding paddle  x4
• Front pull Propeller:16*8 x1
• Battery: 6S 22.2V 10000mAh ~ 22000mAh LiPo
• Charger: SkyRC Balance Charger
• Radio System: 2.4G 6CH

Features:

• EPO material,lightweight and durable.
• Quick disassembly design,extremely convenient to disassemble and carry.
• Single engine or twin engine switchable, one airplane,two kinds of fun.
• Twin engine version is suitable for FPV flight Aerial Survey .
• With laminate reinforcement design on the opening of the nose.
• The wing is straight and has no protrusions,easy to stick the covering film.
• High-power integrated plug, no need to plug in and remove the plug.
• Tail rudder surface is directly driven by the servo mounted on the fuselage, eliminating the push rod and the connecting cable, convenient to disassemb and install.
• vtol fixed wing
• Note: KIT version, all the electronic devices are not included.

KIT Version Package Included:

• 1x Flying Dragon 2160mm 4+1 Version FPV RC Airplane KIT

PNP Version Package Included:

• 1x Flying Dragon 2160mm 4+1 Version FPV RC Airplane KIT
• 4 x 5010 Motor
• 4 x 1555 propeller
• 4 x 60A ESC
• 4 x 17G Servo
• 1 x 4120 motor
• 1 x 16 inch propeller
• 1 x 80A ESC
• 1 x airspeed tube
• 4 x CNC module
• 1 x bag
