Product Information

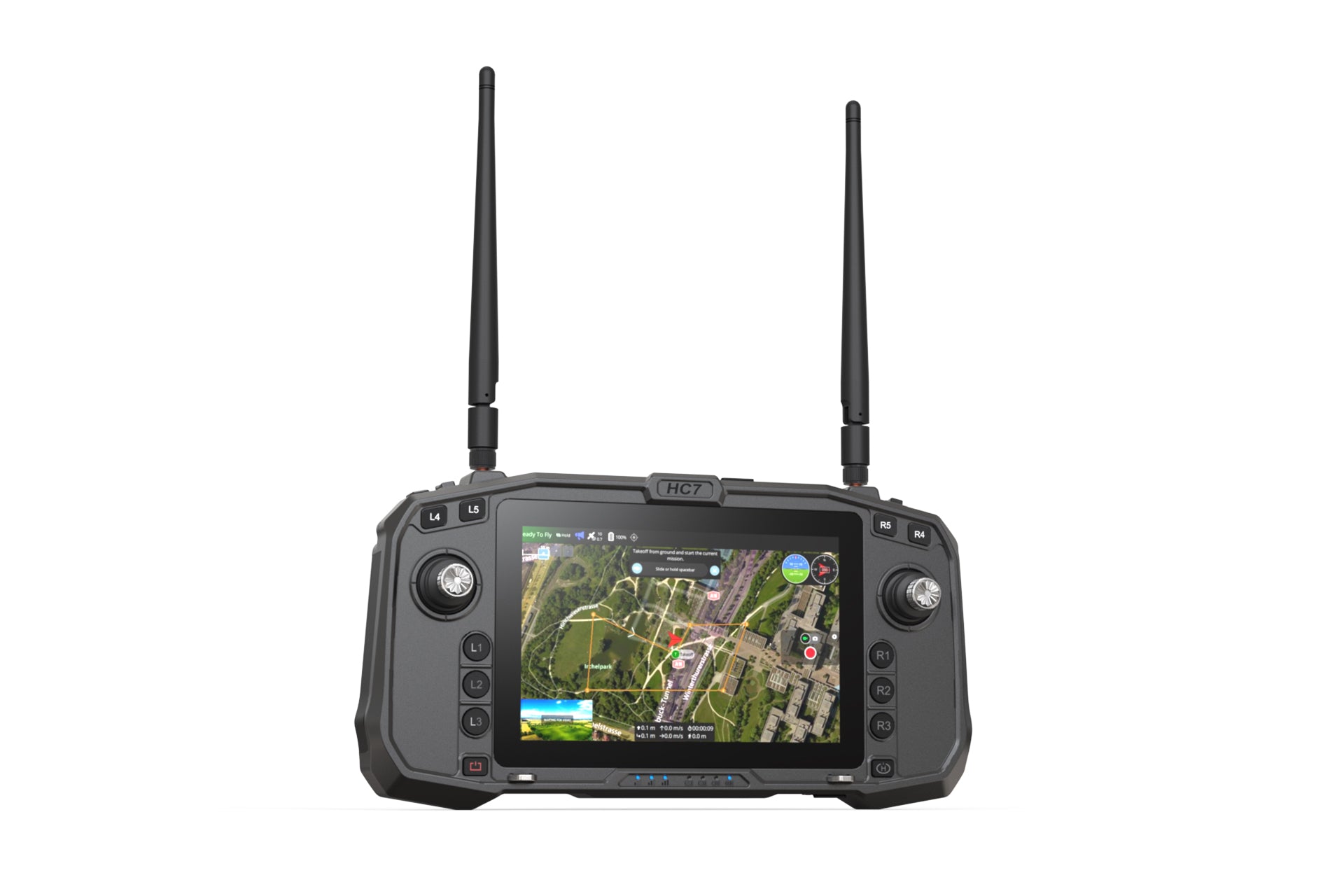

7-inch, Android, RK3588S motherboard, 8GB RAM + 128GB hard drive, 1500 brightness
The HC7 is a highly domestically produced handheld Android ground station that integrates graphics and CNC. Equipped with the Rockchip RK3588S high-performance 8-core processor, built on an advanced 8nm process and featuring a built-in neural network processor, it boasts a computing power of up to 6.0 TOPS, easily handling a variety of complex scenarios.
The HC7 features a 7-inch 1920*1200 resolution, 1500nit brightness, a high-intensity, visible display, a high-precision and durable industrial Hall effect linkage, and a long-life imported battery pack, ensuring up to 8 hours of battery life.
The HC7 supports a built-in HA series image transmission link or connects to third-party image transmission links via an air plug, enabling simultaneous device remote control, gimbal control, and image and data transmission.
The HC7 is suitable for wireless control of drones, robot dogs, unmanned vehicles, unmanned ships, industrial robots, large machinery, and other products.
Works in 800MHZ, 1.4GHz, and 2.4GHz frequency bands. Can provide stable data transmission at a distance of 3~30km according to different versions and environments. Has strong anti-interference ability and a delay of ≤300ms.
| Technical Parameters | ||
| Physical Channel | 21 ports (2 main joysticks, 13 buttons, 2 three-position switches, 2 thumbsticks) | |

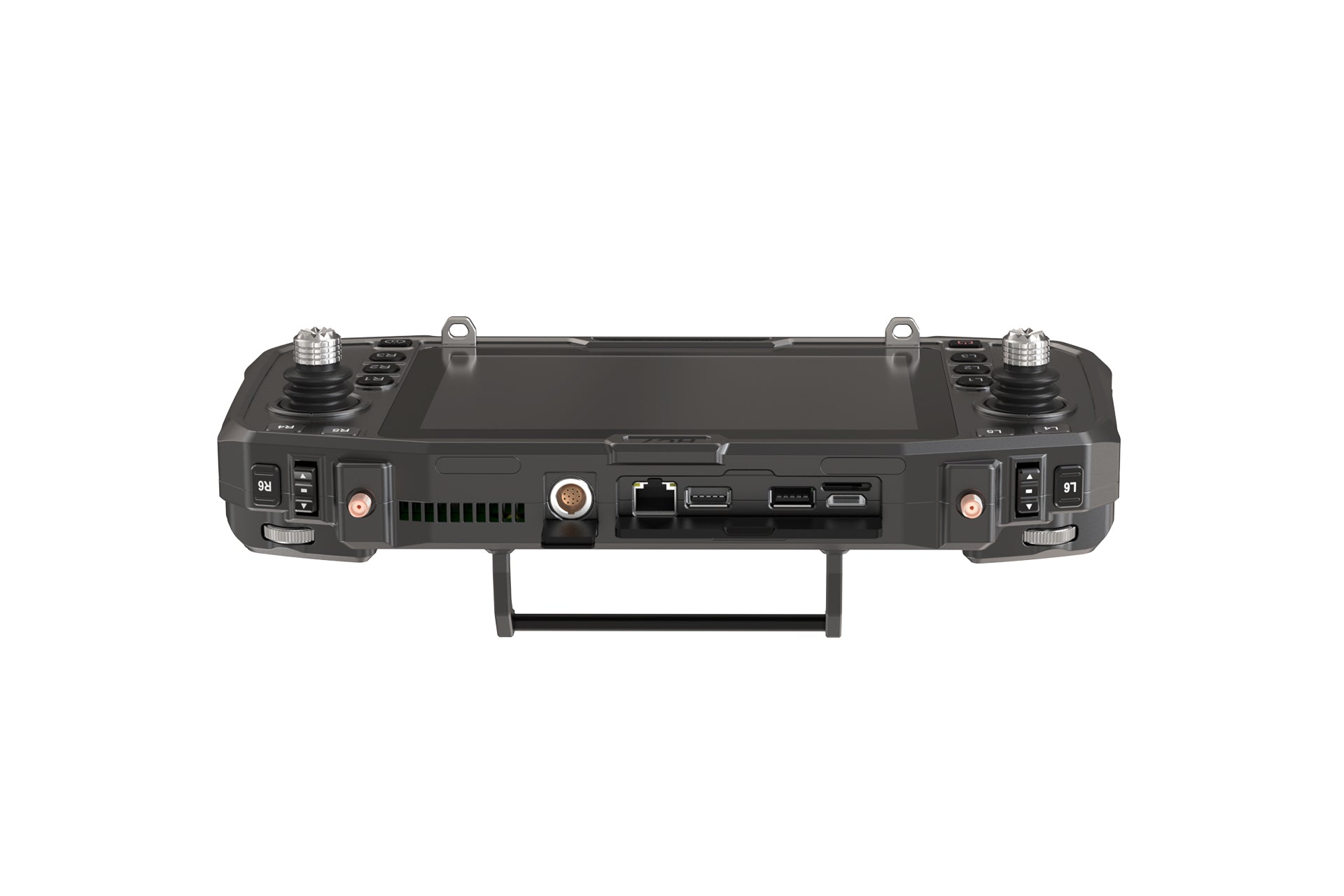

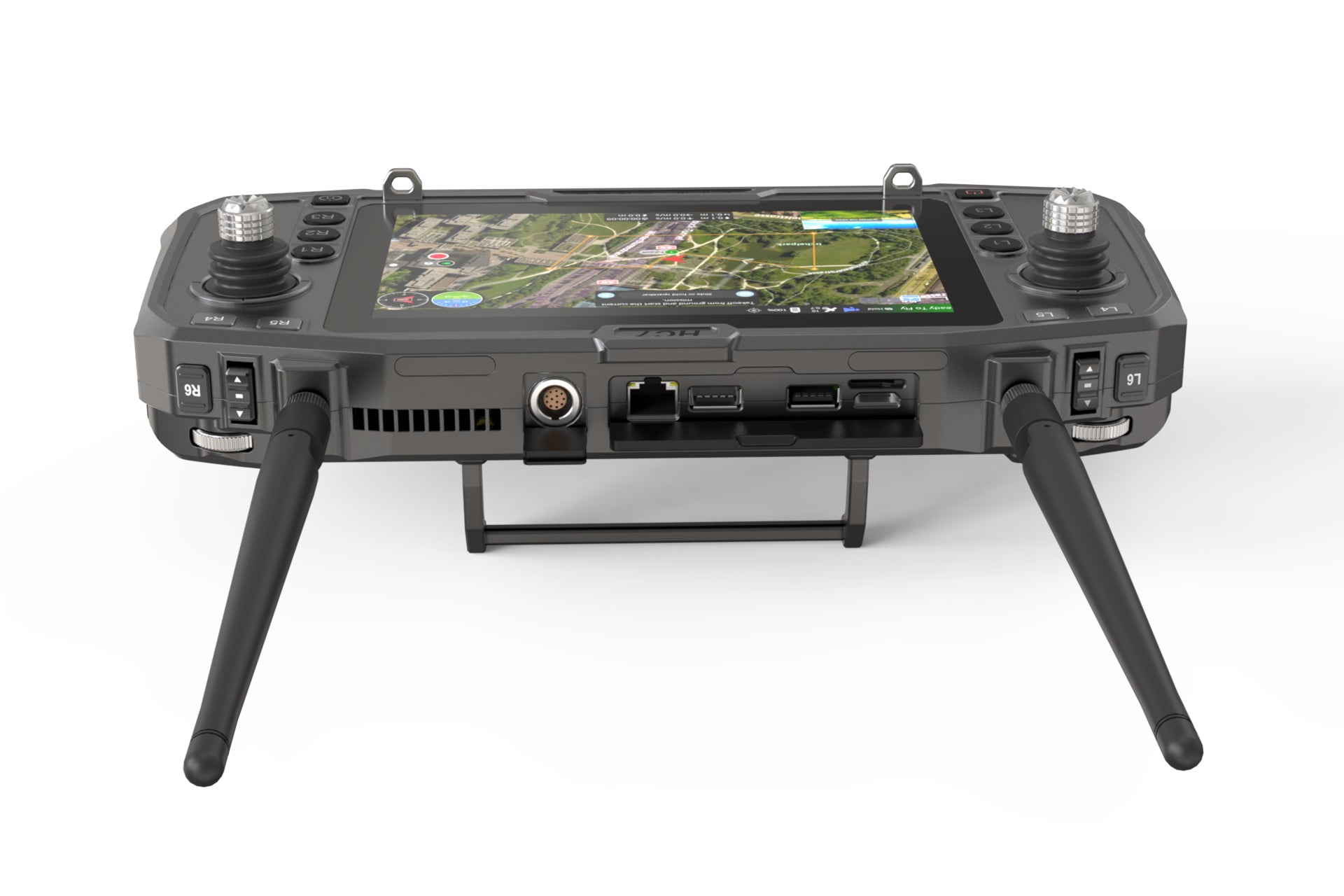

| External Interface | 1*RJ45、1*U5B2.D、1*U5B(OTG)、1*HMDIOUT | |
| Remote Control Function | Independent dual 5BU5 auxiliary outputs | |
| Operating System | Android 12/Linux/Ubuntu 2D.D4 | |
| Processor (CPU) | RK35885 (Bnm LPP process) ARM 8-bit 64-bit processor, up to 2.4GHz | |
| Graphics Processing Unit (GPU) | Mali-G61D GPU, MP4 quad-core | |
| Neural Network Processing Unit (NPU) | Supports AI development tools, AI computing performance up to 6TOP5 | |
| Display | 7-inch 16:1D display, 192Dx12DD resolution, up to 15DD nits scannable | |
| Memory | DDR4 8GB (standard), customizable to 16G/32G | |
| Storage | 12GB (standard) TF card slot, customizable to 255GB | |
| Network | Ethernet, WiFi, Bluetooth | |
| Battery Capacity | 1D5DDmAh 12.6V | |
| Battery Life | Fully charged in approximately 8 hours (excluding internal power supply). | |
| Charging Port | Type-C 65W fast charging (full in approximately 3 hours). Can be powered from an external power source. | |
| Dimensions | 29Dmm (L) * 152mm (W) * 43mm (H) (excluding antennas). | |
| Product Quality | 15DDg | |
| Operating Temperature | -2D~+6D℃ | |
| Protection Features | IP53 | |
| Flight Plug Port |
1B 12-core (1x LAN, 2x 5UB5 OUT, 2x R232) 1B 4-core (1x LAN, 2x 5UB5 OUT/IN, 2x R232) |
|
| External Link | Can be used with an external HA series video transmission link or a third-party video transmission link | |
| Product Selection (Ground Terminal Built-in) |
HC7N (no link) HC7-HA12-5km (ground-ground) HC7-HA12-1Dkm (ground-ground) HC7-HA1D-15km (ground-air) HC7-HA12-2Dkm (ground-air) HC7-HA12-3Dkm (ground-air) HC7-HA13-15km (ground-air) Distances over 5Dkm require an external adapter |
|
