HENGE 4A UBEC ELECTRONICS
Couldn't load pickup availability

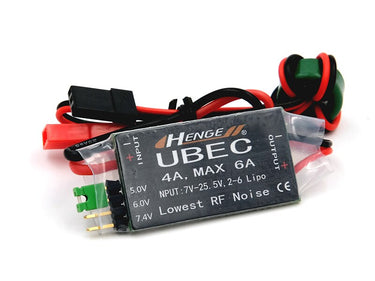

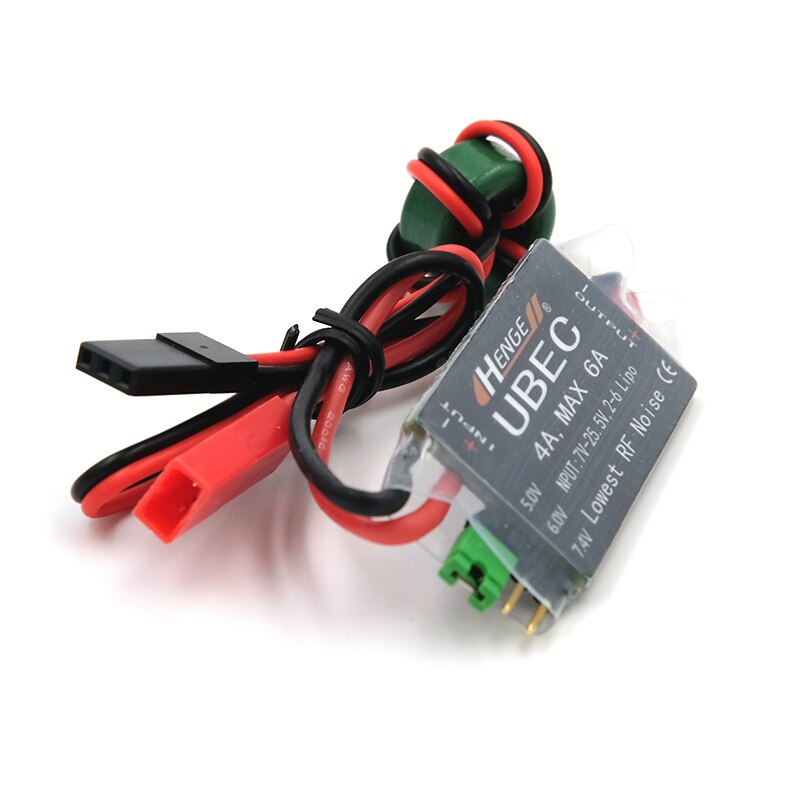

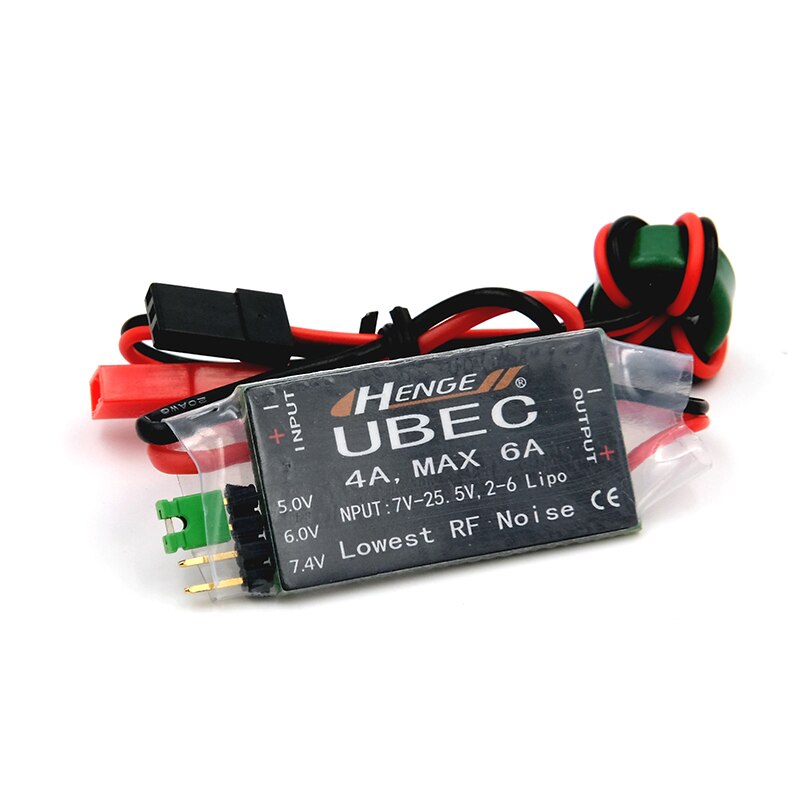

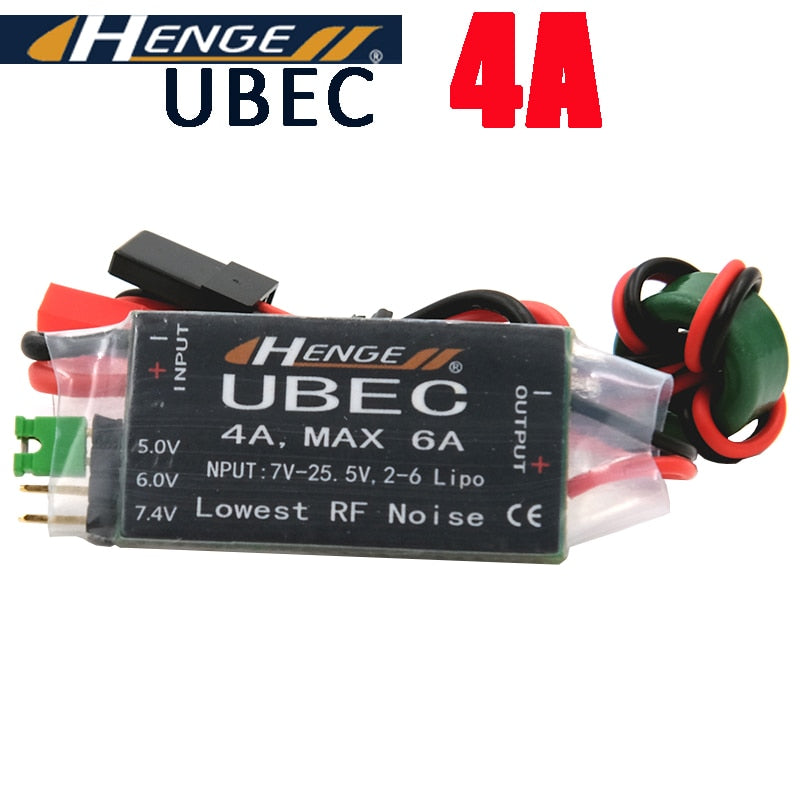

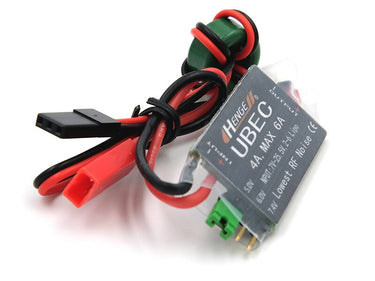

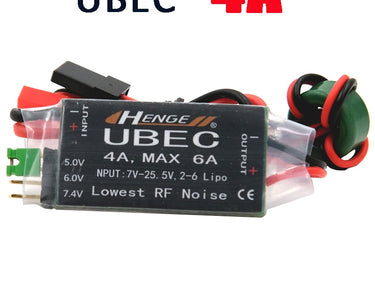

HENGE 4A UBEC Input 7V-25.5V 2-6S Lipo Output 5V 6V / 4A Continuous Max 6A Switch Mode BEC for RC Quadcopter Airplanes Car Parts

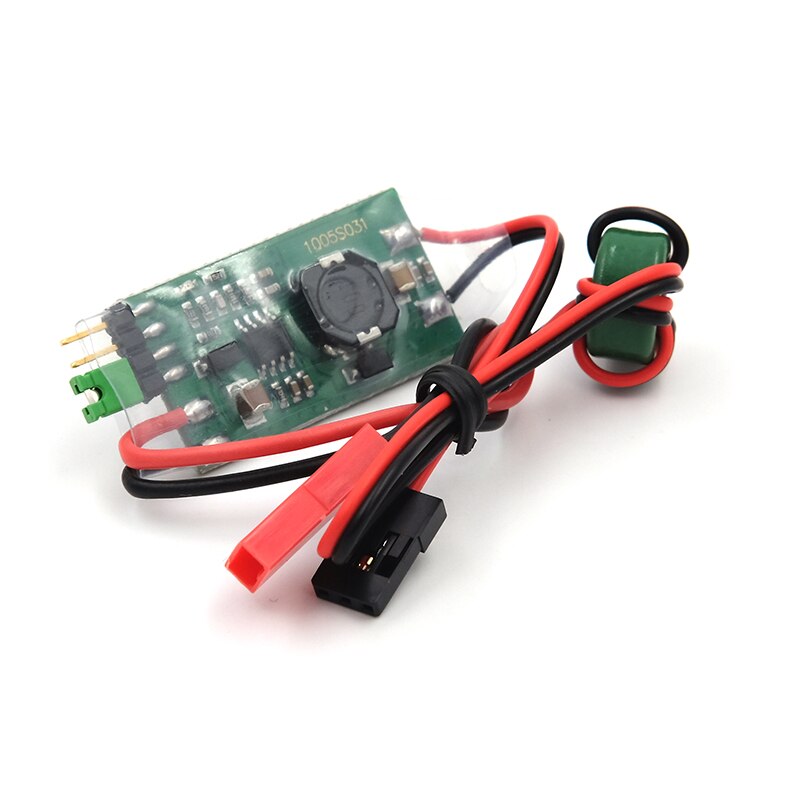

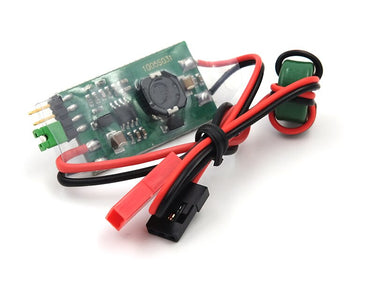

Switch Mode UBEC HENGE 5v/6v 4A/6A, 2-6S LIPO/ 6-16 cell Ni-Mh. Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93%.
Descriptions:
Brand Name: HENGE Item Name: 4A-UBEC Output Voltage:5V/4A or 6V/4A(Selectable by using a jumper connector) Input Voltage:7V-25.5V (2-6S Lipo or 5-18 cells NiMH /NiCd) Continuous output current: 4A Peak output current:6A(Less than 15 second) Ripple:less than 45mVp‐p(@2A/12V) Size: 35mmx20mmx5.8mm(L*WX*G) Weight: 14g
Note:
Even though 4A-UBEC was added Magnetic filter to reduce electromagnetic interference. electromagnetic interference is inevitable for switching type UBEC in sometimes. In order to receiver operating ,Please do not put Output filter magnet and MPU together.
Package Included:
1 x HENGE UBEC
