Hobbywing External 25A UBEC with metal case, adjustable output voltage, multiple connectors, and LED indicators for RC applications Hobbywing External 25A UBEC with metal case, adjustable output voltage, multiple connectors, and LED indicators for RC applications
1 3

UAVMODEL

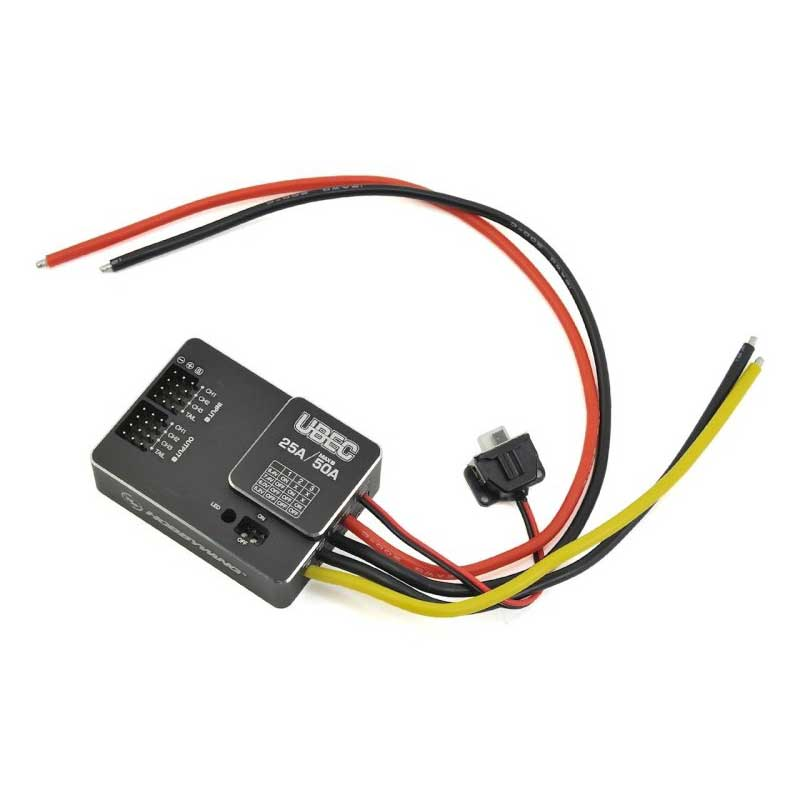

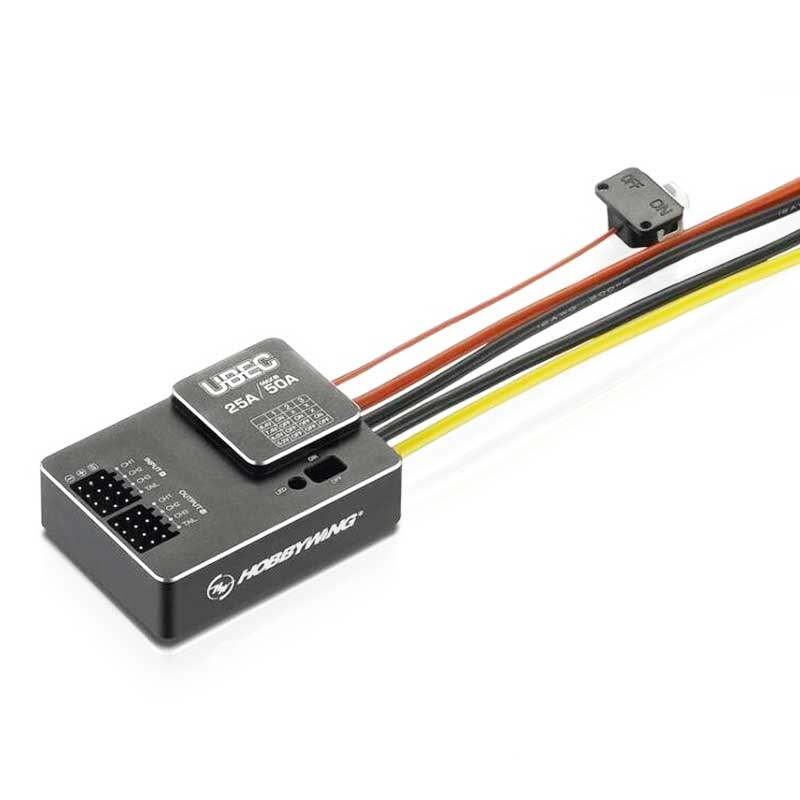

Hobbywing External 25A UBEC

$65.00
Shipping calculated at checkout.
HBW-25UB
TYPE: 25A UBEC

Expected delivery within 7-15 days after payment;

Customers who can not place an order please contact us;

Tag : 25A UBEC , Adjustable Voltage UBEC , Backup Power Supply , Electronic Components , External 25A UBEC , High Voltage UBEC , Hobbywing , Power Supply , UBEC
TYPE: 25A UBEC

Elegant Look & Powerful Core Component

Elegant metal case helps dissipate heat and reduce electromagnetic interference. High-efficient DC-DC voltage-regulating chip pairs with the specially designed circuit hardware for the conversion efficiency of over 90%. Continuous current of 25A (w/ peak current of up to 50A) meets various application requirements.

Various Functions & Different Applications

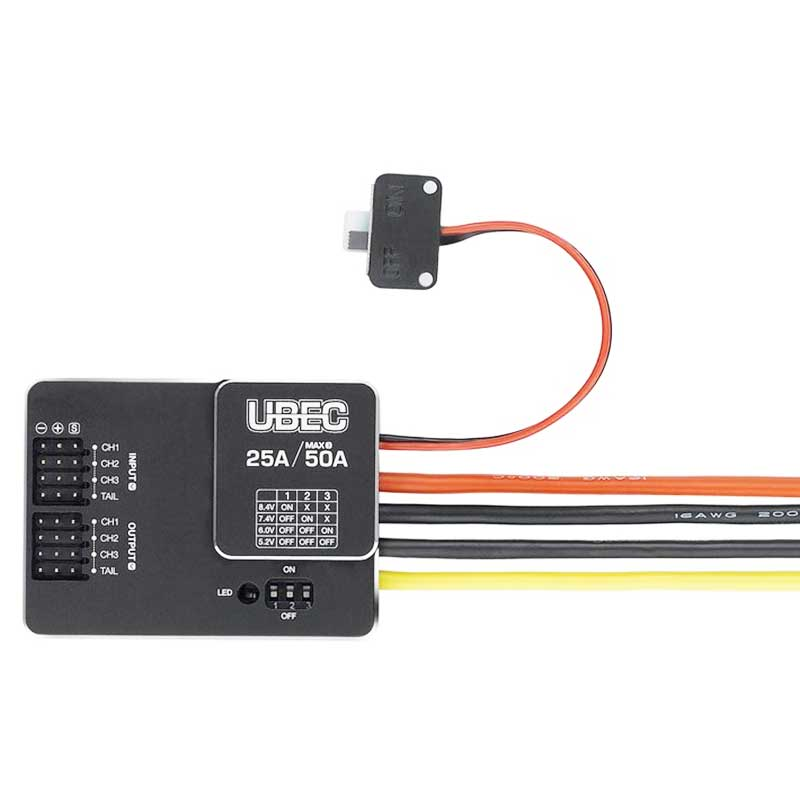

External switch allows users to easily switch on/off the UBEC. Wide voltage range allows the main power supply ranges from 3S to 18S LiPo to be connected to the UBEC. Output voltage adjustable between 5.0V, 6.0V, 7.4V and 8.4Vmeets different voltage requirements. Up to 8 channels of outputs (in parallel) can endure higher current. And the internal LED indicators can indicate the working status or abnormalities of the UBEC.

Multiple Protections

UBEC shoot-through protection, which prevents the voltage of the main power supply from directly flowing to the output end of the UBEC and causing any damage to the connected electronic device when the UBEC is accidentally damaged, plus the protections
like over-current, (output end) short-circuit, overheat, low-voltage cutoff guarantee safety and reliability.

Backup Power Supply

Backup power supply switching-in function allows the electronic device connected to the UBEC to get power directly from the backup power supply to guarantee the continuation of the normal operation when the main power supply connected to the UBEC is damaged or the UBEC fails to function due to internal faults.

Product Name
Product Number
Type Linear Mode/Switch Mode

High Voltage/Regular
Specifications Cont./Peak Current

Input Voltage (of the Main Power Supply)

Input Voltage (of the Backup Power Supply)

Output Voltage
Wires & Connectors Input Wires



Output Wires



Input Connectors

Output Connectors
Size & Weight Size

Weight
Product Name UBEC 25A HV
Product Number 30606000
Type Linear Mode/Switch Mode

High Voltage/Regular
Switch mode

HV
Specifications Cont./Peak Current

Input Voltage (of the Main Power Supply)

Input Voltage (of the Backup Power Supply)

Output Voltage
25A/50A

3S~18S LiPo (/9V~80V)

1S~2S LiPo (/3-9V)

5.2V/6.0V/7.4V/8.4V Adjustable
Wires & Connectors

Input Wires






Output Wires



Input Connectors

Output Connectors

Main Power Supply: Red-16AWG-270mm*1/Black-16AWG-270mm*1
Backup Power Supply: Yellow-16AWG-150MM*1/Black-16AWG-150mm*1
3P Vertical Pin Header


(60-strand PVC Wire with Two 3P-JR Male Connectors-100mm*4 included)

No

No

Size & Weight Size

Weight
55x40.2x17.6mm

74g
