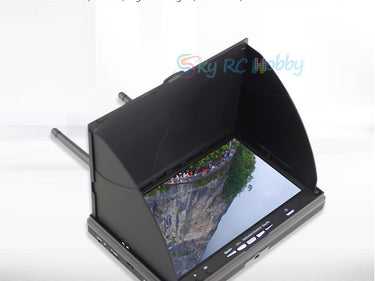

LCD5802D LCD5802S 5.8G 40CH 7 Inch MONITOR SCREEN

Out of stock
SKU: 46232200-lcd5802s-no-dvr-us
Regular price $72.99 美元
Color

Brand Name: SoloGood
Origin: CN(Origin)
Material: Composite Material
Tool Supplies: Battery
Upgrade Parts/Accessories: Adapter
RC Parts & Accs: Transmitters
Size: 180mm x 120mm x 50mm
Use: Vehicles & Remote Control Toys
Technical parameters: Value 2
Model Number: LCD5802D LCD5802S
Remote Control Peripherals/Devices: Battery
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate

tem Name: LCD5802D Monitor

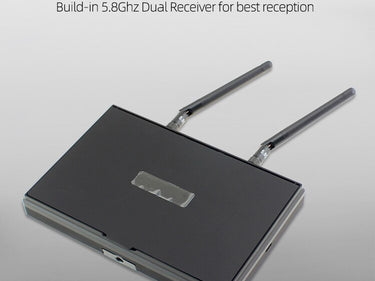

Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input

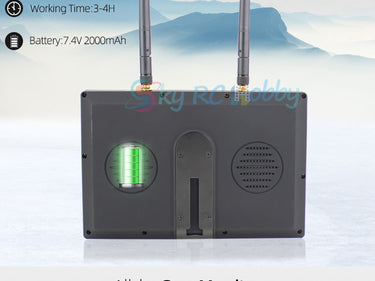

Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication

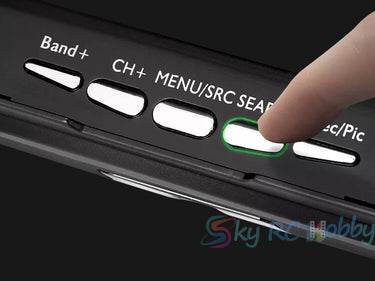

A key to automatic signal search
Support Chinese and English menu
Format: JPEG, AVI
Screen size:7”
Screen type:TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 600cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage: DC 7~16V
Power Consumption: max 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10℃~+ 65 ℃
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)
Support up to 32G , C10 SD Card.

Features:
With DVR function
Built-in Dual Receiver for best reception
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time. Before you use it, you should format your SD card to FAT32. There is a screen protector with H on screen, you can remove it

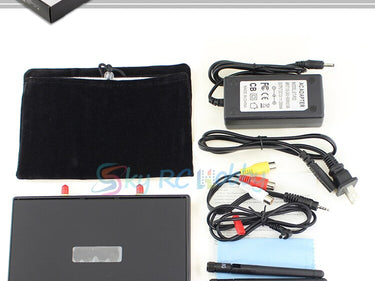

Package Included:
1 x 7" LCD Screen Receiver Monitor with built in Rechargable Battery
2 x 5.8G Antenna
1 x AV Cable
1 x Charge
