Description:

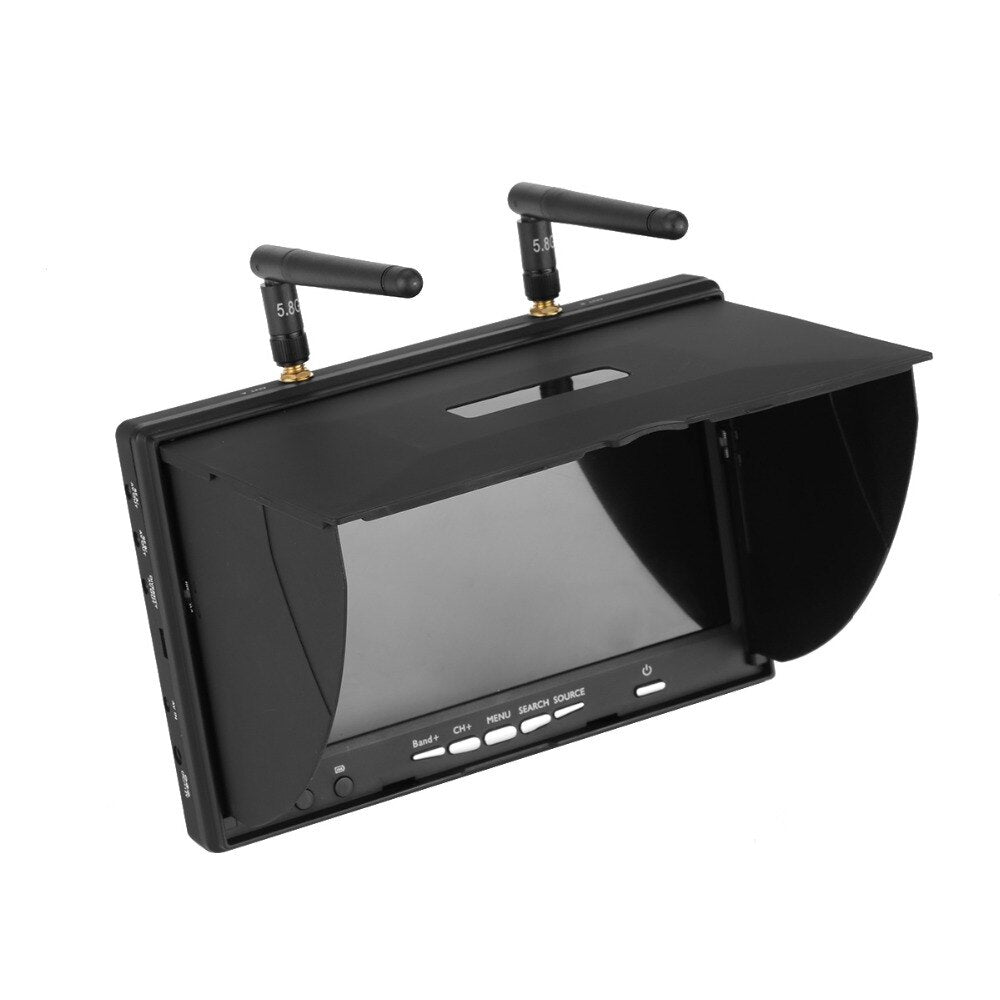

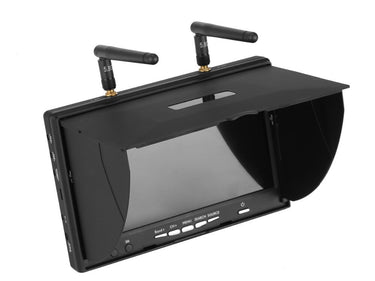

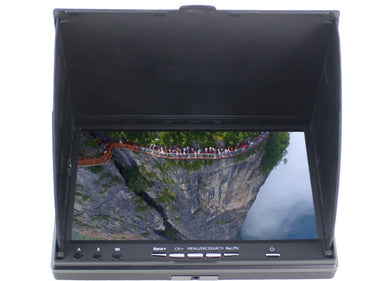

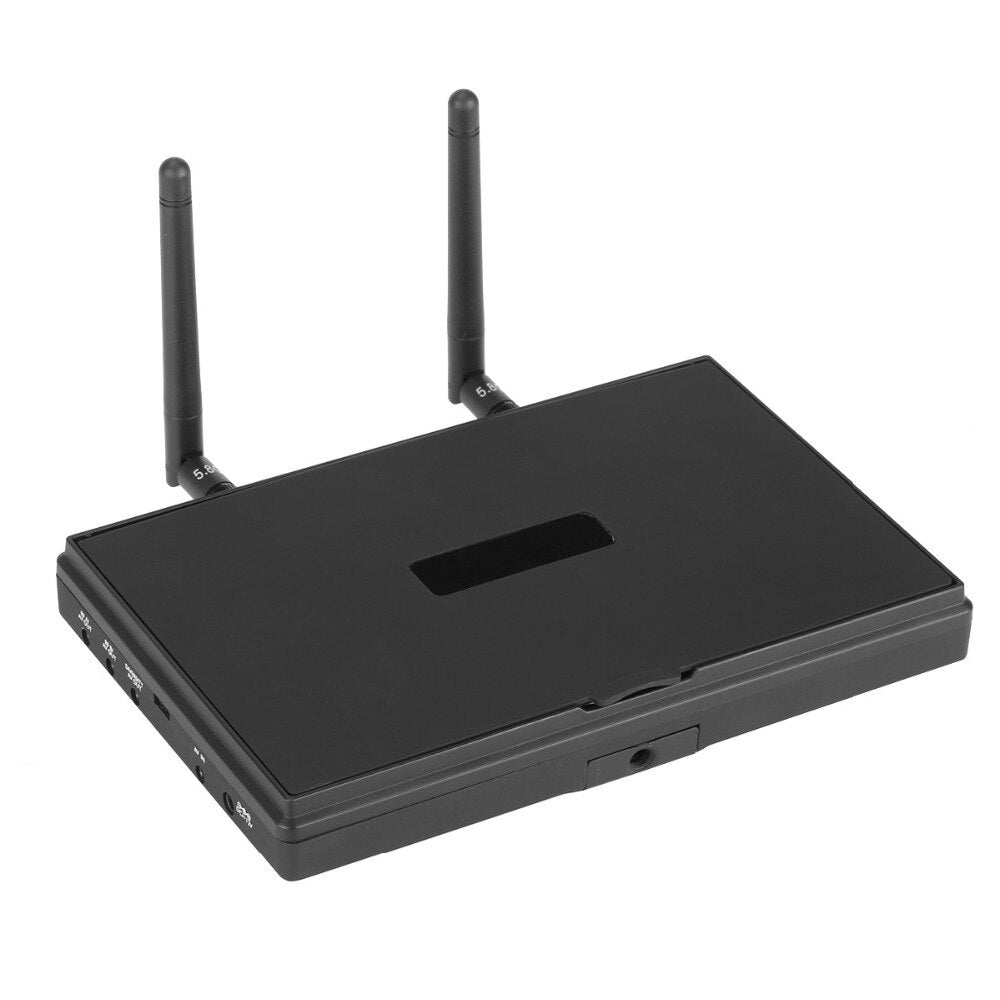

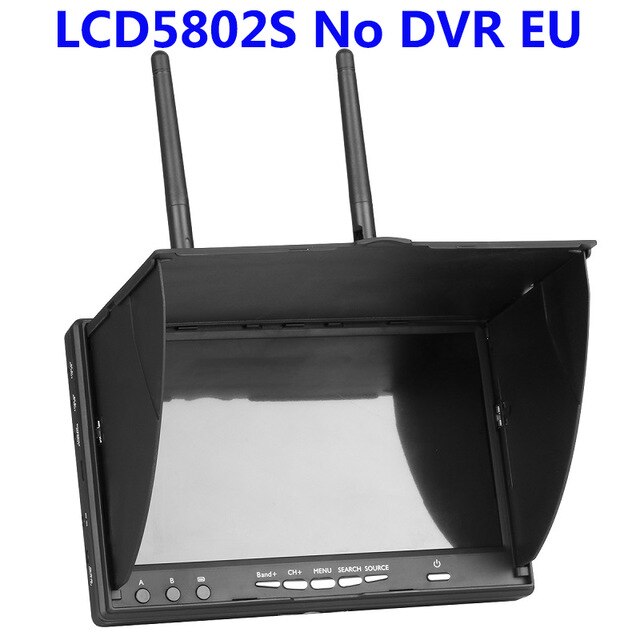

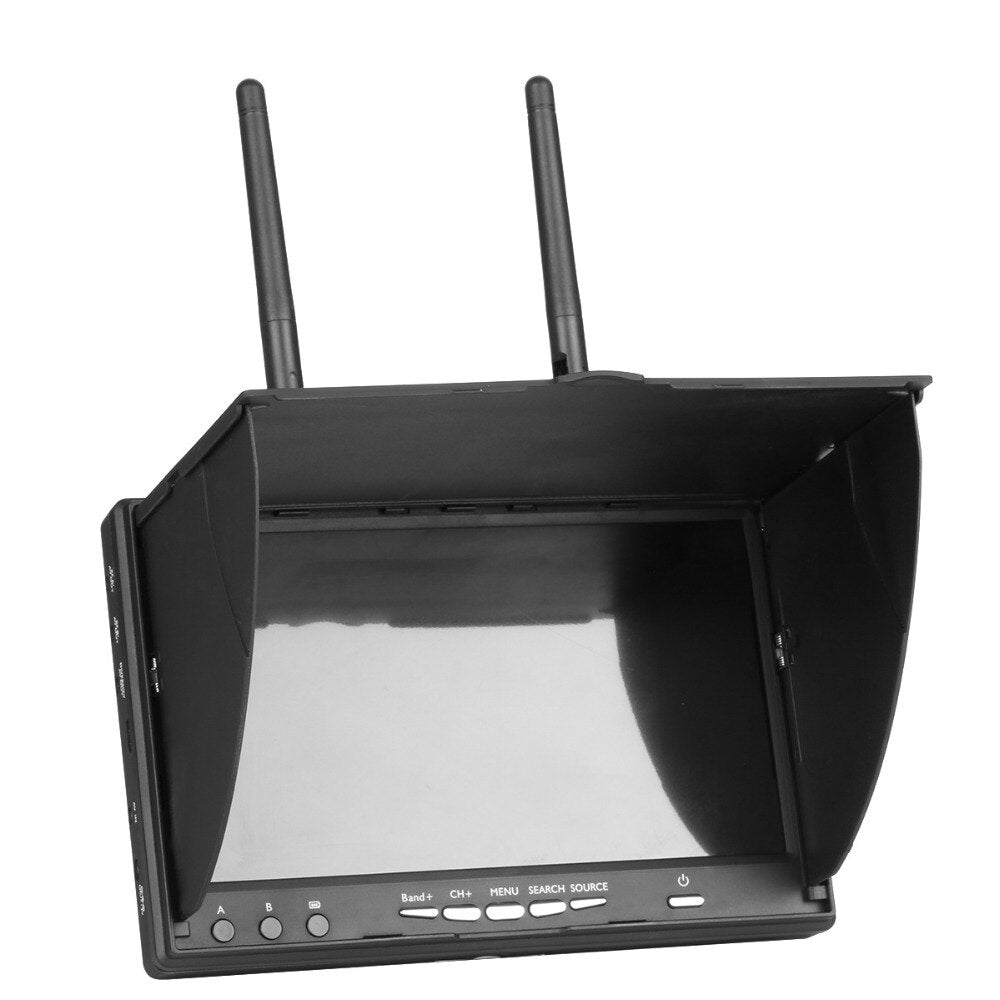

Item Name: LCD5802S Monitor(without DVR)  VS LCD5802D(with DVR)

Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery :  2000mAH/7.4V
Work status OSD display  :  RSSI indication ; Battery indicator ; Channel indication
A key to automatic signal search
Support Chinese and English menu
Format: JPEG, AVI
Screen size : 7”
Screen type : TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness :  600cd/m2
View Angle: 140/120degree (Horizontal/Vertical)

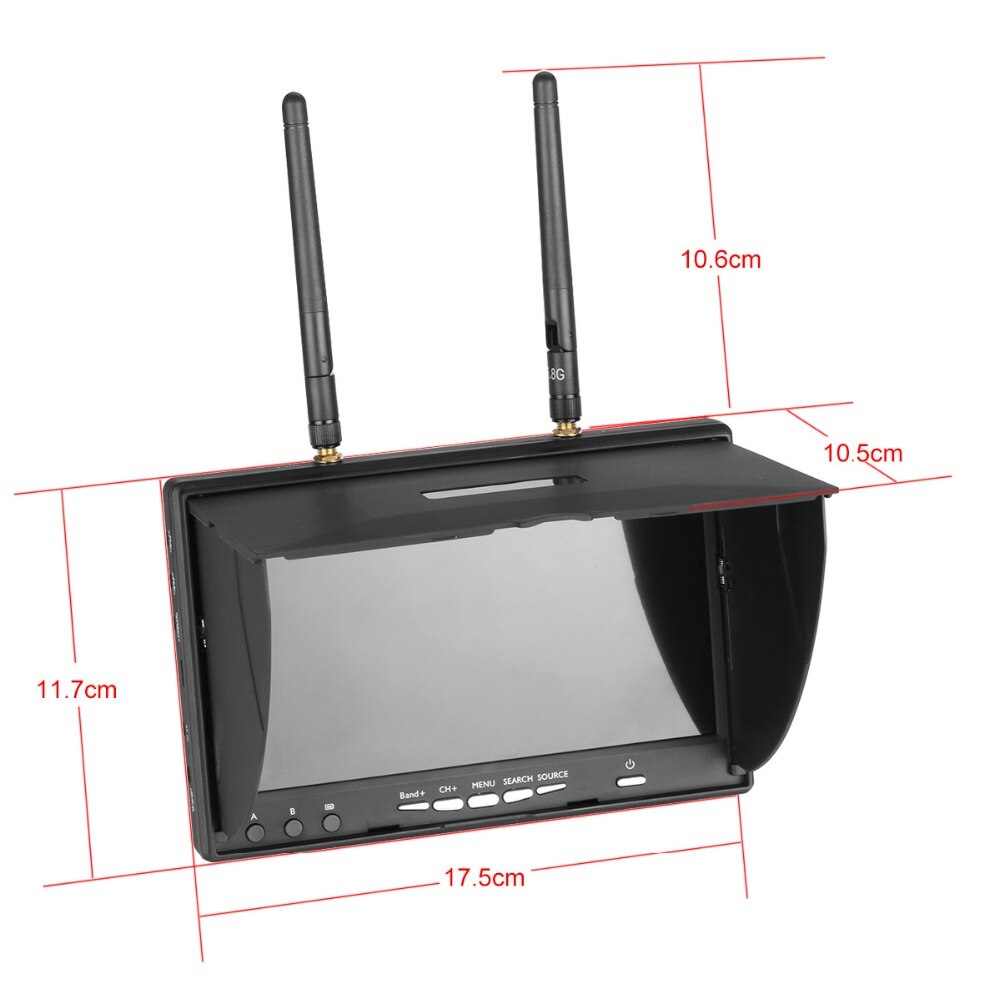

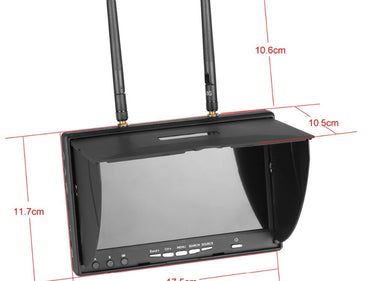

Size : 180mm x 120mm x 25mm ( Note : Sunshield height : 110mm )
Working Voltage:  DC 7~16V
Power Consumption :  max 650 mA @12V
Battery charging current  :  850mA @12V ( max )
Working temperature :  -10℃~+ 65 ℃
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)
Support up to 32G , C10 SD Card.

Plug :  US

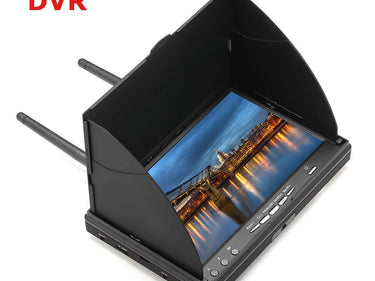

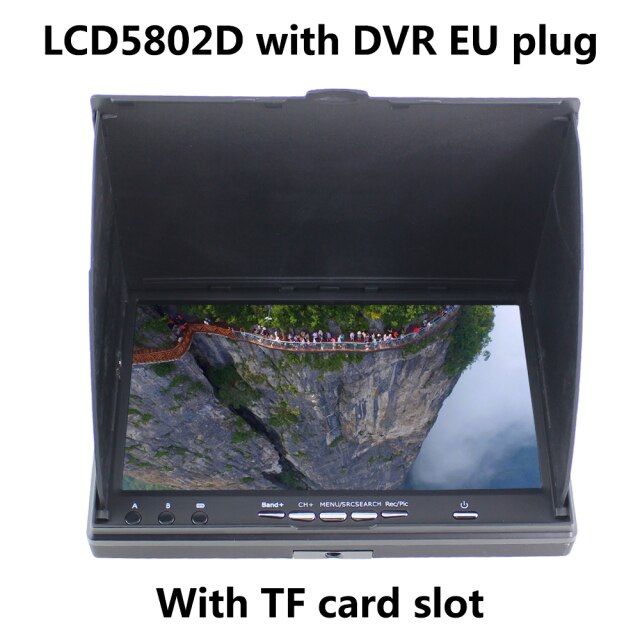

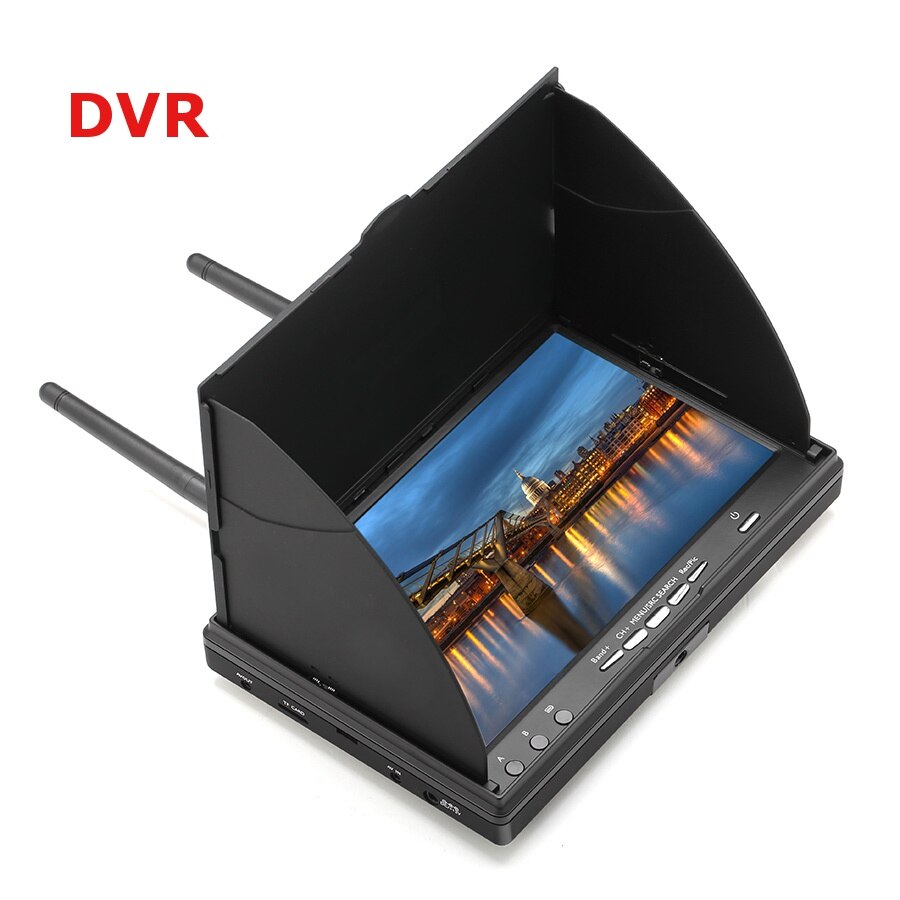

LCD5802D Features:
With DVR function
Built-in Dual Receiver for best reception
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search , Simple operation
Work status OSD display : Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time

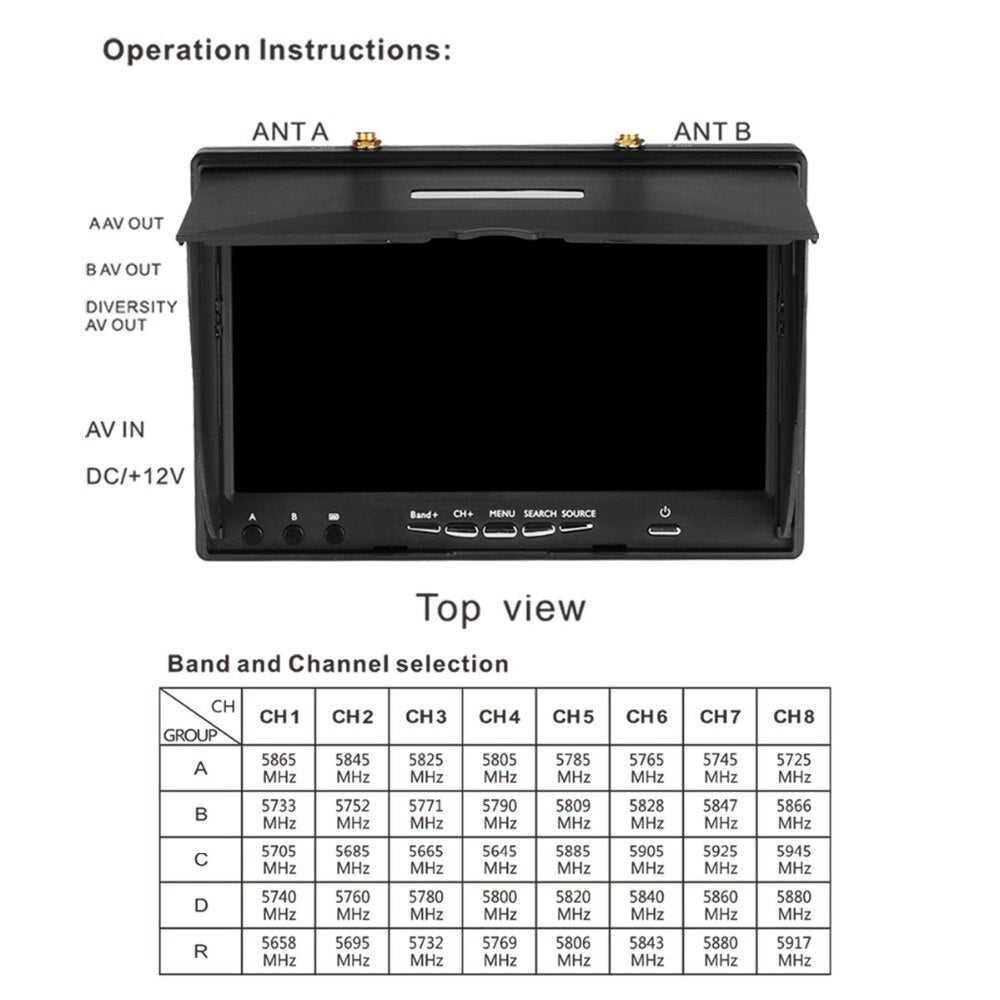

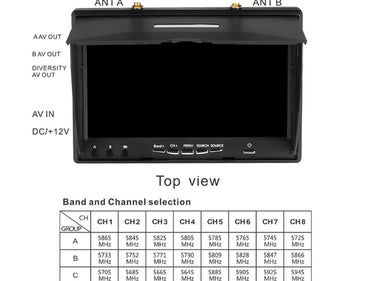

Band and Channel selection

Package Included:
1 x 7" LCD Screen Receiver Monitor with built in Rechargable Battery
2 x 5.8G Antenna
1 x AV Cable
1 x Charger
