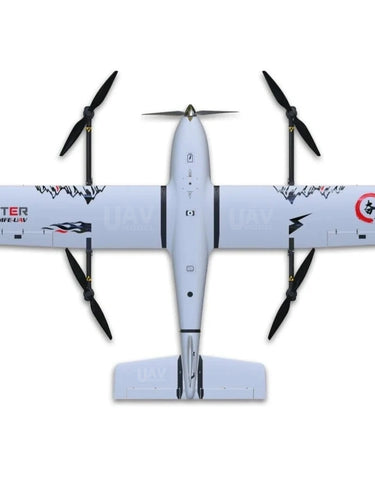

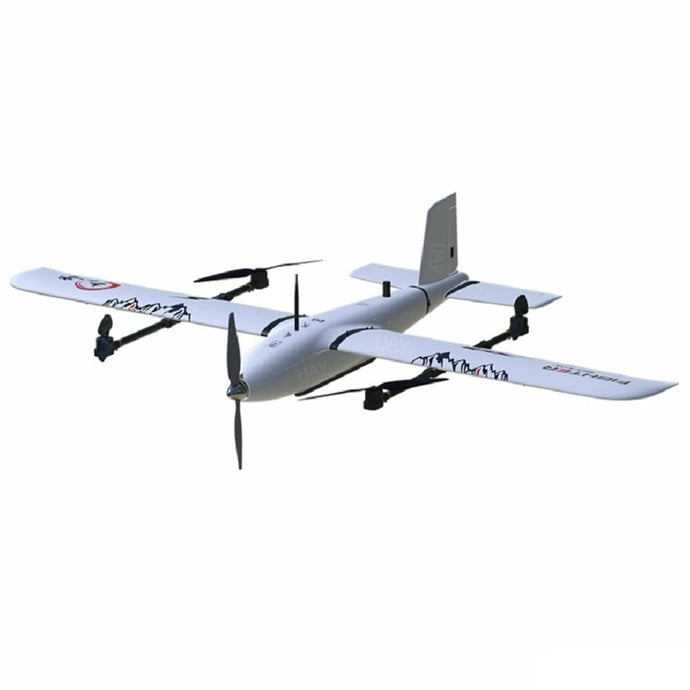

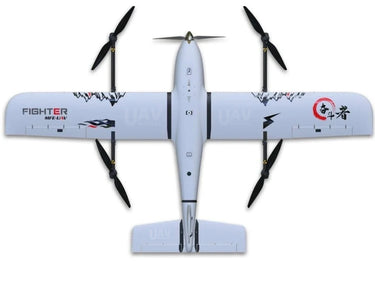

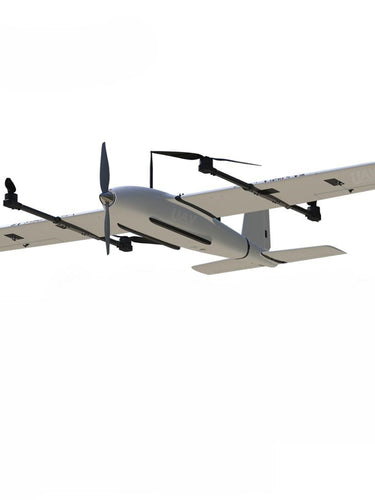

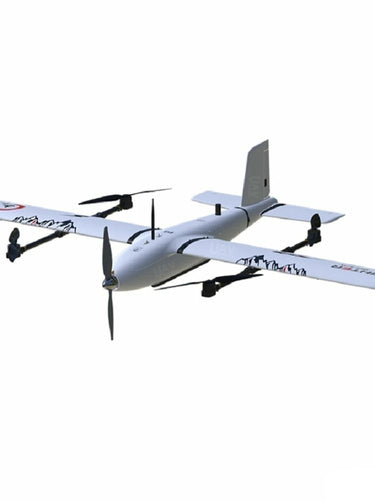

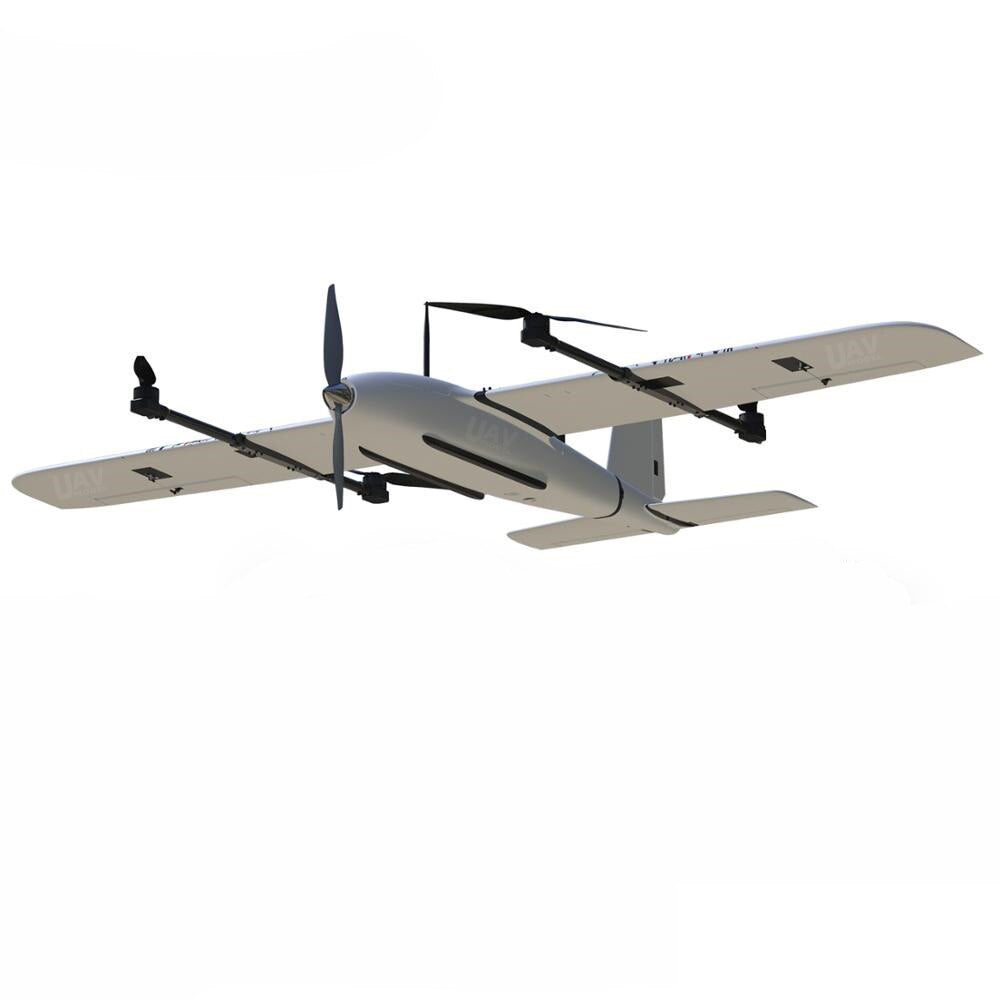

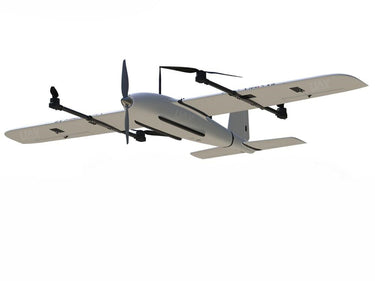

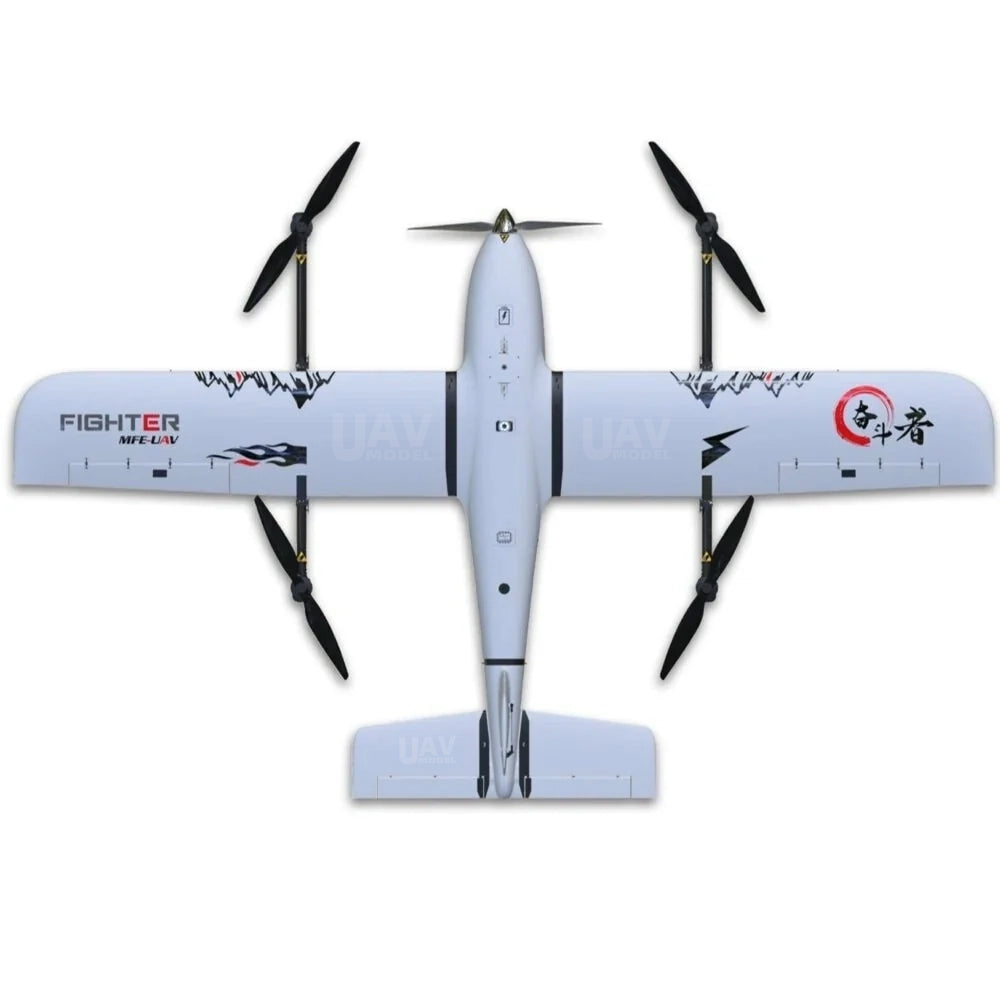

Makeflyeasy fighter 2400mm ultralight vtol

User manual

Parameter

These are the available packages:

MFE FIGHTER - VTOL KIT

This is the kit version with hardware fittings, no electronics.

MFE FIGHTER - VTOL PNP

This is the same as 'VTOL KIT' but also supplied with the following:

• 1x MFE custom 200kv Forward motor
• 1x 12s 60A ESC
• 4x MFE custom 160kv Lift Motors
• 4x MFE custom 12S ESC to fit in lift motor mounts
• 1x Additional wiring and connector pack
• 2x Pairs of CF 20x6.8 VTOL Props
• 1x APC forward Prop
• 1x 3-14S 10A 6V UBEC
• 5x EMAX ES3054

 Recommended additional parts

(this is our example of possible build)

• Cube Orange and Here3
• Power management and monitoring such as Mauch 003 and Power Cube 3
• Herelink

Manufacturer's Description

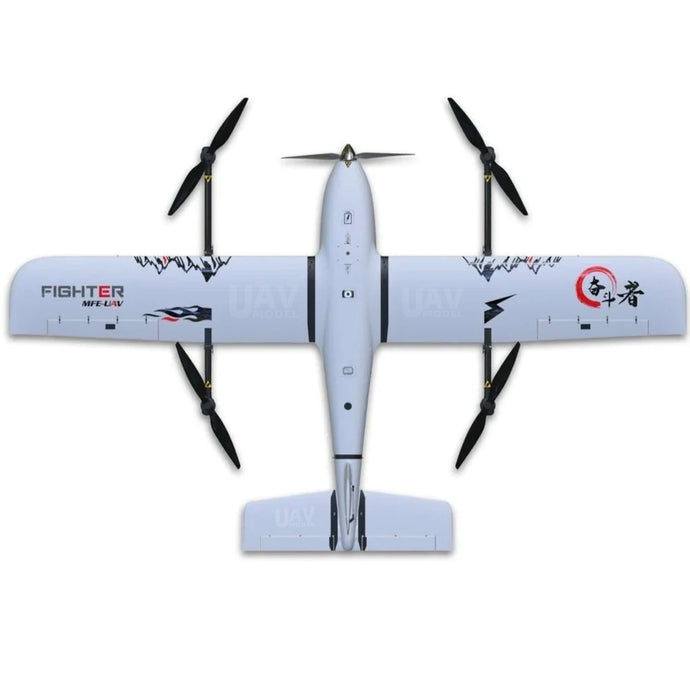

The fighter is a 10kg fixed-wing flight platform (hand parachute/VTOL), which is easy to carry, friendly to operate, stable and durable.army fixed wing aircraft

The fighter is positioned as a heavy-duty, long-endurance fixed wing, which greatly reduces the difficulty of aerial survey and further liberates productivity which improves the efficiency of aerial survey.

The modular design concept makes the aircraft easy and fast to assemble. The wings, folding arms and tail fins can be easily dismantled, making the aircraft practical and portable and user-friendly.

The open flight control cabin is compatible with Pixhawk flight control and supports mounting of Sony A7R2 4200W pixel full-frame camera /1.5kg lightweight lidar. The maximum support is 12s@22000mah lithium polymer battery, which can achieve ultra-long range and high-quality shooting effect.

Using proper control point cooperatively, the final mapping would satisfy 1:1000 and 1:2000 aerial survey standard, which realized a wide-ranging application such as geography surveys, farmland, forestry land and grassland protection, power line inspection, environment protection, water conservancy etc.

Information from the Manufacturer

Specifications

• Brand Name: MFE
• Item Name: Fighter
• Material: EPO, EVA, carbon fibre, PC, engineering plastics and etc.
• Wingspan: 2430mm
• Fuselage Length: 1450mm
• Fuselage Height: 180mm
• Wing Area: 72.5dm²
• Suggested Flight Speed: 17~20m/s
• Stalling Speed: 10m/s
• Maximum Payload: 1.5kg
• Payload Cabin Size: 280*160*110mm
• Longest Flight Range: >150km(600g load)
• Max. Take-off Weight: 11.5kg
• Practical Ceiling Height: 4000m
• Wind Resistance: 5
• Take-off and Landing Approach: VTOL
• Dismounting Way: Tool-free
• CG: Under the raised position of fuselage hook and the wing root plastic (same position)

 Features

• Efficient Aerodynamics on the basis of the conventional inverted T layout, the Fighter have optimized the aerodynamic figure and relative positions of the wings, horizontal tail, vertical tail and fuselage.
• Light but Stable.
• The wing and tail adopt a tool free quick-release structure making disassembly quicker.
• IPX3 waterproof level.
• Large fuselage cabin, low resistance.
