Skyeye

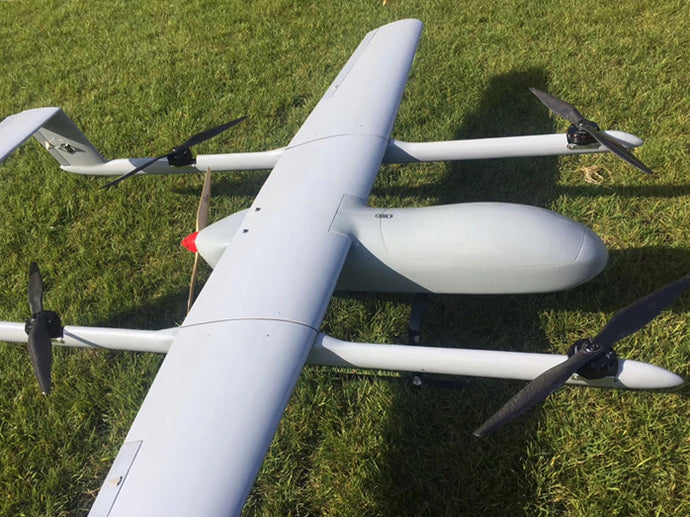

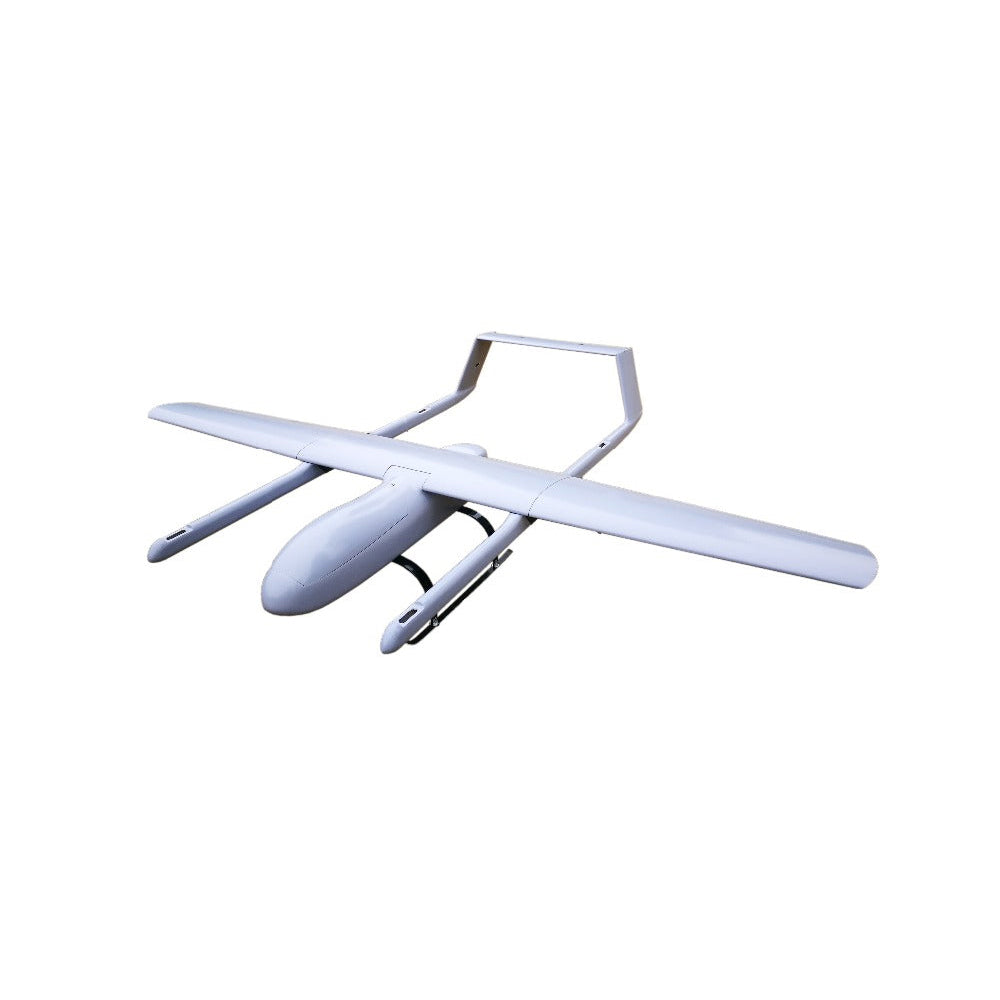

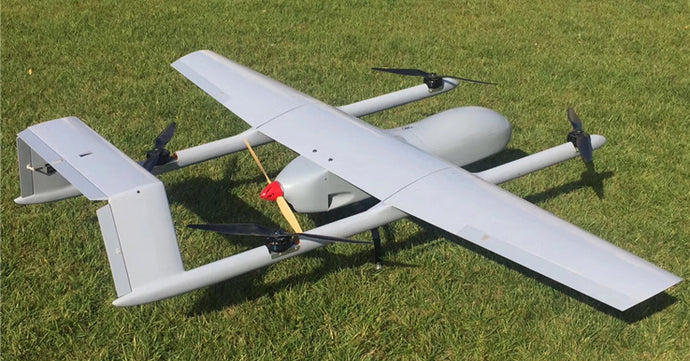

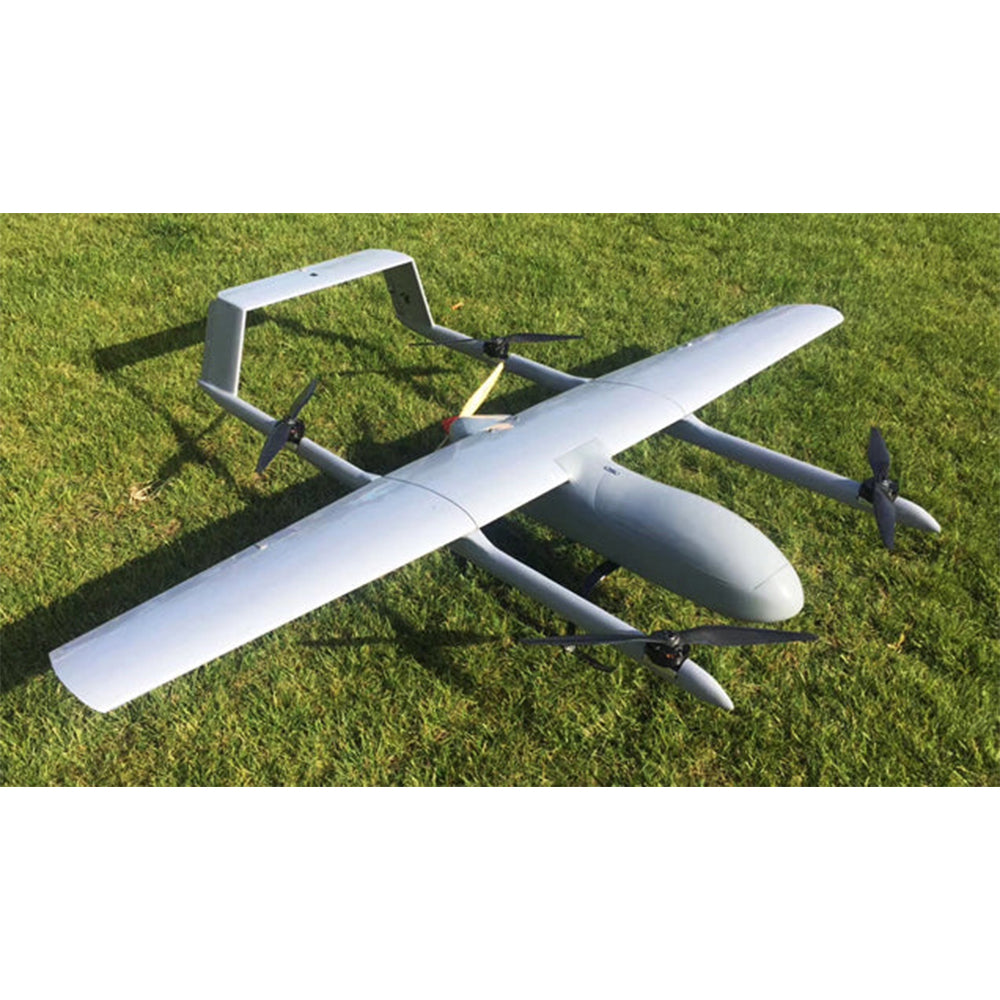

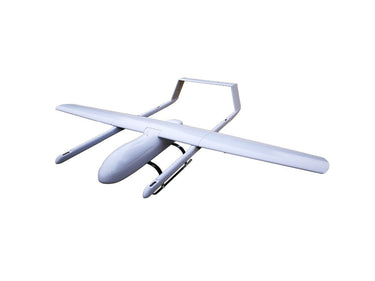

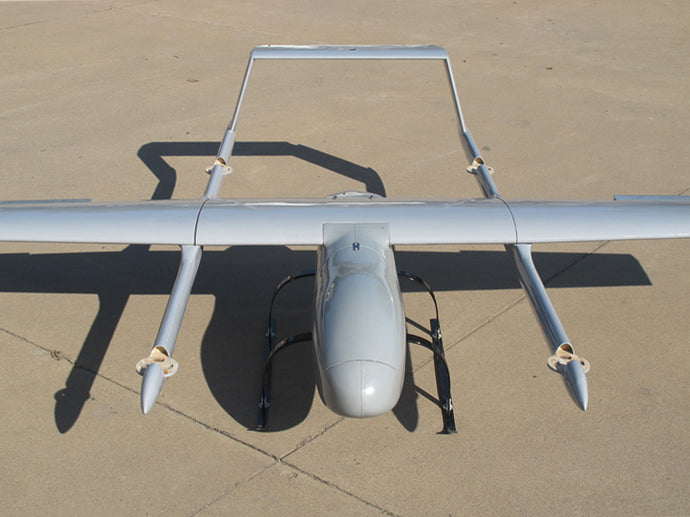

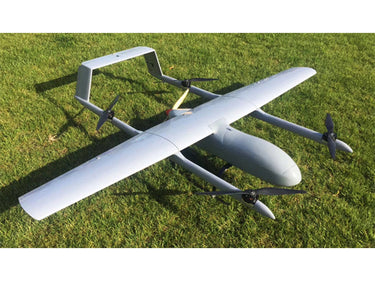

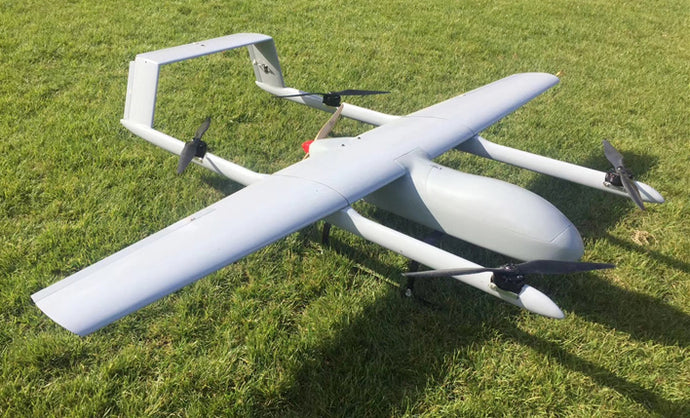

Skyeye 2930mm H-Tail Glass Fiber Full Carbon Fiber UAV VTOL

$11,199.00 $10,079.00 Sale
Shipping calculated at checkout.
62 reviews
SKYV293-GP
MODE: Glass Fiber
Type: PNP

NOTE: If you are failed to place order directly from our web shop, pls contact our sales team to get support.

MODE: Glass Fiber
Type: PNP

Product information

PARAMETER

Wingspan: 2930mm
Length: 2030mm
Wing Area: 100dm2
Maximum Take-off Weight: 28kg
Empty Weight: 7.1kg
Flight Time: 1.5-3h
Maxium Speed: 120km/h
Stall Speed: 65km/h
Payload Capacity: 3-5kg
Fuel Tank: 5.5L
Payload Bay: 560x220x220mm

Engine PNP Version:

DLE 40cc Engine x 1

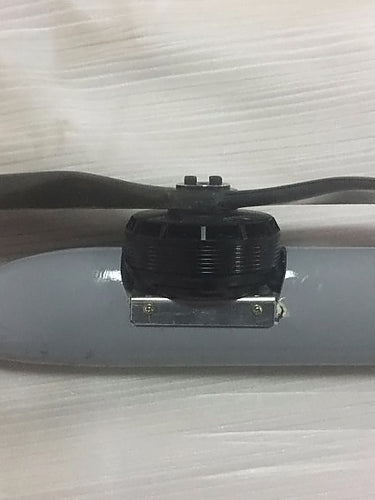

T-motor V804 170V (VTOL Motors) x 4
T-motor 180A ESC x 4
Savox SC-1256TG x2
Savox SC-1251MG x4
Savox SC-1250MG x1
Sail 19x10 High Power Propeller x 1
T-motor G24*7.8″ Propeller (Pairs) x 2 Pairs
MT90 UAV Pitot Tube x1
Nav. LED lights x 1

Motor PNP Version:

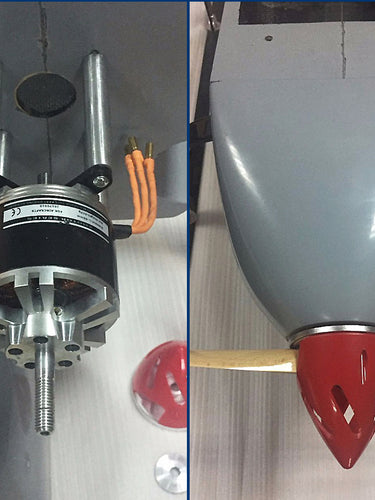

Dualsky XM6360EA 190KV Brushless Motor x 1
Dualsky XC13036HV 130A High Voltage ESC x 1
T-motor V804 170V (VTOL Motors) x 4 12s
T-motor 180A ESC x 4
Savox SC-1256TG x2
Savox SC-1251MG x4
Sail 21x8 High Power Propeller x 1
T-motor G24*7.8″ Propeller (Pairs) x 2 Pairs
MT90 UAV Pitot Tube x1
Nav. LED lights x 1

The production cycle is 7 working days;

This is a mature and professional plane model.It is for industrial usage.It has a huge contribution to shipment,enironment survey,monitor and so on.High carrying capacity,long endurance time,wide wingspan,these are excellent performance for finishing any kinds of flying mission.fixed wing vtol uav

 This is latest 2930mm wingspan Skyeye vtol electric plane that just released on January 2018 that upgraded from the previous 2750mm Skyeye. The wingspan has been enlarged, and it is now more connient to connect the wings to tail poles.commercial vtol

The 2930mm Skyeye is the aircraft with the vertical take-off and landing (VTOL) function that can hover, take off, and land vertically. The platform caters to larger UAS projects such as universities or commercial projects. This aircraft is capable of carrying a wide variety of payload configurations and offers extended flight times. The Skyeye 2930mm is an exceptionally large aircraft designed for professional use and can be equipped with a full system of advanced control electronics to run in sync with the most advanced ground stations. This plane can get most anywhere, and preform most any job related task you may require.
