Skyeye

Skyeye Carbon Fiber Glass fiber 2600mm UAV Fixed Wing

$1,490.00
Shipping calculated at checkout.
29 reviews
SRH260-K
Materials: Glass fiber

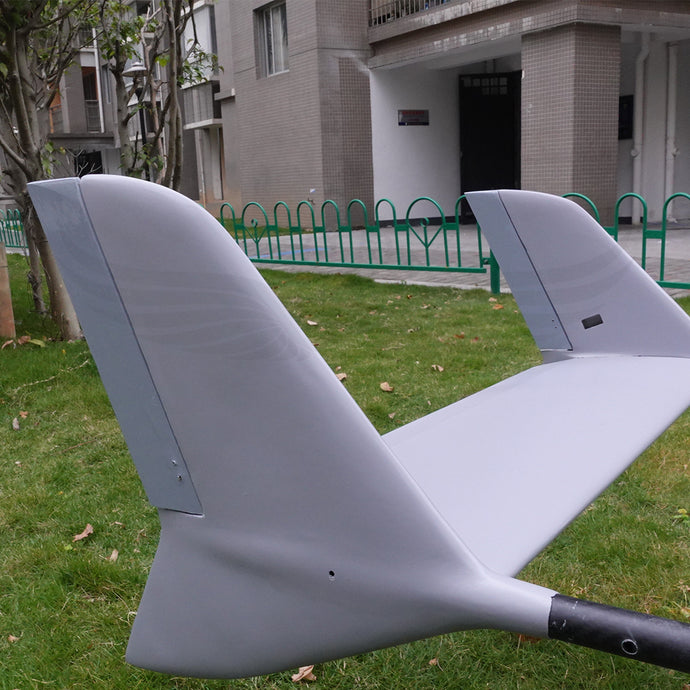

Type: H-TAIL
MODE: KIT

NOTE: If you are failed to place order directly from our web shop, pls contact our sales team to get support.

 SKYEYE User manu

Materials: Glass fiber
Type: H-TAIL
MODE: KIT

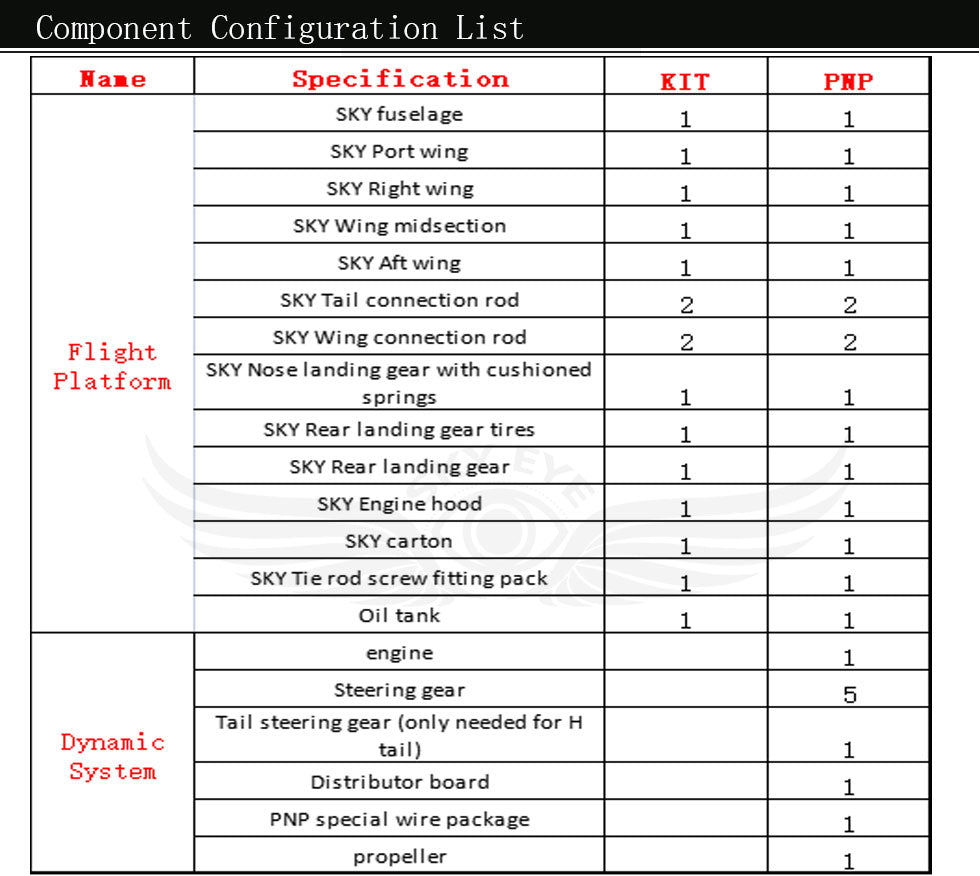

Product information

PNP Version:

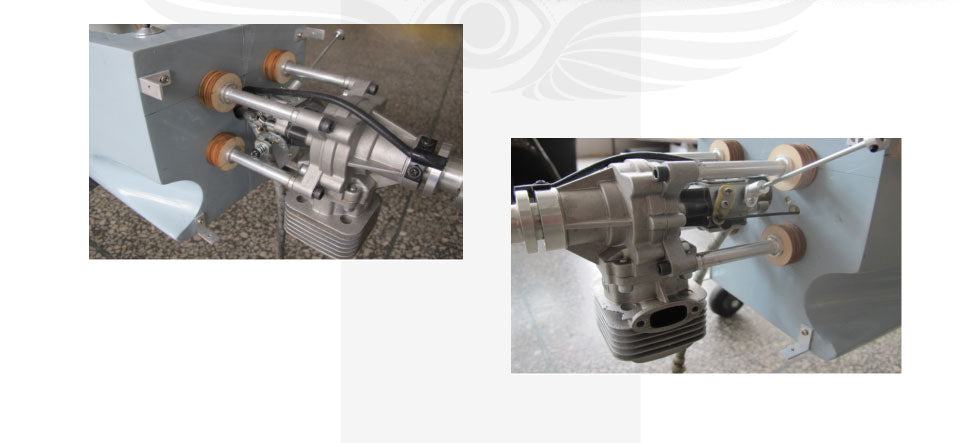

DLE30 Engine x 1
Futaba S-U400 Servo x 1
Futaba S-U300 Servo x 4
Hitec HS-5085MG x 2
17x8 High Power Propeller x 1
Hobbywing 25A UBEC x 1
MT90 UAV Pitot Tube x1
Nav. LED lights x 1

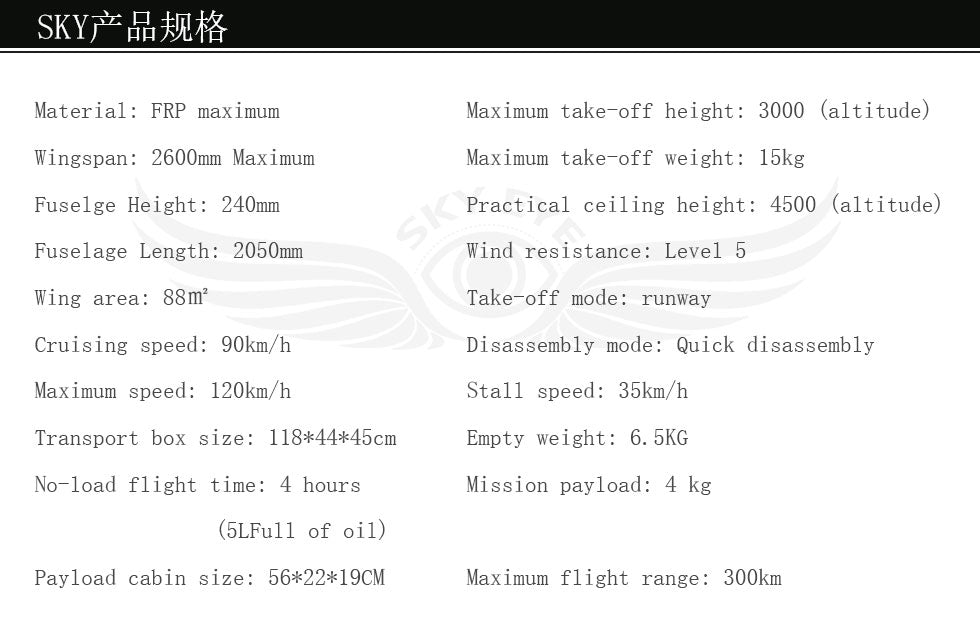

PARAMETER

Wingspan: 2600mm
Length: 2050mm
Wing Area: 88dm2
Maximum Take-Off Weight: 15KG
Empty Weight: 6.5KG
Engine: 20-35cc gasoline engine
Flight Time: 2h
Maxium Speed: 140km/h
Stall Speed: 45km/h
Payload: 4KG
Fuel Tank: 5.5L
Payload Bay: 560x220x220mm
Packaging:1180*440*450mm

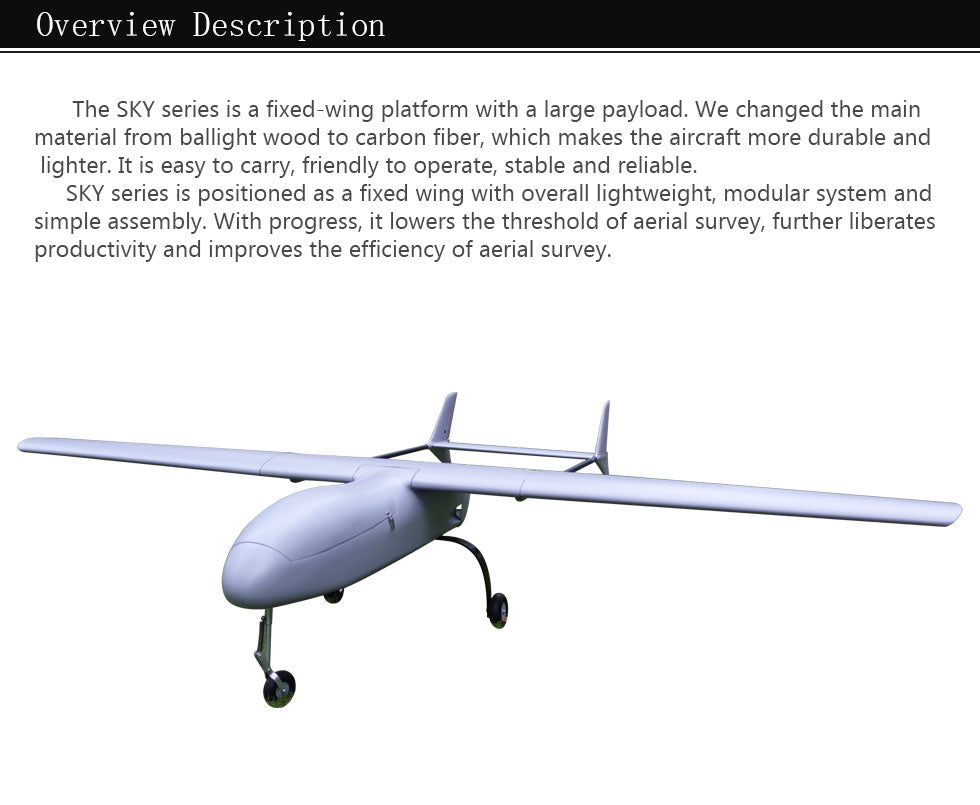

SKY series is positioned as a fixed wing with overall lightweight, modular system and simple assembly. With progress, it lowers the threshold of aerial survey, further liberates productivity and improves the efficiency of aerial survey.

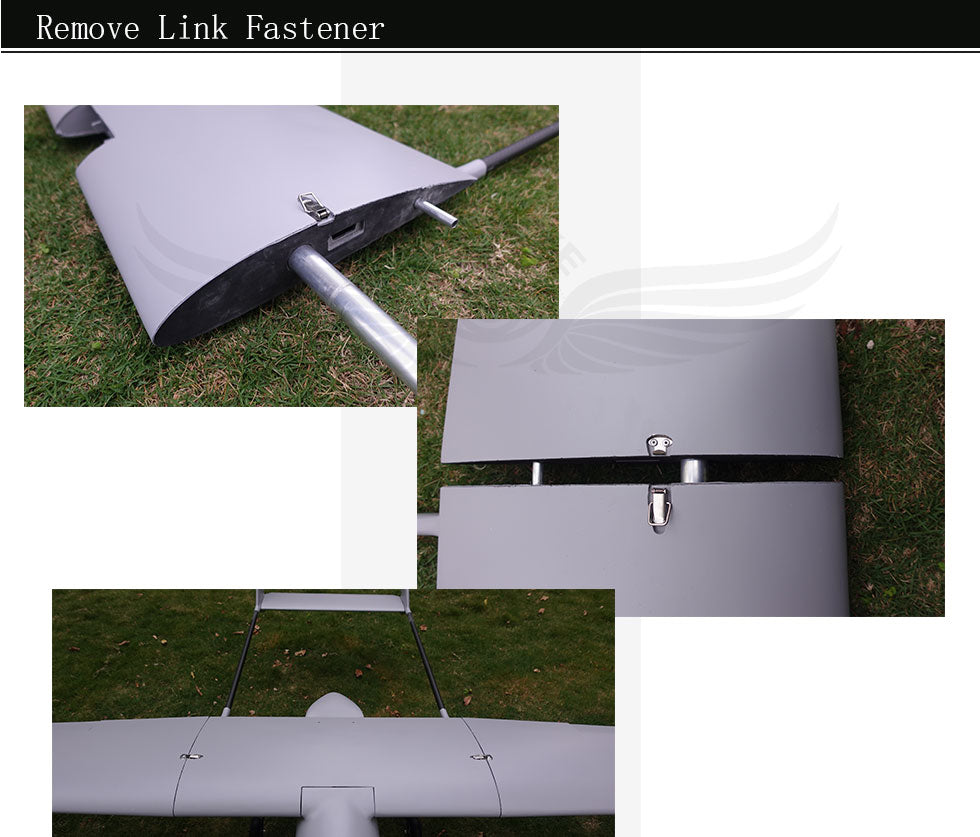

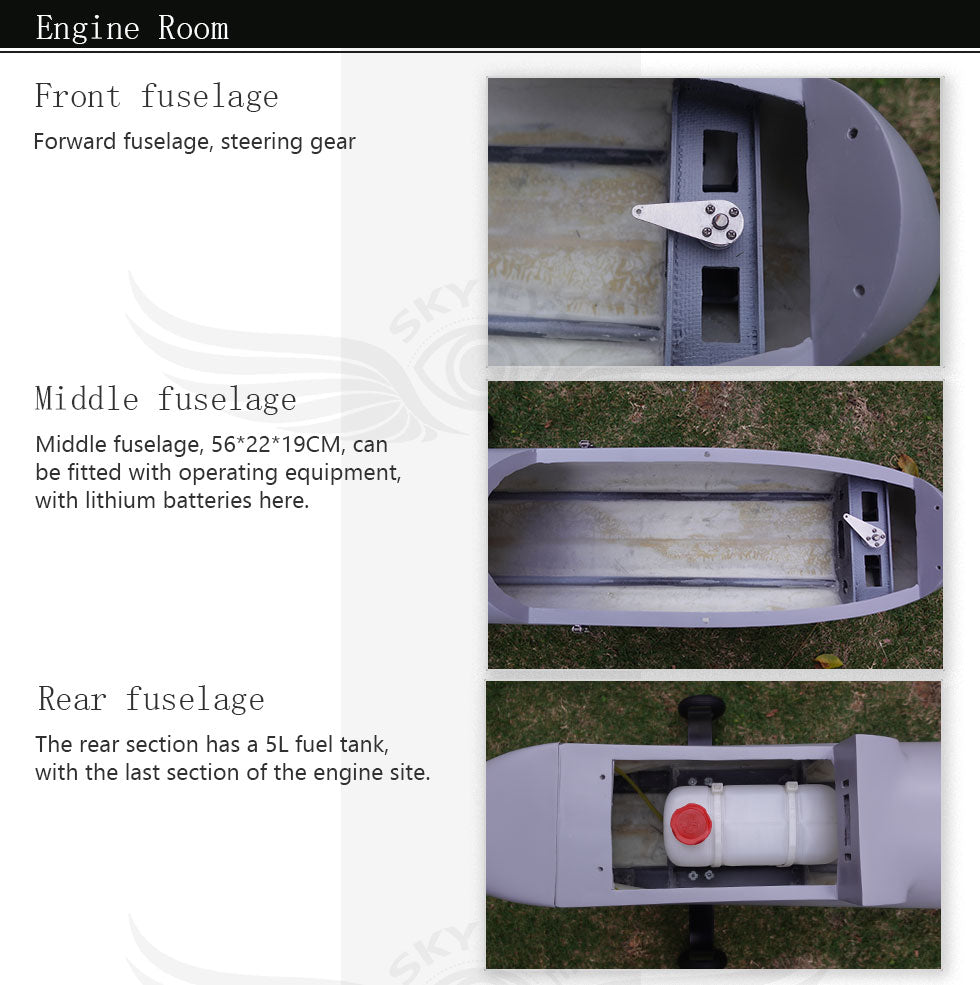

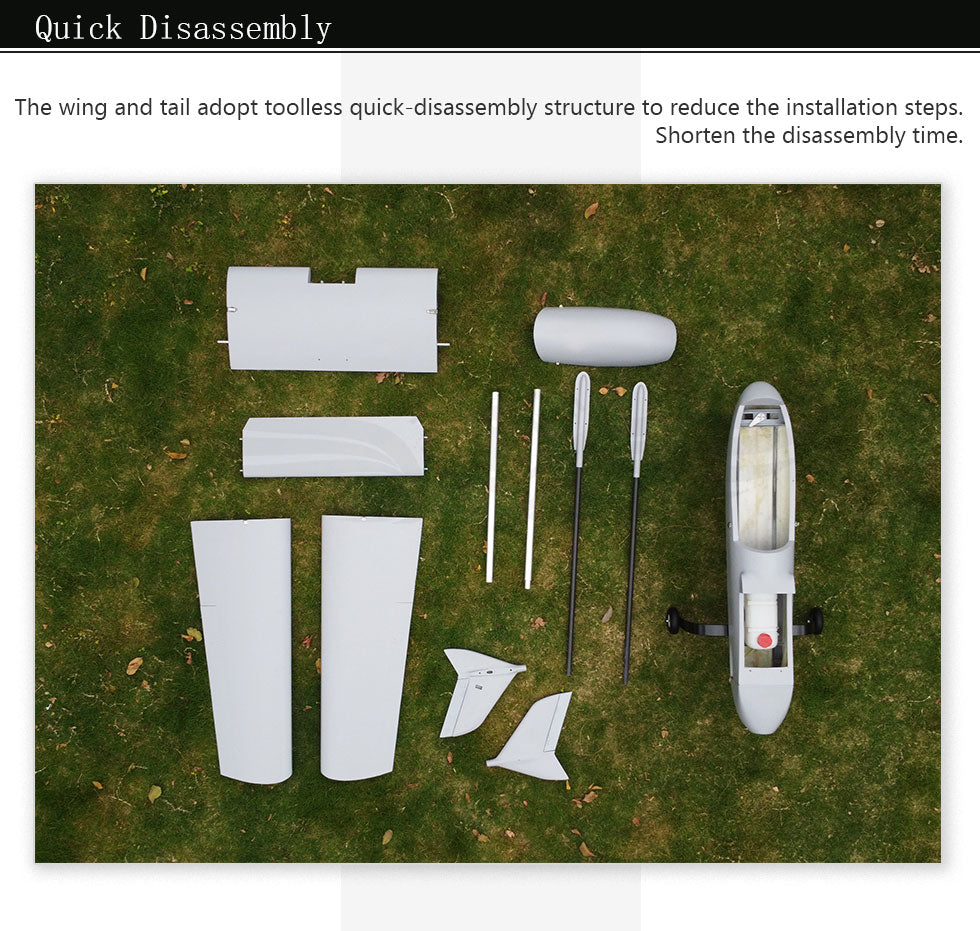

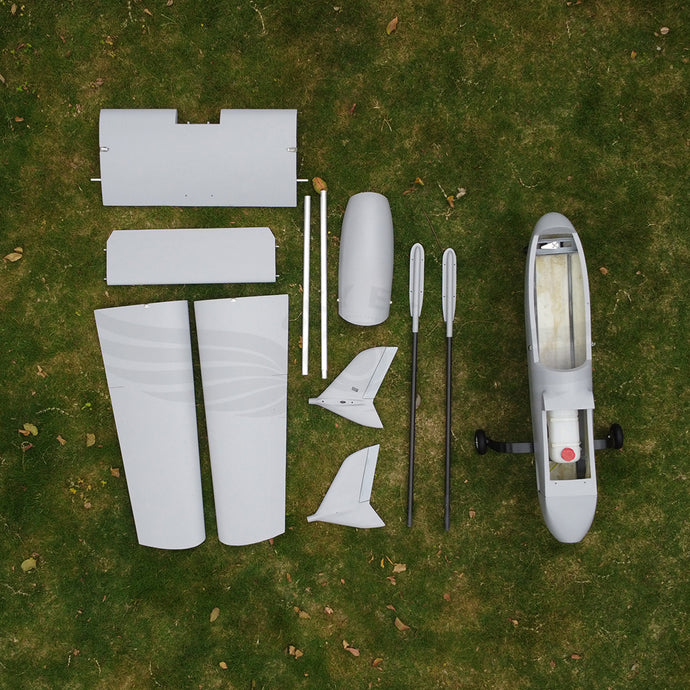

Modular design concept makes aircraft assembly simple and fast, can quickly remove wings, tail can be quickly removed, so that the aircraft has practical portability and friendly user experience. Open flight control cabin compatible with Pixhawk/CUAV flight control, oversized load cabin, to meet a variety of different environmental operations. It can be used in terrain mapping, 3D real scene, agriculture, forestry and animal husbandry protection, power line inspection, environmental protection, water conservancy and other aspects.

Note:

Production cycle: 7-15 working days (ask customer service about production schedule before ordering)

Prices and freight are for reference only, before purchasing this model, customize the product, no stock, orders need to wait for production time.
