Skyeye Wingspan 5M UAV VTOL

In stock
SKU: SVC500-K
Regular price $12,500.00 美元
Regular price Sale $12,999.00 美元 Sale price $12,500.00 美元
Type

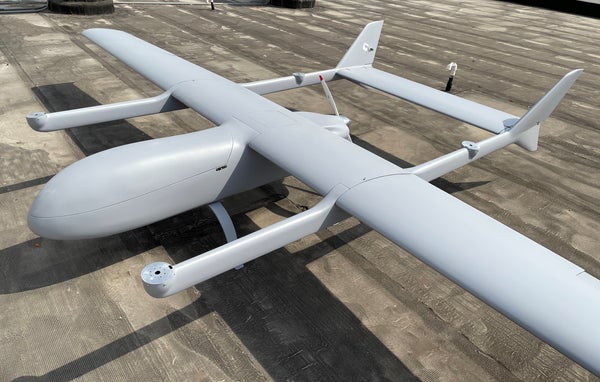

Skyeye Wingspan 5M is a high-performance 12kg uav vtol. The fuselage is made of high-strength composite materials, which are corrosion-resistant and stable in flight. The overall fuselage adopts fluid design to reduce flight resistance and improve stability.drones and unmanned aerial vehicles fixed wing hybrid vtol



Main material Skyeye
wingspan 5000mm
The length of the 3500mm
The fuselage size 1000*340*350mm
Wing surface D 261.5 ㎡
Cruising speed 120km/h
Stall speed 55km/h
The highest speed 150km/h
Empty weight 26.5 kg
Maximum take-off weight 90kg
Maximum payload 6kg
Flying up Altitude: 4km
Time of flight 8 hours (27L full oil)
Wind resistance 7level
Accessories package Original spare parts bag
Carton size 1000mm x 340mm x 350mm


SPECIFICATIONS:

  • Main material: carbon fiber
  • Wingspan: 5000mm
  • Length: 3500mm
  • Maximum Width of Fuselage: 375mm
  • Wing Area: 261.5 dm2
  • Empty Weight: 34kg
  • Maximum Take-off Weight: 100kg
  • Maximum Speed: 38m/s
  • Cruise Speed: 35m/s
  • Stalling Speed: 24m/s
  • Maximum Payload: 20kg
  • Volume of Fuel Tank: 28Liters
  • Maximum Flying Time:  4 to 8 Hours
  • Equipment cabin size: 1000mm x 340mm x 350mm

Recommended Setup (Additionally Charged):

  • * DLA 232cc Engine w/ EFI, Starter & Alternator
    * Customized T-motor 65kv VTOL Motors x 4
    * Customized T-motor 24S 200A ESC x 4
    * Pilot PY-48AH Servo x 2
    * Pilot PW-27AH Servo x 4
    * Tower Pro MG958 Servo x 2
    * 32″x14″ Forward Propeller x 1
    * T-motor 40″ Carbon Fiber VTOL Propeller x 2 Pairs
    * 6s 8000mAh Lipo x 17

Note:

Production cycle: 7-15 working days (ask customer service about production schedule before ordering)
This product is not flightable and does not provide any technical support. If you need this service, it is recommended to find a UAV service training company to provide technical support for assembly and flight.
Prices and freight are for reference only, before purchasing this model, customize the product, no stock, orders need to wait for production time.
