Skywalker V8 Strong Composite 2300mm UAV Fixed Wing Drones
Last 90 Days Sales: 3 PCS
Order ships in 7~14 business days.
Customers who can not place an order please contact us;
Core Overview
The V-8 is an aircraft with a large wing area, providing sufficient conditions for payload requirements. Its reasonable aerodynamic distribution structure reduces flight resistance. It achieves a balance between mission flexibility and deployment convenience. Key parts of the fuselage are reinforced with carbon fiber, making the structure sturdy and durable. It is a reliable platform designed for professional-grade aerial surveying, inspection, logistics transportation, and other heavy-load, long-distance mission requirements.
Core Technology Advantages
Carbon Fiber Reinforcement Protection
Carbon fiber materials are used to reinforce wear-prone and impact-prone areas such as the nose, wing leading edges, and fuselage belly, significantly improving wear and impact resistance, extending the aircraft's service life, and reducing maintenance costs.
Quick-Detach and Quick-Install Structure
Main components like the fuselage and wings feature a convenient disassembly and assembly design, allowing rapid deployment and storage without professional tools, greatly improving transportation and relocation efficiency for field operations.
Stable and Efficient
The optimized V-tail and aerodynamic design ensure stable flight attitude.
Usage Recommendations
- Adjusting the aircraft's center of gravity: The CG of the V-8 is located 450 mm behind the nose. You can adjust the CG by moving the battery forward or backward. If moving the battery is not enough to achieve the correct CG, you can add weight with additional material to adjust the aircraft's CG to the correct position.
- First Flight and Takeoff/Landing: Novices are strongly advised to conduct initial flights under the guidance of an experienced pilot. For catapult launch, ensure the launch rail is directly into the wind with no crosswind interference. For the first landing, prioritize an open, flat area for a glide landing.

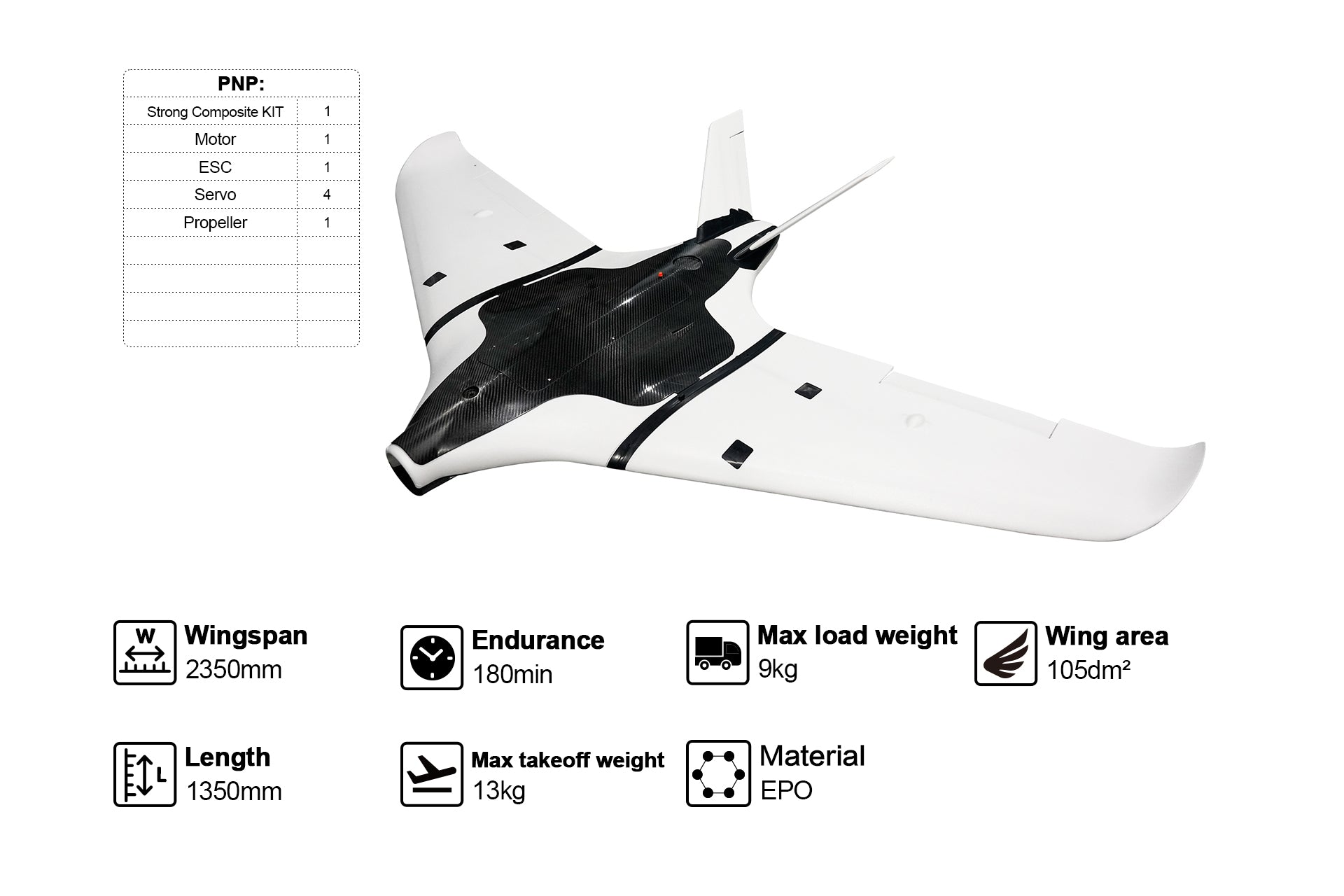

Product Parameters
Basic Specifications
| Item | Parameter |
|---|---|
| Product Model | V-8 |
| Fuselage Length | 1350mm |
| Wingspan | 2350mm |
| Wing Area | 105 dm² |
| Maximum Takeoff Weight | 13 KG |
| Maximum Payload Weight | 9 KG |
| Maximum Endurance | 180 min |
| Takeoff/Landing Method | Catapult / Glide Landing (VTOL is optional) |
| Fuselage Material | EPO Composite Material + Carbon Fiber Reinforcement in Key Areas |
| Mission Bay Dimensions | Front Bay: 240 * 200 * 85mm / Middle Bay: 500 * 230 * 90mm / Rear Bay: 275 * 200 * 70mm |
Recommended Configuration
| Item | Specification |
|---|---|
| Motor | 6352 KV245 or 6360 KV190 Brushless Motor |
| ESC | 100A * 1 |
| Servo | 17g * 2 + 26g * 2 |
| Propeller | APC 19-inch or 20-inch |
| Battery | 22.2V (6S) 22000-44000mAh or 44.4V (12S) 22000-30000mAh |
| Remote Controller | At least 6 Channels (6CH) |
Configuration List
| Name | Specification | KIT | PNP | RTF |
|---|---|---|---|---|
| Fuselage | Piece | 1 | 1 | 1 |
| Wing | Left/Right | 2 | 2 | 2 |
| Wing Accessories | Pack | 5 | 5 | 5 |
| Fuselage Accessories | Pack | 3 | 3 | 3 |
| Vertical Tail | Pair | 1 | 1 | 1 |
| Exhaust Pipe | 1 meter/piece | 1 | 1 | 1 |
| Carbon Tube | Piece | 6 | 6 | 6 |
| Motor | 6352KV245-6360KV190 | - | 1 | 1 |
| ESC | 100A | - | 1 | 1 |
| Servo | 17g/26g*2 pcs | - | 2 | 2 |
| Propeller | APC 19-inch (20-inch) | - | 1 | 1 |
| Battery | 22.2V 22000-44000mAh (or 44.4V 22000-30000mAh) | - | - | 1 |
| Remote Controller | 6 Channels | - | - | 1 |
Frequently Asked Questions (FAQ)
Q1: What is the difference between KIT, PNP, and RTF versions? How should I choose?
A1: The KIT version only includes the airframe shell without the required electronic components, meaning it's an empty airframe, and all electronic components need to be purchased separately. The PNP version includes the airframe with motor, ESC, servos, propeller, and accessories (landing gear, etc., if any), but you need to assemble it yourself. Once assembled, it is ready to fly. The RTF version means ready to fly, with 99% completion. All necessary components for the aircraft are fully assembled. After purchase, you only need to install the wings, ailerons, and tail to fly.
Q2: Where exactly is the carbon fiber protection applied?
A2: Carbon fiber material is mainly used to reinforce the nose, wing leading edges, and fuselage belly, providing friction and impact protection, thereby increasing the aircraft's usage count.
Q3: Does the quick-detach structure affect the structural strength during flight?
A3: No. The quick-detach structure is carefully designed and strength-tested. When locked, it ensures connection strength and stability equivalent to that of an integrated structure.
Q4: Can the V-8 take off and land vertically?
A4: Based on the fixed-wing design, the V-8 reserves installation positions for VTOL (Vertical Take-Off and Landing), providing convenience for those with VTOL needs. Choose according to your requirements, saving time and effort.



Product information
| Product model | V8 |
| Wing span | 2300mm |
| Fuselage length | 1400mm |
| Wing area | 105dm^2 |
| Takeoff weight | 13KG |
| Aircraft center of gravity | Head back 450mm |
| Take-off mode | Hanging/ejecting |
| Landing mode | Ski/parachute descent |
| Wind resistance | Level 5-6 |
| Cruising speed | 65km/h |
| Endurance time | 180min |
| ceiling | 6000m |
| KIT: | |
| SKYWALKER V8 Strong Composite KIT | x1 |
| PNP: | |
| SKYWALKER 8 Strong Composite KIT | x1 |
| Motor 6352 KV245 | x1 |
| ESC | x1 |
| SERVO 17g | x2 |
| SERVO 26g | x2 |
| Propeller | x1 |
Note:
Production lead time: 7-15 working days (ask customer service about production schedule before ordering
The shipping time is expected to be another 7-14 days
Prices and freight are for reference only, no stock, orders need to wait for production time.
Made-to-order products: Once a customer submits an order, the product will immediately go into production. Given its customized nature and the immediacy of production, such orders become binding upon confirmation and no refunds will be accepted.
Update date:202506051119
