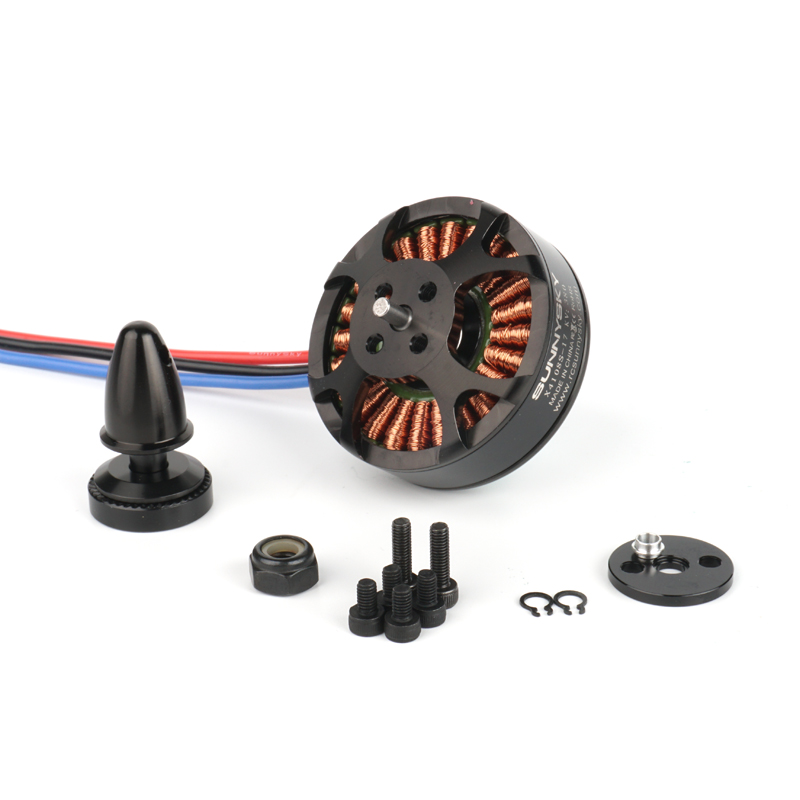

SunnySky XS High Power X4108S Brushless Motor with accessories displayed. SunnySky XS High Power X4108S Brushless Motor with accessories displayed.
1 4

SUNNSKY

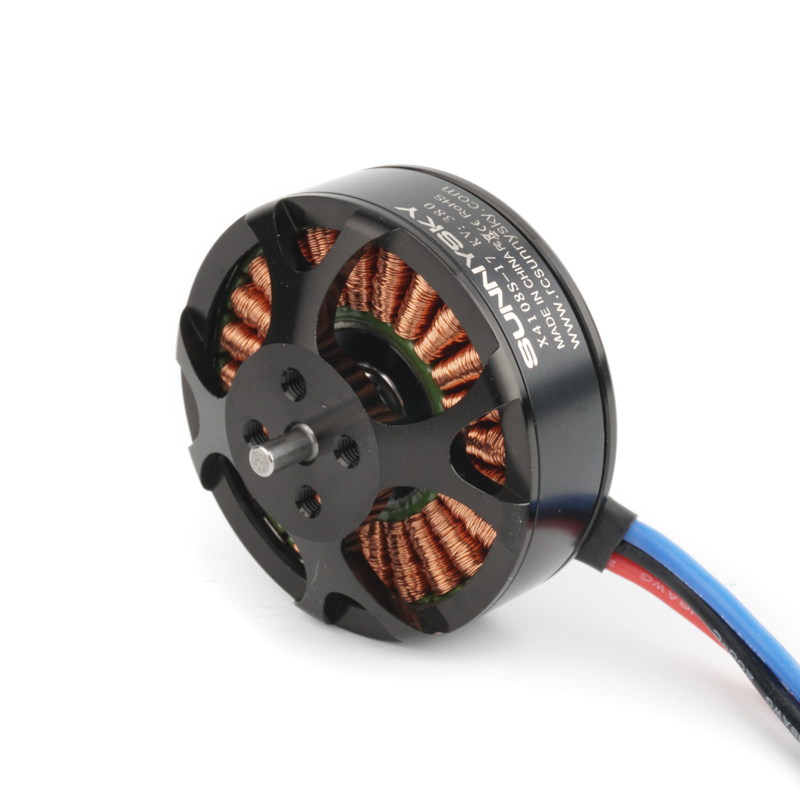

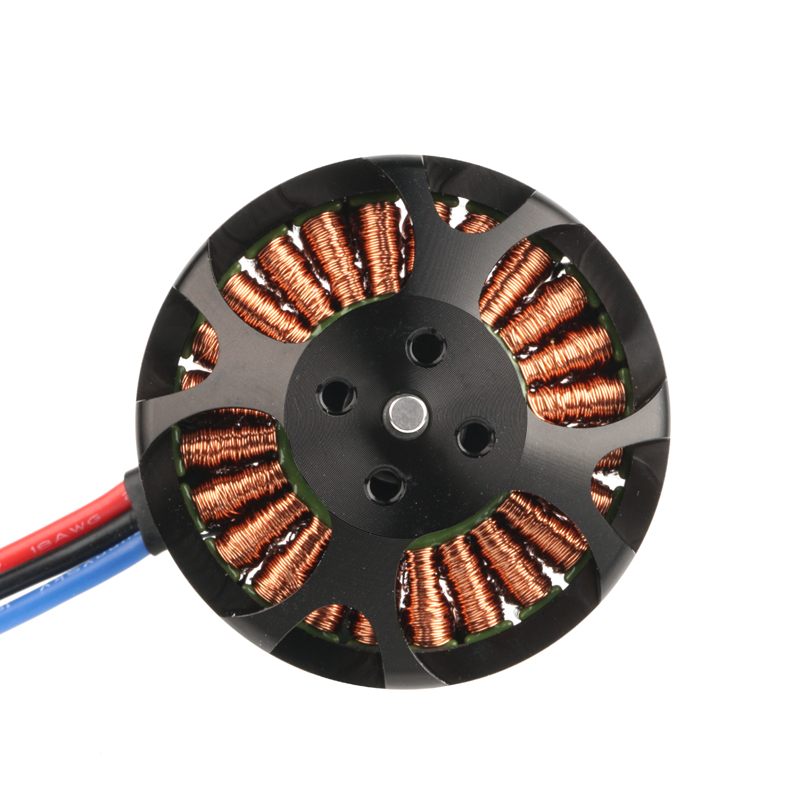

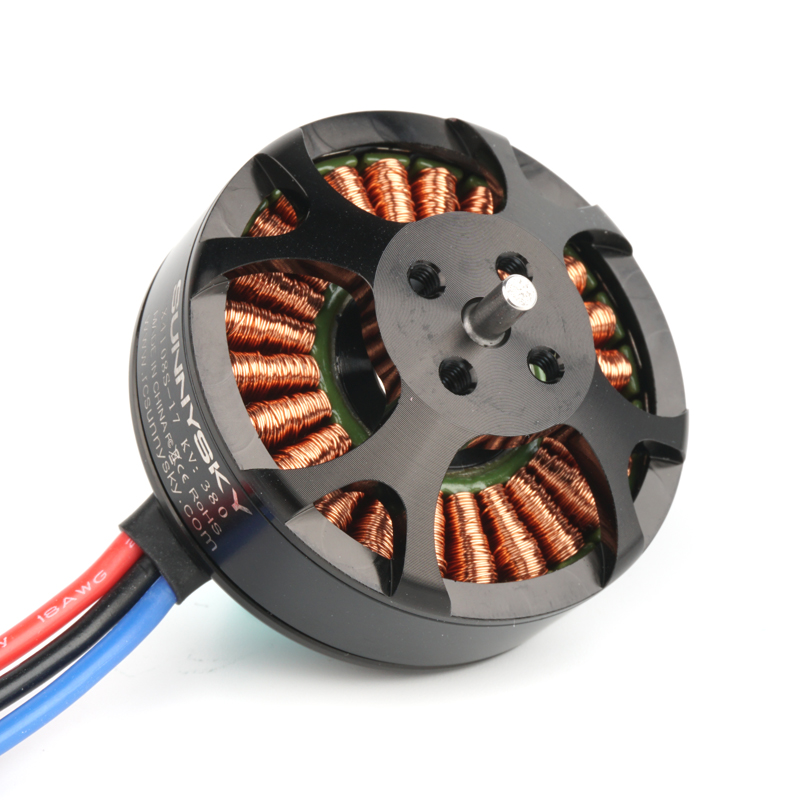

SunnySky XS High Power X4108S Brushless Motors

$32.00
Shipping calculated at checkout.
SSX4108S-380
TYPE: KV380

Expected delivery within 7-15 days after payment;

Customers who can not place an order please contact us;

Tag : brushless drone motor , brushless motor , Drone Motor , MOTOR , sunnysky
TYPE: KV380

KV380:

No.of Stator Arms 24  定子槽数
No.of Stator Poles 22  定子极数
Motor Kv 380  电机KV
No-Load Current(A/10V) 0.2A 空载电流
Motor Resistance 244mg 电机电阻
Max Continuous Current 13A/30S 最大连续电流
Max Continuous Power 346W 最大连续功率
Weight 110g 重量(含长线)
Outside Diameter 46.1mm 转子直径
Shaft Diameter 3.175mm 出轴直径
Body Length 25.5mm 电机长度
Overall Shaft Length 34mm 电机含轴总长度
Max Lipo Cell 6S 最大电池节数
Recommended Prop(inch) APC1238 APC1447
DJI1555
推荐螺旋桨规格
65效率型
Prop (inch) Volts(V  Amps(A) Thrust(g) Watts (W) Efficiency (g/W) 全油门负酸温度
APC123B 22.2  1  250  22.2  11.26126126  53°
2  430  44.4  9.684684685
3  590  66.6  8.858858859
4  720  B8.8 8.108108108
5  840  111  7.567567568
6  960  133.2  7.207207207
7  1060  155.4  6.821106821
B 1160  177.6  6.531531532
9  1250  199.8  6.256256256
10  1330  222  5.990990991
11.7  1520  259.74  5.852005852
APC1447 22.2  1  280  22.2  12.61261261  72°
2  470  44.4  10.58558559
3  630  66.6  9.459459459
4  750  88.8  8.445945946
5  900  111  8.108108108
6  1010  133.2  7.582582583
7  1110  155.4  7.142857143
8  1210  177.6  6.813063063
9  1300  199.8  6.506506507
10  1400  222  6.306306306
12  1570  266.4  5.893393393
14.5  178D 321.9  5.529667599
15.6  1890  346.32  5457380457
APC1340 22.2  1  240  22.2  10.81081081  38°
2  410  44.4  9.234234234
3  590  66.6  8.858858859
4  740  B8.8 8.333333333
5  860  111  7.747747748
6  1000  133.2  7507507508
7.7  1230  170.94  7.195507196
DJ1555 22.2  1  290  22.2  13.06306306  75°
2  500  44.4  11.26126126
3  670  66.6  10.06006006
4  800  88.8  9.009009009
5  930  111  8.378378378
6  1060  133.2  7.957957958
7  1180  155.4  7.593307593
8  1290  177.6  7.263513514
9  1370  199.8  6.856856857
10  1460  222  6.576576577
12  1650  266.4  6.193693694
14  1840  310.8  5.92020592
15.6  2010  346.32  5.803880804

KV480:

Specifications
推荐多旋翼重量≤720gx轴数
Stator Diameter 40.6mm 定子外径
Stator Thickness 8mm 定子厚度
No.of Stator Arms 24  定子槽数
No.of Stator Poles 22  定子极数
Motor Kv 480  电机KV
No-Load Current(A/10V) 0.4A 空载电流
Motor Resistance 178mg 电机电阻
Max Continuous Current 18A/305 最大连续电流
Max Continuous Power 448W 最大连续功率
Weight 112g 重量(含长线)
Outside Diameter 46.1mm 转子直径
Shaft Diameter 3.175mm 出轴直径
Body Length 25.5mm 电机长度
Overall Shaft Length 34mm 电机含轴总长度
Max Lipo Cell 6S 最大电池节数
Recommended Prop(inch) APC1238 APC1447
DJI1555
推荐螺旋桨规格
65动力型可适用于高原环境
Prop (inch) Volts (V) Amps(A) Thrust(g)  Watts (W) Efficiency(g/W) 全油门负载温度
APC1238 22.2  1  240  22.2  10.81081081  61°
2  430  44.4  9.684684685
3  570  66.6  8.558558559
4  710  88.8  7.995495495
5  830  111  7.477477477
6  940  133.2  7.057057057
7  1040  155.4  6.692406692
8  1150  177.6  6.475225225
9  1240  199.8  6.206206206
10  1320  222  5.945945946
12  1490  266.4  5.593093093
14  1640  310.8  5.276705277
16  1740  355.2  4.898648649
18  1910  399.6  4.77977978
APC1340 22.2  1  230  22.2  10.36036036  52°
2  410  44.4  9.234234234
3  570  66.6  8.558558559
4  720  88.8  8.108108108
5  870  111  7.837837838
6  980  133.2  7.357357357
7  1110  155.4  7.142857143
8  1210  177.6  6.813063063
9  1310  199.8  6.556556557
10  1440  222  6.486486486
11.7  1620  259.74  6.237006237

KV600:

Specifications
推荐多旋翼重量≤620g×轴数
Stator Dlameter 40.6mm 定子外径
Stator Thickness 8mm 定子序度
No.of Stator Arm5 24  定子槽数
No.of Stator Poles 22  定子极数
Motor Kv 600  电机KV
No-Load Current(A/10V) 0.4A 空载电流
Motor Resistance 121mo 电机电阻
Max Continuous Current 20A/305 最大连续电流
Max Continuous Power 330W 最大连续功率
Weight 114g 重量(含长线)
Outside Dlameter 46.1mm 转子直径
Shaft Diameter 3.175mm 出轴直径
Body Length 25.5mm 电机长度
Overall shaft Length 34mm 电机含轴总长度
Max Lipo Cell 4S 最大电池节数
Recommended Prop(inch) APC1147 APC1238
APC1447 DJI1555
推荐螺旋桨规格
45效率型
Prop (inch) Volts(V) Amps(A) Thrust (g) Watts(W) Efficiency (g/W) 全油门负载温度
APC1147 14.8  1  170  14.8  11.48648649  42°
2  290  29.6  9.797297297
3  400  44.4  9.009009009
4  500  59.2  8.445945946
5  590  74  7.972972973
6  680  88.8  7.657657658
7  750  103.6  7.239382239
8  830  118.4  7.010135135
9  900  133.2  6.756756757
10  960  148  6.486486486
12  1100  177.6  6.193693694
13.5  1210  199.8  6.056056056
APC1238 14.8  1  170  14.8  11.48648649  45°
2  300  29.6  10.13513514
3  410  44.4  9.234234234
4  510  59.2  8.614864865
5  610  74  8.243243243
6  700  88.8  7.882882883
7  780  103.6  7.528957529
8  860  118.4  7.263513514
9  930  133.2  6.981981982
10  1000  148  6.756756757
12  1130  177.6  6.362612613
14  1270  207.2  6.129343629
16  1380  236.8  5.827702703
17.1  1460  253.08  5.768926822
APC1340 14.8  1  160  14.8  10.81081081  40°
2  290  29.6  9.797297297
3  400  44.4  9.009009009
4  510  59.2  8.614864865
5  620  74  8.378378378
6  720  88.8  8.108108108
7  810  103.6  7.818532819
8  910  118.4  7.685810811
9  1000  133.2  7.507507508
10  1080  148  7.297297297
11.8  1240  174.64  7.10032066
APC1447 14.8  1  190  14.8  12.83783784  66°
2  330  29.6  11.14864865
3  460  44.4  10.36036036
4  550  59.2  9.290540541
5  650  74  8.783783784
6  730  B8.8 8.220720721
7  820  103.6  7.915057915
8  910  118.4  7.685810811
9  1000  133.2  7.507507508
10  1060  148  7.162162162
12  1200  177.6  6.756756757
14  1310  207.2  6.322393822
16  1440  236.8  6.081081081
18  1550  266.4  5.818318318
21.6  1750  319.68  5.474224224
22.5  1810  333  5.435435435
DJI1555 14.8  1  210  14.8  14.18918919  70°
2  360  29.6  12.16216216
3  480  44.4  10.81081081
4  580  59.2  9.797297297
5  690  74  9.324324324
6  780  B8.8 8.783783784
7  860  103.6  8.301158301
8  950  118.4  8.023648649
9  1030  133.2  7.732732733
10  1100  148  7.432432432
12  1250  177.6  7.038288288
14  1380  207.2  6.66023166
16  1480  236.8  6.25
18  1590  266.4  5.968468468
22.8  1920  337.44  5.689900427

KV690:

Specifications
推荐多旋翼重量s620g×轴数
Stator Diameter 40.6mm 定子外径
Stator Thickness 8mm 定子厚度
No.of Stator Arms 24  定子槽数
No.of Stator Poles 22  定子极数
Motor Kv 690  电机KV
No-Load Current(A/10V) 0.6A 空载电流
Motor Resistance 67mg 电机电阻
Max Continuous Current 24A/30S 最大连续电流
Max Continuous Power 450W 最大连续功率
Weight 110g 重量(含长线)
Outside Diameter 46.1mm 转子直径
Shaft Diameter 3.175mm 出轴直径
Body Length 25.5mm 电机长度
Overall Shaft Length 34mm 电机含轴总长度
Max Lipo Cell 4S 最大电池节数
Recommended Prop(inch) APC1147APC1238 推荐螺旋桨规格
4S动力型
Prop (inch) Volts(V) Amps(A) Thrust(g) Watts(W) Efficiency(g/W) 全油门负载温度
APC1147 14.8  1  170  14.8  11.48648649  51°
2  280  29.6  9.459459459
3  390  44.4  8.783783784
4  490  59.2  8.277027027
5  580  74  7.837837838
6  660  88.8  7.432432432
7  730  103.6  7.046332046
8  790  118.4  6.672297297
9  850  133.2  6.381381381
10  940  148  6.351351351
12  1050  177.6  5.912162162
15  1230  222  5.540540541
18  1380  266.4  5.18018018
21.9  1620  324.12  4.998148834
APC1238 14.8  1  180  14.8  12.16216216  71°
2  290  29.6  9.797297297
3  400  44.4  9.009009009
4  500  59.2  8.445945946
5  600  74  8.108108108
6  690  88.8  7.77027027
7  750  103.6  7.239382239
8  820  118.4  6.925675676
9  900  133.2  6.756756757
10  970  148  6.554054054
12  1100  177.6  6.193693694
15  1270  222  5.720720721
18  1430  266.4  5.367867868
21  1560  310.8  5.019305019
27.4  1870  405.52  4.611363188
APC1447 14.8  1  190  14.8  12.83783784  87°
2  330  29.6  11.14864865
3  450  44.4  10.13513514
4  550  59.2  9.290540541
5  640  74  8.648648649
6  710  88.8  7.995495495
7  800  103.6  7.722007722
8  860  118.4  7.263513514
9  910  133.2  6.831831832
10  990  148  6.689189189
12  1150  177.6  6.475225225
15  1300  222  5.855855856
18  1470  266.4  5.518018018
21  1600  310.8  5.148005148
24  1730  355.2  4.870495495
31.8  1970  470.64  4.185789563

FAQS

1. HOW DO I PLACE MY ORDER?

Simply choose your style on the product page then click the “Add To Cart” button and follow the simple steps to complete your order.

We’ll prepare your order and let you know when it's on its way!

2. HOW LONG WILL IT TAKE TO SHIP MY ORDER?

Orders typically ship within 5 to 10 business days. For international orders, transit will take an additional 1 to 2 weeks.

3. MY TRACKING NUMBER ISN’T WORKING

Tracking numbers can take 3-5 days to appear in the shipping carrier's system. Occasionally, the shipping carrier can lose an order. If the tracking number is still not working within a few days, please contact the shipping carrier.

4. I NEED HELP WITH A LATE ORDER

Orders typically ship within 5 to 8 business days. For international orders, transit will take an additional 1 to 2 weeks.

If your order has not arrived after 10 business days (domestic) and 20 business days (international), please contact our team, we are happy to assist.

Products that need to be customized, production time is 10-25 days to ship, product details will be announced.

5. WHAT TYPE OF PAYMENTS DO YOU ACCEPT?

We accept Visa, Mastercard as well as Paypal.

6. WHEN WILL MY CARD BE CHARGED?

Just after your order has been successfully placed.

7. HOW SECURE IS MY PERSONAL INFORMATION?

We adhere to the highest industry standards to protect your personal information when you checkout and purchase.

Your credit card information is encrypted during transmission using secure socket layer (SSL) technology, which is widely used on the Internet for processing payments. Your credit card information is only used to complete the requested transaction and is not subsequently stored.

7.Shopping safety guaranteed

We use PAYPAL to collect payment. For details, you can check the official website of PAYPAL to guarantee your shopping funds.

https://www.paypal.com/webapps...

8.What delivery?

We cooperate with DHL, FedEx, EMS shipping companies, you can choose freely when placing orders;

DHL : https://www.dhl.com/

FedEx :https://www.fedex.com/

EMS:https://www.ems.com.cn/

Logistics Tracking:https://www.uavmodel.com/apps/17TRACK

9.Refund issue?

Due to the buyer's own reasons, resulting in a refund. This website will not be responsible for the payment of processing fees. Shipping charges are not charged for returned products.

If you pay by credit card, your payment could be somehow denied at the checkout by our system in defense against possible credit card fraud. It's a good idea to call your credit card company or bank ahead of time to let them know about the purchase so that it doesn't get declined.
Under such circumstance, here are 3 solutions for you:
1. If you have a PayPal account, please try to pay by PayPal.
2. Please switch to your other credit/debit cards.
3. If you do not have a PayPal account, please select PayPal still at the checkout page & click the complete order button. Then you'll be directed to a page with access to both PayPal and Debit/Credit card payment (for the latter option, you don't have to register for PayPal).
As following steps:


Step 1. Select PayPal (even if you don't have a PayPal account)


Step 2. Click on "Pay with Debit or Credit Card".


Step 3. Fill in your credit card info and complete your order.

Bank transfer information:

Account Number: 63001185921
Holder Name: Xiamen Gaoteng Trading Co., Ltd.
Support Currency: AUD CAD CHF DKK EUR GBP HKD JPY NOK NZD SEK SGD USD ZAR
Bank Name: JPMorgan Chase Bank N.A. Hong Kong Branch
Bank Location Country: HONG KONG, CHINA
Bank Address: CHATER HOUSE, 8 CONNAUGHT ROAD, CENTRAL, HONG KONG
Account Type: Current
Swift/BIC: CHASHKHH (CHASHKHHXXX,If 11 characters are required)
Routing Number: 007863
Bank Code: 007
Branch Number: 863
Please include the following memo/message to receiver when making a payment: [Buyer Name][Invoice/Contract Number][Product]

UAVMODEL

Ownership:

UAVMODEL CO., LTD.;

ZHANGZHOU YICHENG TECHNOLOGY CO., LTD.;

XIAMEN GAOTENG TECHNOLOGY CO., LTD.

Email:Sales@uavmodel.com

Phone: +8613015671328

313, No.25, Jingxia Road, Wenpu Industrial Park, Jiaomei Town, Taiwan Investment Zone,

Unit 2502-3, No.1110, Jimei North Road, Software Park, Torch High-tech Zone, Xiamen

产品图片1 产品图片2

What we really do?

UAVMODEL is a leading UAV airframe manufacturer. Our UAV platforms serve professional needs in industrial inspection, gas and oil, precision agriculture, mapping, public safety, construction, forestry and defense.

10+ Years of Experience

500+ Successful Cases

12+ Industry Awards

Our Vision

We are committed to the R&D of medium and large UAVs and specialized UAV technologies for complex environments. Our focus includes design, production, testing, sales, and service, providing comprehensive solutions based on our technology.

愿景图片1 愿景图片2

100% Client Satisfaction is Our Priority

Using Complex & Reliable Digital Solutions

High Customer Support Standards

Working with Leading Market Experts

Cooperate with Us!

Professional and friendly customer service.
Free or affordable shipping.
Multiple payment options: PayPal, Credit Card and Bank Transfer.
UAVMODEL is acceptable.
Fast and reliable shipping with proper product declaration.

运输图片

Support 24/7

24/7 Live Technical Expertise and Support
Speak with our Engineers for Answers and Advice
Customer Portal for Support Requests and Account Management


© 2025 UAVMODEL. All rights reserved.

Free shipping

Some countries over $100

130-1567-1328

sales@uavmodel.com

Free returns

No questions asked

TrustScore 4.9

More than 1000
