Three-axis stabilized GIMBAL CAMERA

$2,810.99 Sold out
Shipping calculated at checkout.
0 reviews
TSHD10T3

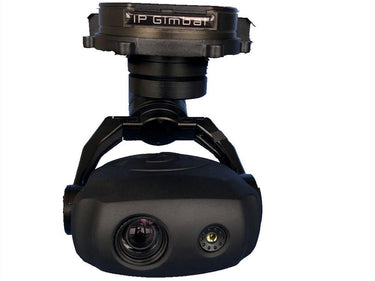

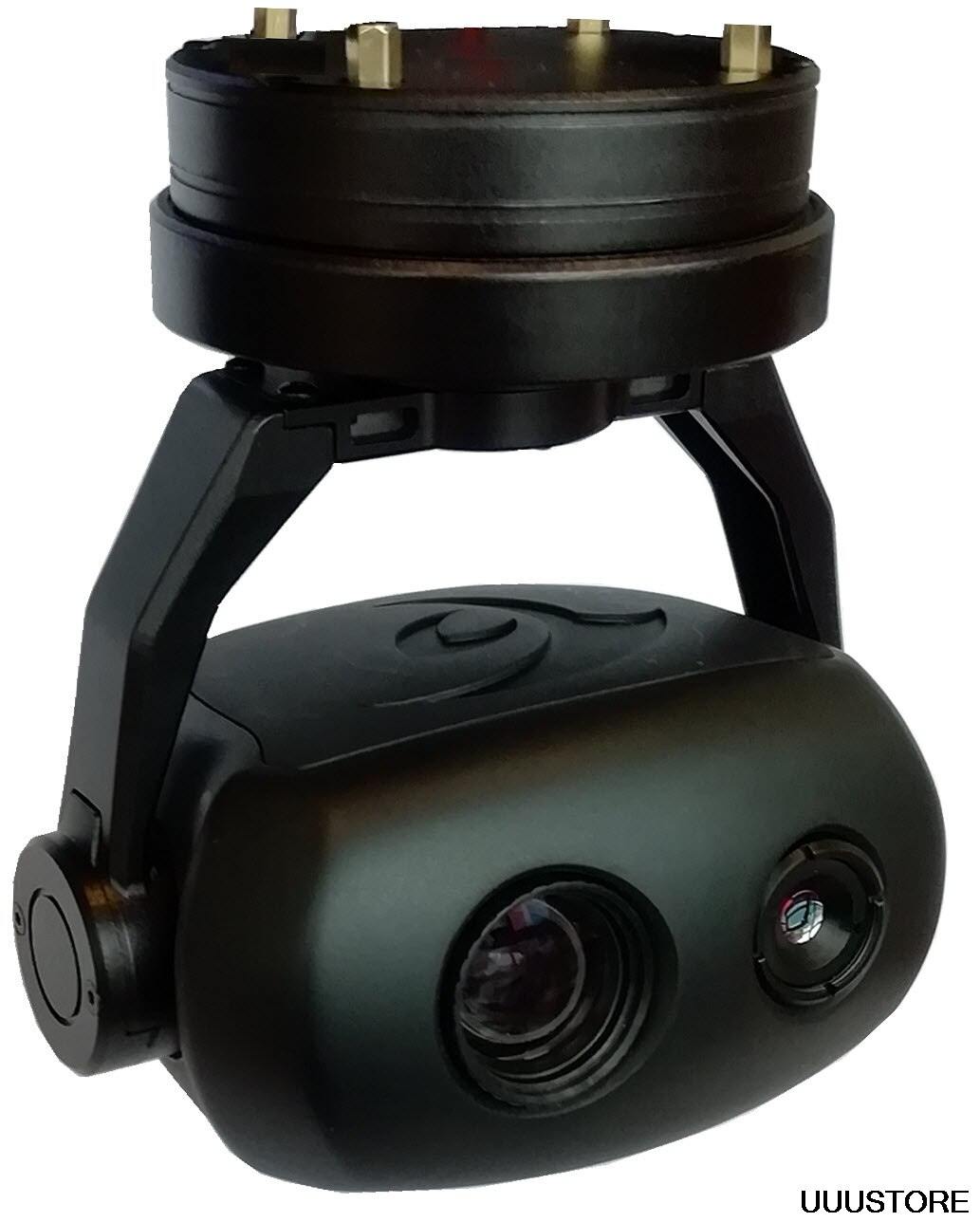

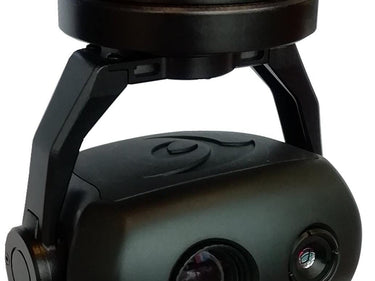

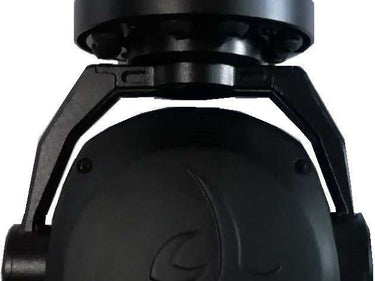

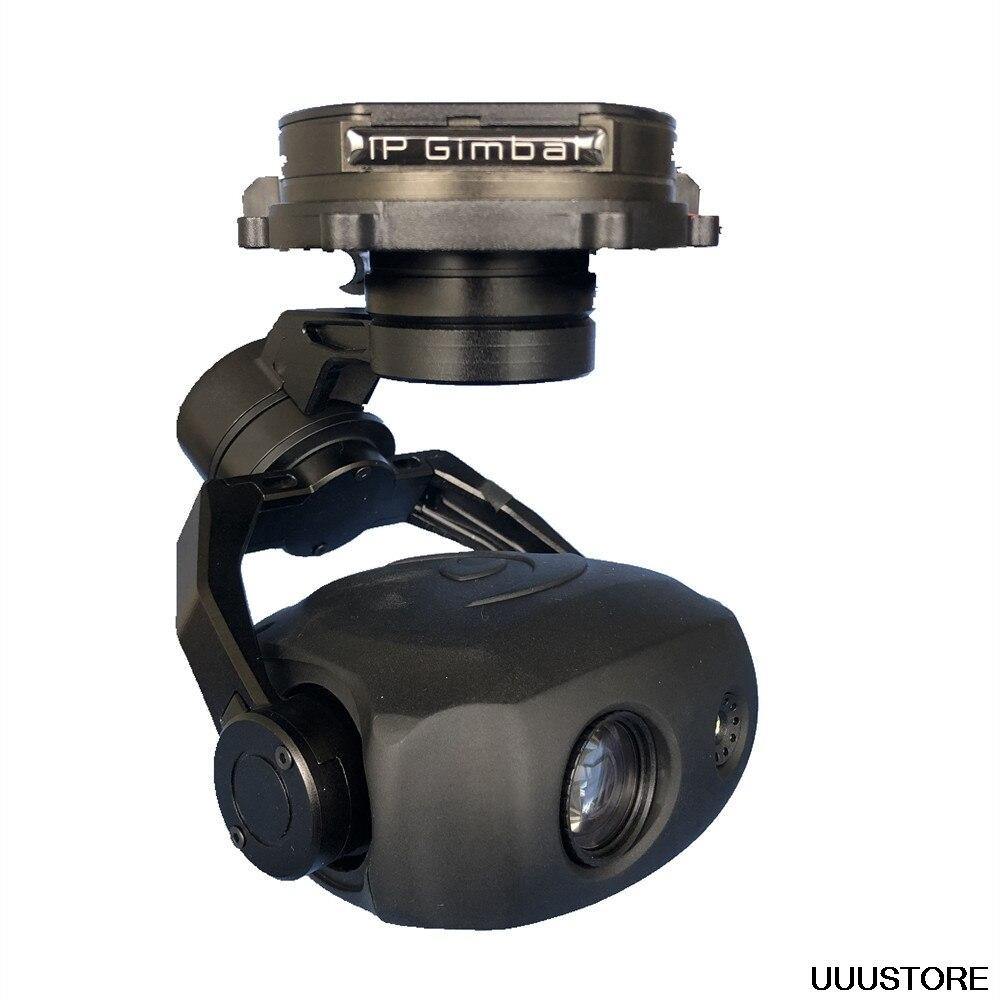

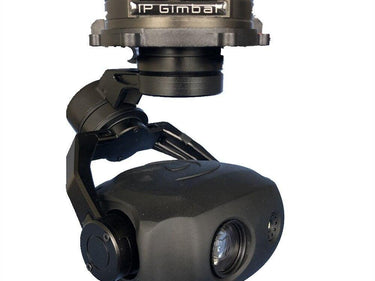

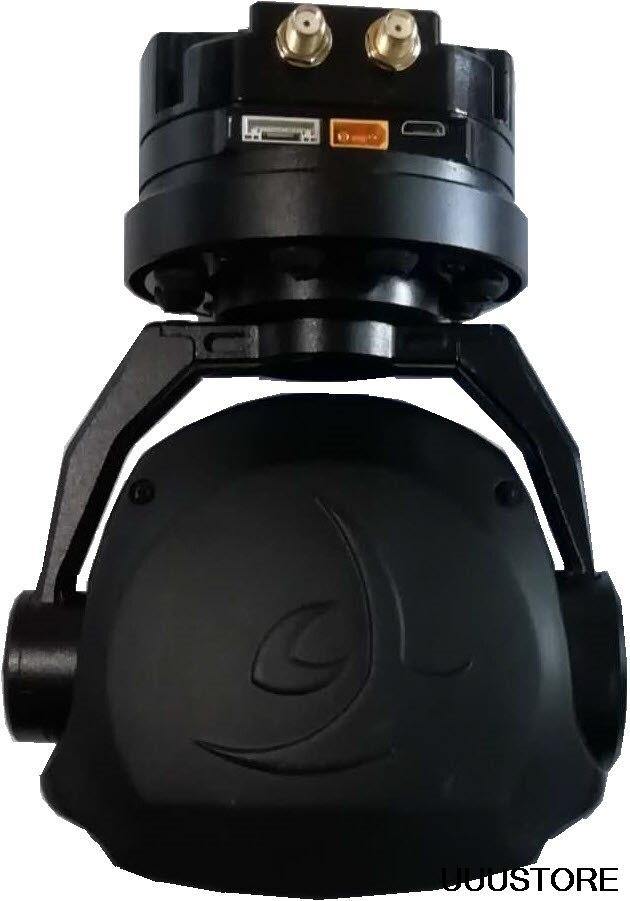

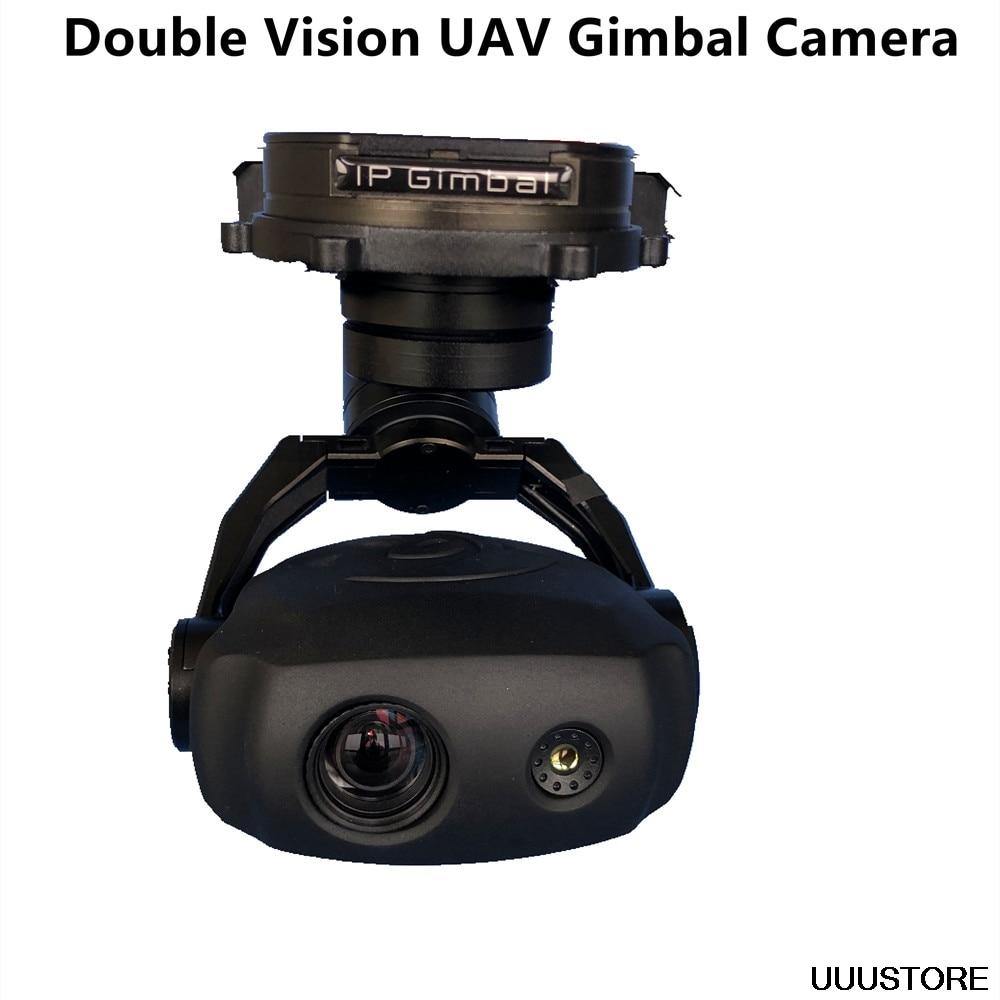

TSHD10T3 three-axis 10x optical zoom Infrared thermal imaging + visible HDMI camera for UAV FPV drone

The TSHD10T3 is a zoom dual-optical integrated system with integrated 10x optical zoom camera, thermal imaging, high-precision professional three-axis stabilization cloud, with high-precision encoder FOC control scheme,  high stability, small size, light weight and strong function;  The system supports HDMI picture-in-picture output, local TF storage, dual-synchronous recording, pseudo-color switching, temperature measurement, support for a variety of picture-in-picture modes.



  1. Working Environment: -10 ° to + 45 ° / 20% to 80% RH
  2. Storage conditions: -20 ° to + 60 ° / 20% to 95% RH
  3. Transportation: the pod after wrapping is complete, to meet the aviation, road, rail and waterway transport requirements.

Visible light camera parameters:

  1. SENSOR pixels: 400 million pixels
  2. Focal length: f = 4.9to49 mm ± 5%
  3. Angle of view (FOV):
    1. D: WIDE 66.6º ± 5% TELE 7.2º ± 5%
    2. H: WIDE 53.2º ± 5% TELE 5.3º ± 5%
    3. V: WIDE 399.8º ± 5% TELE 4.2º ± 5%
  4. Zoom: motorized optical zoom 10x
  5. Zoom: electric zoom and continuously adjustable
  6. Image and video storage format:
    1. Image: jpeg format; choose from a variety of pixel
    2. Video: mp4 format; 1080P or 720P to choose from

Thermal infrared camera parameters:

  1. Detector Resolution: 320 * 240
  2. Pixel pitch: 12μm
  3. Wavelength range: 8 ~ 14μm
  4. Type: Uncooled micro-bolometer
  5. Thermal sensitivity NETD: -5 ° to 150 ° (5% accuracy)
  6. Field of view: 6.5mm lens, angle: 34.4 x 25.8
  7. Refresh rate: 9Hz
  1. Image and video storage:
    1. Image: 320 * 240
    2. Video: 320 * 240



Voltage

3S or 6S (DC 1 2 V -26V )

power

Dynamic 1 2 W

Working characteristics

Rolling angle range

-45°~ +135°

Pitch angle range

- 120 ~+ 120 °

Heading angle range

-150°~+150°

Angle and roll angle angle jitter

±0.02°

Horizontal angle jitter

±0.03°

One-click back function

One-click automatic rapid return to the initial position

PTZ control speed adjustable

Support angle and speed control

When the pan/tilt is rotated, the speed is adaptive based on the current speed mode and the visible light camera multiple.

Storage TF card

Support 16G to 128G class10 TF card

control method

Support UART control and SBUS control



Characteristics

HDMI picture-in-picture switching, pseudo color switching, temperature measurement

White light camera parameters

CMOS size

1/3 inch 4 00 megapixel CMOS SENSOR

optical zoom

10x HD optical zoom lens, f= 4.9 to 49 mm

Focusing time

Real-time fast focus function, focus time <1S

Video output

HDMI 1080P 60FPS , video stream local TF storage

Field of view (FOV)

D : WIDE 66.6o ± 5% TELE 7.2o ± 5%

H : WIDE 53.2o ± 5% TELE 5.3o ± 5%

V : WIDE 39.8o ± 5% TELE 4.2o ± 5%

Support mode

1080P 60fps

Thermal Imaging

Resolution

320*240 pixel

Pixel spacing

12 μ m

Types of

Uncooled focal plane microbolometer

Wavelength range

8 to 14 μm

Thermal sensitivity (NETD)

≤65mk@30°C

Contrast, brightness

Adjustable

Field of view

6.5mm lens, angle: 34.4 x 25.8

Measurement function

Center point, highest temperature and lowest temperature display temperature function;

Overall size

108mm*150mm*180mm

working environment

-10 °C to +45 °C / 20% to 80% RH

Storage environment

-20 °C to +60 °C / 20% to 95% RH

main application

Drone aerial photography

weight

610 ± 20 grams
