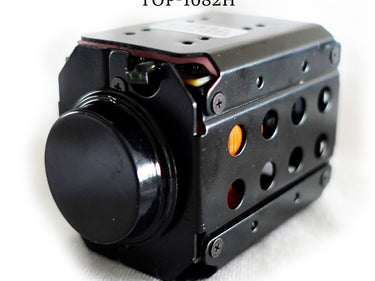

TOP-1082H 10x optical zoom camera zoom and digital zoom drone camera
TOP-1082H is a 10x optical zoom camera with a 4M CMOS sensor, which supports quick AF.
- It has two video streams that one is local TF card handling HD videos at 1080P,
- 30FPS and the other is output for AV or HDMI videos(1080P).
- Also,this product supports wireless transmitter of HD videos.
Model:TOP-1082H
Power Supply:DC 9V ∼ 12V (recommend: 9V or 12V )
Consumption:2W
CMOS
- Sensor:1/3inch
- Total Pixel:4M cmos sensor
- Valued Pixel:2688(H) x 1520(V)
- Wide Range:65dB
Optics
- Zoom :10X,f =4.9~49mm
- Minimum Distance:1.5m
- Horizontal Range:53.2°(Near) to 5.65°(far)
- Vertical Range:39.8°(Near) to 4.2°(far)
- Scanning:Progressively scan
Function
- Video Recording：1080P 30fps Local TF card record
- HDMI output：1080P/720P/480P 60fps HDMI1.4
- Analog output：Standard CVBS 1Vp-p
- SNR：38dB
- Min illumination：Color 0.05lux @ F1.6
- BLC：Support back light compensation
- IRCUT :Color/mono mode
- AE:Auto
- AWB:Atuo /menu setting
- Shutter:Auto
- Control Mode:UART control /IR control /UAV PWM
- Protocal:PELCO-D,Hitachi and VISCA protocal
- Focus Mode:Auto/manual/one time focus
- AF Time:< 2 secs
- Initialize:Auto
- Preset Position:20set
- Image Flip:Mirror /overturn
- Interface:TF card ,6pin 1.27mm +5pin connector, 30P coaxial cable
- HD HDMI:30P cable outside,default is D type HDMI and TF card port
- Device Size:63mm×37mm×45mm
- Working Condition:0℃ to +55℃ / 20% to 80% RH
- Storage Condition:-20℃ to +60℃ / 20% to 95% RH
- Weight:122g
