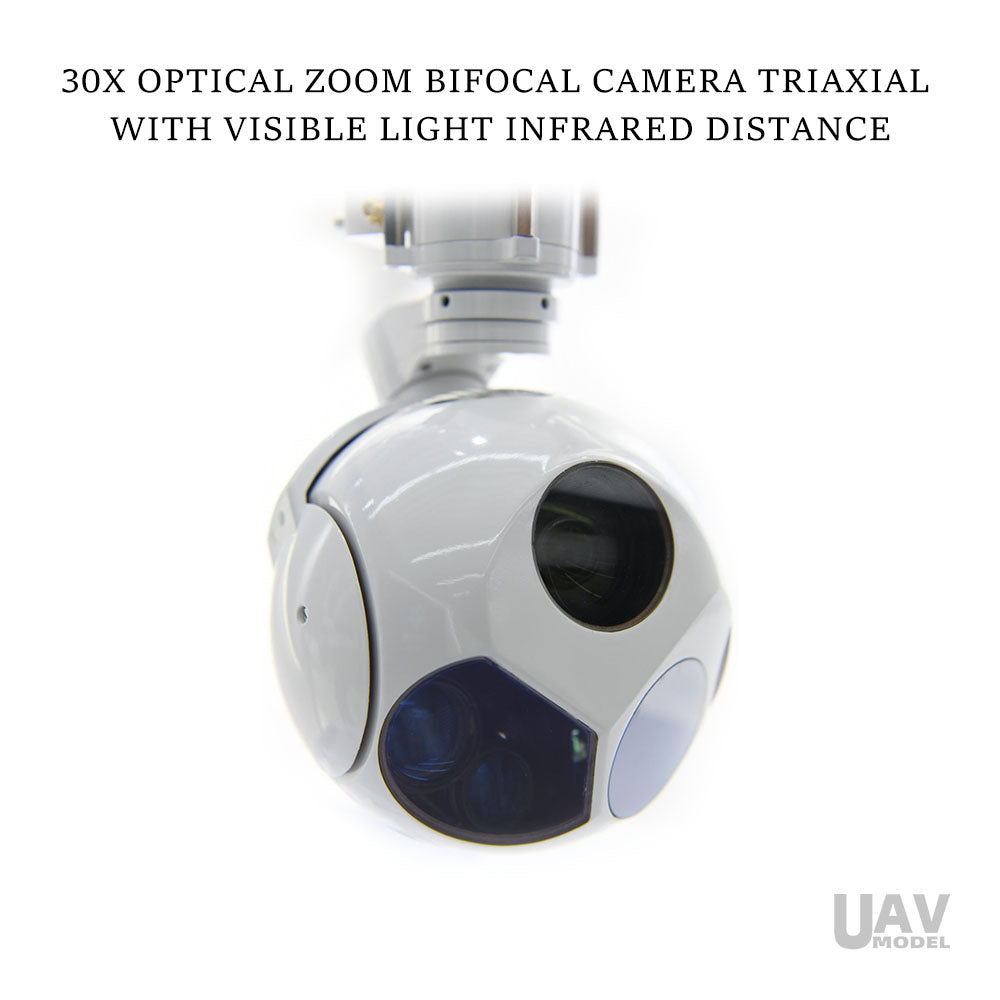

System  Specification

Stabilization:≤ 100 µrad(1σ) (2 ° / 1Hz, 1° / 2Hz swing

Weight: ≤ 800g

Size:≤Φ 120mm× 171mm

Environmental protection:IP64

Operating Temperature:-20℃~60℃

Rotation Limits:

Azimuth axis: n× 360 ° continuous rotation

Pitch Axis: -110 °~+ 10 ° (0 ° horizontal, positive upward)

Slew Rate: 50 ° / s

Power:15W typical/ 30W peak

Voltage:10 V ~ 14 V

Video out: Digital H.264 encoded video

Control interface：RS422

Onboard Image Processor Specification

Object Tracking： Yes

Scene Steering: yes

Software Stabilization: Yes

Software Roll Correction： Yes

Video Output:  HD-SDI,1080p,30Hz

H264.encoding:  Yes

Geo-Location Feature:  Yes

Moving Map Software:  Yes

EO Sensor Specification

Field of View： 63.7 º~2.3 º

Resolution:1920x1080

Optical Zoom：30x

Digital Zoom:  2x

IR Sensor Specification

Type: LWIR uncooled

Field of View:17.4 º× 14 º

Resolution:640x512

Frame Rate:30fps

Focal length :25 mm/F1.0

Sensitivity:50mK
