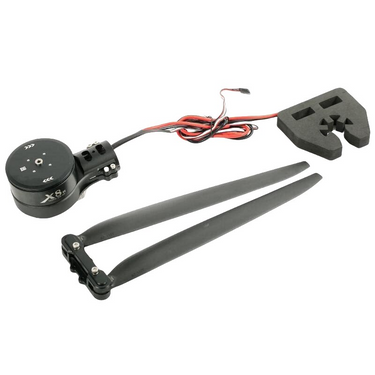

Hobbywing X8 Rotor Drone Power Kit

$218.00

Last 90 Days Sales: PCS

HWX8-KCW
TYPE: X8 Kit (40mm Pipe Diameter) CW

Order ships in 7~15DAYS business days.

Secure Checkout & Bank Transfer

American Express
Diners Club
Google Pay
JCB
Maestro
Mastercard
PayPal
Union Pay
Visa
Generic

Customers who can not place an order please contact us;

Tag : Agricultural Drone Components , Drone , Drone Power Kit , High Thrust Drone Kit , Hobbywing X , Hobbywing X8 , Lightweight Drone Power , Lightweight Drone Power Solution , Ready-to-Use Drone , Ready-to-Use Drone Power , Waterproof Drone , Waterproof Drone Power Supply , Waterproof Drone Power System
TYPE: X8 Kit (40mm Pipe Diameter) CW

Core Overview

The X8 is a highly integrated, ready-to-use all-in-one power system designed for lightweight, efficient agricultural drones. The kit innovatively integrates the motor, ESC, propeller adapter, and motor mount in advance and comes standard with 30-inch carbon composite folding propellers, achieving "ready to use" and greatly simplifying the installation process. Optimized for medium loads of 5-7kg/axis, the maximum single-axis thrust reaches 15kg. The product features IPX6 ultra-strong protection and patented drainage design, allowing direct water rinsing, fearless of harsh field environments. It is an ideal choice for lightweight agricultural operations that pursue rapid deployment, high reliability, and easy maintenance.

Core Technology Advantages

🧩

Integrated Design, Ready to Use

Pre-Integrated: The motor, ESC, propeller adapter, and motor mount are pre-assembled and debugged as an integrated unit before leaving the factory. Users do not need complex wiring and matching, making installation extremely convenient.

Quick Adaptation: Supports two carbon tube diameters: 35/40mm (40mm requires a separate adapter), offering flexible compatibility.

🛡️

Ultra-Strong Protection, Fearless of Harsh Environments

IPX6 Protection Level: Overall protection level reaches IPX6, with structural design featuring liquid and debris drainage channels.

Patent Rinsing Design: Can be directly rinsed with clean water after operation, easily handling common harsh agricultural conditions like rain, pesticides, salt spray, and dust.

Optimized Power and Intelligent Interaction

Efficient FOC Algorithm: Based on FOC (Field-Oriented Control) PMSM optimization algorithm, perfectly matching the ESC, motor, and propeller for low noise, high control accuracy, and high efficiency.

High-Brightness LED Status Light: Integrated with LED lights that can be set to a color or turned off, not only providing illumination but also indicating system working status, issuing warnings in case of abnormalities, enhancing safety.

Supports Firmware Upgrade: The power system firmware can be upgraded by connecting to a computer via the separately purchased Hobbywing DataLinkBox, continuously synchronizing the latest optimized product features.

🔧

Robust Reliability and Convenient Maintenance

Modular Design: Uses high-strength aluminum alloy and reinforced structure, with ultra-strong impact resistance. In case of damage, customers can quickly replace the entire integrated unit, a single or a pair of propellers, or the propeller adapter, greatly shortening field maintenance time.

Intelligent Data and Protection: The ESC features multiple intelligent protections such as power-on self-test, overcurrent, and stall protection, and can output full system operating data (throttle, RPM, voltage, current, temperature, etc.) to the flight controller or DataLinkBox in real-time for monitoring and diagnosis.

Usage Recommendations

  • Accurate Load Matching: This kit is optimized for a single-axis load of 5-7kg (aircraft total load calculated based on the number of axes). Please strictly control the takeoff weight within this range to achieve the claimed high efficiency of 9.5-8.6 g/W and optimal endurance.
  • Utilize Integration Advantages: Make full use of its "ready-to-use" feature to quickly complete aircraft assembly. In the field, have spare integrated units, propellers, and other modular spare parts ready to achieve minute-level quick replacement, maximizing uptime.
  • Proactive Cleaning and Upgrades: After operation, use its washable feature to clean promptly with clean water, extending lifespan. Follow official updates and perform firmware upgrades via DataLinkBox to obtain continuous performance optimizations.
  • Monitor Status Indicators: Before and after flight, observe the high-brightness LED lights on the motor. Any abnormal flashing pattern is an important warning signal from the system; inspect promptly.
  • Advanced Data Loop Application: For teams pursuing refined management, it is recommended to configure the Hobbywing DataLinkBox, enabling real-time collection and closed-loop control of 8-channel power data, deeply optimizing flight strategy and energy efficiency.

Product Parameters

Basic Specifications

Category Parameter Item Detailed Specification
Basic Parameters Product Name X8
Maximum Thrust 15kg
Single Axis Recommended Thrust 5-7kg
Recommended Thrust Efficiency 9.5-8.6 g/W
Voltage Range 18-54V
Rated Voltage 12S-46V
Compatible Battery 12S (LiPo)
Compatible Carbon Tube Diameter 35mm / 40mm (40mm requires adapter)
Power System Weight (with wires, propeller) 1150g
Operating Environment Temperature -20 ~ 50 ℃
Dust/Water Protection Level IPX6
Rated Input Power 950W
Rated Output Power 810W
ESC Product Model XRotor 80A-FOC
Communication Method UART
Maximum Allowable Current (30s) 80A
Continuous Current 20A
Throttle Calibration Not Supported
Dual Throttle Not Supported
PWM Pulse Width 1100-1940μs
BEC None
Motor Product Model 8120-100KV
Stator/Pole Count 36N40P
Motor Outer Diameter Φ88.6mm
Propeller Product Model MFP 30x11 (30-inch folding propeller)
Total Weight 191±5g
Main Material Carbon Composite (Carbon Fiber Reinforced Nylon Composite Material)

Test Data Table

Operating Voltage: 46V / 12S LiPo, Propeller: MFP 30x11

Test Condition Statement: The above data was measured by Hobbywing laboratory at room temperature 25℃, sea level altitude, by varying throttle input.

Throttle (%) Thrust (g) Current (A) Input Power (W) RPM Efficiency (g/W) Torque (N·m) Output Power (W)
33% 1,629 2.7 123.6 1,332 13.2 0.61 85.2
37% 2,009 3.4 156.2 1,469 12.9 0.74 113.7
39% 2,468 4.3 200.0 1,623 12.3 0.90 152.3
42% 2,982 5.5 254.0 1,780 11.7 1.07 200.2
48% 3,535 6.9 317.5 1,935 11.1 1.27 256.7
51% 4,467 9.5 435.7 2,168 10.3 1.59 361.7
54% 5,008 11.1 510.3 2,291 9.8 1.78 427.6
57% 5,480 12.6 578.5 2,392 9.5 1.95 487.9
60% 5,973 14.2 653.1 2,493 9.1 2.12 553.4
63% 6,490 16.0 734.7 2,593 8.8 2.30 625.0
66% 7,032 17.9 824.3 2,695 8.5 2.49 703.2
69% 7,957 21.4 986.2 2,895 8.1 2.82 843.9
72% 8,447 23.4 1,076.6 2,943 7.8 2.99 922.1
75% 9,473 27.7 1,277.1 3,111 7.4 3.36 1,094.9
78% 10,007 30.1 1,387.0 3,195 7.2 3.55 1,189.3
81% 10,958 34.6 1,592.7 3,339 6.9 3.90 1,364.9
84% 12,042 40.0 1,840.4 3,494 6.5 4.30 1,574.2
87% 12,436 42.0 1,933.4 3,548 6.4 4.45 1,652.1
90% 13,522 47.7 2,195.1 3,688 6.2 4.84 1,868.0
100% 14,715 54.0 2,485.2 3,828 5.9 5.24 2,100.3

Frequently Asked Questions (FAQ)

Q: How much time can the "integrated power system, ready to use" specifically save for me?

A: Traditional split power systems require users to assemble the motor, ESC, and motor mount themselves, and perform wiring, insulation, and debugging, a process that may take over 30 minutes and is error-prone. The X8 is factory-integrated, debugged, and tested. You only need to fix it on the arm carbon tube and connect the power and signal wires, reducing installation time to within 5 minutes and completely avoiding wiring error risks.

Q: The promotion says "can be directly rinsed with clean water." Can I really rinse it directly like washing a car?

A: Yes, but pay attention to the method. With IPX6 protection and patented drainage channel design, you can use low-pressure water flow to rinse the power system surface to remove pesticides, mud, and other dirt. However, it is forbidden to use high-pressure water guns for close-range direct spraying, especially at connector areas. After rinsing, it is recommended to air-dry or blow-dry before storage.

Q: What abnormalities can the LED light indicate?

A: The high-brightness LED light can be constantly on or flash in a set color during normal system operation. When faults such as stall, overcurrent, overheating, signal loss, etc., occur, it switches to specific rapid flashing or color change patterns, allowing the pilot to visually detect abnormalities from a distance and take timely measures to ensure safety.

Q: Is the DataLinkBox a must-buy? What is it used for?

A: For basic flight, it is not essential. But for professional users, it is highly recommended. Its core functions are two: 1) Advanced Diagnosis: Can read detailed real-time operating data and historical fault records for precise troubleshooting; 2) System Upgrade: The only way to upgrade the power system firmware, obtaining the latest performance optimizations and feature improvements released by the manufacturer.

Q: My aircraft's carbon tube is 40mm. What should I do?

A: You need to purchase a "tube diameter adapter" separately. The X8 standard configuration is compatible with 35mm carbon tubes. By installing a dedicated adapter kit, it can be securely mounted on 40mm carbon tubes, expanding aircraft compatibility. Please confirm the adapter accessory with the seller when purchasing.

X8 D35mm CAD
X8 D40mm CAD
