EV-PEAK Yonghang U5+ RC Model Balance Charger

$625.00

Last 90 Days Sales: PCS

6071650829831
TYPE: U5+ — Euro Plug

결제 후 7~15days일 이내 배송 예정;

Secure Checkout & Bank Transfer

American Express
Diners Club
Google Pay
JCB
Maestro
Mastercard
PayPal
Union Pay
Visa
Generic

주문이 불가능한 고객님께서는 저희에게 연락해 주시기 바랍니다;

Tag : Balance Charger , Balance Charger Accessories , Balance Charger for RC Models
TYPE: U5+ — Euro Plug

EV-PEAK U5+ Dual-Channel Smart Balance Fast Agricultural Drone Battery Charger

Dual-Channel Independent

Charge 2 batteries simultaneously


Ultra-High Power

3000W / 30A Fast Charging


Multiple Protections

Overcurrent / Overvoltage / Overtemperature / Reverse Polarity


Smart Communication

CAN bus + Smart Battery Recognition

EV-PEAK U5+ is a 3000W / 30A dual-channel smart balance fast agricultural drone battery charger, designed for agricultural drones, inspection, aerial photography, firefighting, surveying, patrol, and plant protection. With dual independent outputs, it can charge 2 batteries at the same time; when paired with the UB5-Pro Manager, it expands to 8 batteries at once, eliminating frequent battery swaps. Charging order is automatically determined by each battery's internal voltage (from highest to lowest, up to 30A). The LCD screen clearly displays operating mode, battery current, voltage, capacity, and remaining charge time, and offers balance charging, high-current charging, and slow charging modes. Simply press the charge button or leave it to auto‑start – it supports multiple battery types (LiPo/LiHV/Smart Battery) without complicated setup. Built‑in multiple protection systems include overcurrent, overvoltage, overcharge, overtemperature, short circuit, reverse polarity, and leakage protection, plus forced air cooling, large aluminum heatsinks, and a metal housing for durability. Supports CAN communication, compatible with various protocols, recognizes smart batteries and manages charging autonomously; features anti‑spark (arc‑extinguishing) technology and obstacle‑avoidance recognition (skips problematic batteries and attempts repair). Versatile for both recreational and professional agricultural drones, supporting 6S / 10S / 12S / 14S batteries.

Dual-Channel Independent Charging 3000W / 30A Ultra-High Power Supports 6-14S LiPo / LiHV / Smart Batteries Multiple Protections: Overcurrent, Overvoltage, Overtemperature, Reverse Polarity CAN Communication + Smart Battery Recognition Expand to 8-10 Channels with Manager
Note: Before use, confirm that the battery type is LiPo / LiHV / Smart Battery and the cell count is 6-14S. Ensure the input voltage is within 100-240V and use a grounded outlet. Always keep the charger and batteries within sight during charging and strictly follow the instruction manual.
Product Specifications
AC Input Voltage 100-240V
Charging Power Max. 3000W (under AC200-240V: 1500W per channel; under AC100-180V: 750W per channel)
Charging Current Max. 30A
Balance Current 1000mA per cell
Battery Types LiPo / LiHV / Smart Battery
Discharge Power Max. 100W × 2
Cell Count 6S / 10S / 12S / 14S
Balance Accuracy ±20mV
Output Channels Dual-channel (expandable to 10 channels with manager)
Output Protection Overvoltage, Undervoltage, Short Circuit, Overtemperature, Reverse Polarity
Cooling System Forced air cooling
Upgrade Method USB external port
Dimensions 320 × 190 × 256mm
Weight 10.2 KG
Frequently Asked Questions
Q1: What is the maximum number of batteries the charger can handle at once? Do I need extra accessories?
The built‑in dual channels can charge 2 batteries simultaneously. With the UB5-Pro Manager, it expands to 8 batteries; with the UB5+ Manager, it can expand to 10 channels, charging up to 10 battery sets at a time. The manager is sold separately.
Q2: Can I charge batteries with different capacities or different cell counts (e.g., 6S and 14S) at the same time?
Yes. When used with the manager, the charger supports mixed charging of up to 5 groups of batteries with different cell counts and capacities (compatible with 12S/14S). The intelligent system automatically detects each battery’s voltage and charges them in descending order without interference.
Q3: What happens if a problematic battery is detected during charging? Will it affect other batteries?
The manager features intelligent obstacle‑avoidance: it identifies faulty batteries, skips them, finishes charging the normal ones first, then attempts to repair the problematic battery later, maximising overall safety and efficiency.
Q4: What specific safety protections are included? Is it suitable for outdoor farm use in hot environments?
The product offers multiple protections: overcurrent, overvoltage, overcharge, overtemperature, short circuit, reverse polarity, and leakage. It also uses forced air cooling + large aluminium heatsinks + a metal housing for strong heat dissipation. However, avoid placing the charger in high‑temperature, humid, or direct sunlight environments (see warning notes). Use it in a well‑ventilated, shaded area.
Q5: How can I check the charging progress of each battery? Can I estimate the remaining time?
The LCD screen clearly displays the current, voltage, capacity, and remaining charging time for the active battery, so you don't need to check each battery's indicator. It also offers a balance charging mode to ensure each cell is balanced.
Q6: Is the charger easy to operate? Can beginners pick it up quickly?
Operation is extremely simple: just press the charge button or connect the battery (auto‑start), and the system automatically identifies and begins charging. It supports multiple battery types without complicated parameter settings, suitable for both professional and recreational use.
Package Contents
EV-PEAK U5+ Charger Main Unit × 1 AC Power Cord × 1 User Manual × 1
Note: UB5-Pro / UB5+ Managers and batteries are sold separately and not included in this package.
You May Also Like

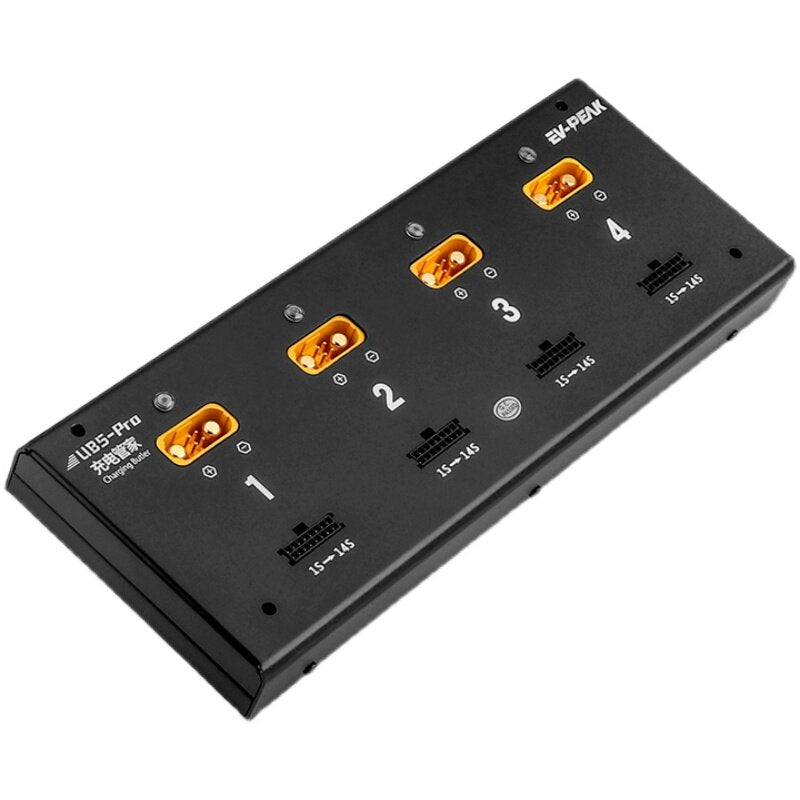

EV-PEAK UB5-Pro Smart Charging Manager
8‑Channel Expansion

EV-PEAK UB5-Pro Smart Charging Manager

Pair with U5+ to charge up to 8 batteries at once, intelligently charging from highest to lowest voltage at up to 30A.
8 Channels 30A
View Details
EV-PEAK UD3 Industrial Smart Battery Charger
Dual‑Channel Independent

EV-PEAK UD3 Industrial Smart Battery Charger

Dual‑channel independent charging, 100A high current, supports 12‑14S, wireless charging + Bluetooth remote, 9‑minute fast charge.
6000W / 100A 12‑14S
View Details
EV-PEAK U6Q 3000W 60A Intelligent Balance Charger
4‑Channel Fast Charge

EV-PEAK U6Q 3000W 60A Intelligent Balance Charger

4 independent channels, 60A adjustable current, supports 6‑14S, multiple protections + metal fireproof housing, designed for agricultural drones.
3000W / 60A 6‑14S
View Details

Parameter / Specification Item Details / Value
Model U5 +(6S/12S/14S)
AC Input Voltage 100 - 240V
Balance Current 1000mA
Charging Power Max 3000W
Charging Current Max 30A
Discharging Power 100W x2
Battery Type LiPo / LiHV / Smart Battery
Battery Cell Count 6S - 14S
Dimensions 320 x 190 x 256 mm
Weight 10.2 kg
