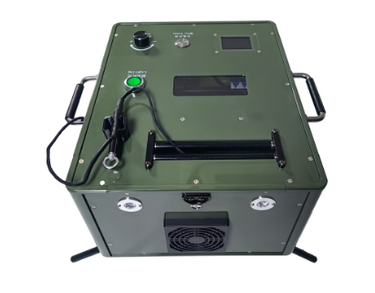

Portable AF-G1-70M automatic retraction and deployment system for tethered UAVs in green case with control panel and cables Portable AF-G1-70M automatic retraction and deployment system for tethered UAVs in green case with control panel and cables
1 4

UAVMODEL

AF-G1-70M 휴대용 자동 감김 및 전개 시스템, 테더드 UAV용

$3,064.00
AFG170M

결제 후 30~35일 이내 배송 예정;

Checkout Securely with

American Express
Diners Club
Discover
Google Pay
JCB
Maestro
Mastercard
PayPal
Union Pay
Visa

주문이 불가능한 고객님께서는 저희에게 연락해 주시기 바랍니다;

Tag : Deployment system , Portable UAV system , Retraction system , Tethered drone equipment , UAV system

1 시스템 박스 시스템
1.1 시스템 개요
AF-G1-70M 휴대용 자동 감김 및 전개 시스템은 유선 드론을 위한 감김 및 전개 윈치, 통합된 유선 케이블이 포함된 테더링 박스, 그리고 통합된 유선 지상 전원 공급 장치로 주로 구성됩니다. 이 시스템은 주로 유선 드론에 유선 전원, 정보 전송 및 케이블 감김 기능을 제공합니다. 감김 및 전개 윈치는 주로 시스템 박스, 메인 프레임, 케이블 저장 릴, 그리고 제어 회로로 구성됩니다.

1.2 주요 기술 사양

일련 번호 항목 기술 사양
1  시스템 박스 크기 395mm*316mm*220mm (길이/너비/높이)
2  단일 케이블 길이 70m
3  무게 11kg±0.3kg
4  외부 전원 공급 AC220V
5  최대 감김 속도 최소 2m/s 이상
6  작동 모드 수동 배출/능동 감김
7  지상 전원 출력

DC398-450V (최대 2000W)

1.3 사용 설명서

1.3.1 테더링 박스 패널 설명:
1) 주 전원 차단기: 테더링 박스 제어 전원 공급 및 테더링 전원 주 전원을 포함한 모든 전기 기능의 주 스위치입니다.
2) 주 전원 온/오프 버튼: 항공기 전원 공급의 온/오프 버튼입니다. 이 버튼을 누르면 시스템의 고전압 DC 전원 공급이 활성화되어 398-450V DC 고전압을 출력하며, 드론의 온보드 전원 공급에 전력을 제공합니다.
3) 주 전원 온/오프 표시등 (주 전원 온/오프 링에 통합됨): 테더링 박스 전원 상태를 표시합니다.
4) 토크 조절 노브: 감김 토크를 제어합니다.
6) 투명 패널: 윈치 케이블 길이를 시각적으로 확인할 수 있습니다.
7) LCD 디스플레이 정보:

USB 주 전원 스위치 (온/오프)

USB 출력 전압: 지상 전원 공급의 현재 DC 출력 전압을 표시합니다.

USB 출력 전류: 지상 전원 공급의 현재 DC 출력 전류를 표시합니다.

USB 출력 전력: 지상 전원 공급의 현재 출력 전력을 표시합니다.

USB 입력 전압: 지상 전원 공급의 현재 DC 입력 전압을 표시합니다.

USB 입력 전력: 시스템의 총 AC 입력 전력을 표시합니다.

1.3.2 배선 지침
1) 포함된 전원 코드를 메인 전원 또는 발전기에서 테더링 박스에 연결합니다. 한쪽 끝의 항공 플러그를 테더링 박스의 항공 출력에 직접 연결합니다. 다른 쪽 끝은 최소 2500W 전력 등급의 멀티탭에 직접 연결할 수 있는 플러그여야 합니다.
2) 테더링 박스의 고전압 케이블 출력은 XT90 커넥터를 사용합니다. 케이블을 드론의 온보드 전원 공급에 연결하며, 아래와 같이 하중 걸이(케이블이 힘을 받는 부분)를 고정합니다.
1.3.3 작동 지침
1) 작동 중에는 먼저 토크 조절 노브를 최저 설정으로 조절한 후 차단기를 닫습니다. 그러면 시스템에 전원이 공급되고 디스플레이 패널에 표시가 켜집니다.
2) 드론에 전원을 공급하려면 "전원 온/오프" 버튼을 누릅니다. 테더링 박스 냉각 팬이 작동을 시작하고 "주 전원 작동" 표시등이 지속적으로 켜집니다. 디스플레이는 주 전원 케이블의 현재 출력 전압, 전류 및 전력을 표시합니다. 시스템이 전류를 운반할 때 표시등이 깜박이며 항공기에 전원이 공급되고 있음을 나타냅니다.
3) 이륙 준비 시 토크 노브를 최저 설정으로 조절하거나 (바람이 강한 경우) 약간 토크를 증가시킵니다. 드론을 통해 케이블을 당깁니다. 케이블을 감으려면 토크 노브를 낮음에서 높음으로 조절하며 드론의 하강 속도와 동기화합니다. 또는 처음부터 적절한 값으로 토크를 조절하여 케이블에 일정한 장력을 유지할 수 있습니다. 드론은 케이블을 풀어주고 강제로 당겨서 호버링합니다. 착륙 시 케이블 장력으로 인해 자동으로 케이블이 감깁니다. 4) 작업 완료 후 먼저 주 전원 스위치를 끄고 고전압 DC 전원 공급을 분리합니다. 감김 작업을 수행하여 감전 사고를 방지합니다. 마지막으로 주 전원 스위치를 끄고 전원 코드를 뽑습니다.

1.3.4 주의 사항
1) 사용 시작 전 장비가 수평이고 비교적 균형 잡혀 있는지 확인하십시오.
2) 작업자는 감전 사고를 방지하기 위해 절연 장갑을 착용해야 합니다.
3) 속도 조절 노브를 조절할 때는 낮음에서 높음으로 천천히 돌리며 갑자기 최대치로 돌리지 마십시오.
4) 감거나 풀고 난 후 전원 코드를 감아 박스에 보관하십시오. 바닥에 끌지 마십시오.
5) 사용 중 테더링 케이블을 바닥에 끌지 마십시오. 보풀 발생을 방지하고 바닥의 돌이나 날카로운 물체로 인해 케이블이 절단되지 않도록 주의하십시오.
