Great mainlink Industrial Drone 22 km Data Link

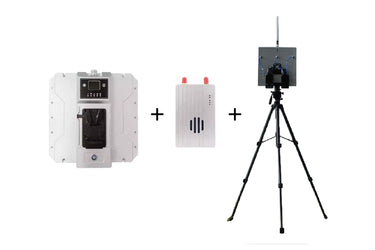

Core Overview: MK22+MF18 Professional Drone Beyond-Visual-Line-of-Sight (BVLOS) Data Link System | 22km HD Video Transmission & Auto-Tracking Suite. 1. Core Overview: Your BVLOS Flight’s "Intelligent Data Backbone." The MK22+MF18 is a highly integrated, system-level drone data link solution engineered specifically for demanding industrial environments. This suite seamlessly integrates the MK22 long-range HD digital data/video transmission system with the MF18 fully automatic, high-precision antenna tracking gimbal, establishing a stable and reliable "aerial data highway." It comprehensively resolves the critical pain points associated with BVLOS flight—specifically, signal interruptions, unstable video quality, and high control latency. Whether conducting large-scale mapping operations 22 kilometers away, performing long-distance pipeline inspections, or executing reconnaissance missions in complex terrain, this system ensures the stable, bi-directional transmission of both HD video streams and flight control data. By extending the operator's visual and control range beyond the line of sight, it serves as a steadfast guarantee of confidence for the execution of critical missions.
2. Technical Advantages
Advantage 1: Ultra-Long-Range Stable Link & Exceptional Anti-Interference Capability. Verified 22km Transmission: Provides a reliable communication range of up to 22 kilometers in open terrain, significantly expanding the operational radius of a single ground station. Multi-Band Configurability: Supports multiple license-free frequency bands—including 800MHz, 1.4GHz, and 2.4GHz—allowing for flexible selection based on regional regulations and the local interference environment to avoid congestion and enhance anti-interference resilience. High Bandwidth & Low Latency: Achieves an air data rate of up to 30Mbps with an end-to-end data latency of less than 30ms, ensuring smooth 1080P HD video streaming and real-time responsiveness for control commands.
Advantage 2: Fully Automatic, High-Precision Antenna Tracking—Freeing Up Your Hands. 360° Seamless Auto-Tracking: The MF18 gimbal features a built-in high-precision GPS module that processes the drone's Mavlink data in real-time, automatically driving the high-gain antenna to precisely align with the aircraft with a horizontal tracking error of less than 0.5°. Ultra-Fast Response: Boasts a horizontal rotation speed of up to 300° per second, ensuring the signal link remains in optimal condition even when the drone is performing high-speed maneuvers. System-Level Integration: Specifically optimized for the Maestro series, it works in perfect synergy with the MK22 ground station to deliver a true "plug-and-play" auto-tracking experience. Advantage 3: Integrated Industrial Design—Ultimate Usability and Reliability. Lightweight yet Robust: The MK22 airborne unit weighs only 150g and features a modular design. The ground station integrates both a high-gain flat-panel antenna and an omnidirectional antenna, balancing the need for long-range transmission with broad coverage. Highly Simplified Operation: The ground station is equipped with an OLED screen that displays signal strength, quality, IP address, and data stream status in real-time, facilitating rapid antenna alignment. A unique physical pairing button allows for one-touch pairing and AES encryption, eliminating the need for complex software configurations. Dual Power Supply and Extensive Interfaces: Supports a wide DC 9–28V voltage input range as well as integrated power supply via aviation-grade cables, ensuring adaptability for field operations. It provides dual RS232 ports, an SBUS port, and an Ethernet port, ensuring perfect compatibility with mainstream flight controllers (such as Pixhawk) and various mission payloads.
Advantage 4: Multifunctional Integration—Building a Complete Operational Ecosystem. Dual-Band Wi-Fi Real-time Distribution: The MF18 integrates 2.4GHz/5.8GHz low-latency Wi-Fi capabilities, allowing for the real-time distribution of video streams (via RTSP/UDP/TCP) and telemetry data to multiple ground stations (e.g., computers, tablets), thereby facilitating seamless team collaboration. SBUS Signal Forwarding/Range Extension: Features a built-in SBUS module capable of forwarding remote controller signals, enabling effortless ultra-long-range control. Wide Operating Temperature Range: Capable of operating in extreme temperatures ranging from -40°C to +70°C; undeterred by severe heat or cold, it ensures operational continuity in the field.
3. Recommended Frequency Bands and Flight Planning: Before deployment, select and configure the appropriate operating frequency band based on the laws and regulations of the specific operational area (e.g., 800MHz offers strong penetration capabilities, while 2.4GHz offers high versatility). In complex environments—such as urban areas—actual transmission distances may be reduced; therefore, please allow for a sufficient safety margin when planning flight routes (a margin of 60–70% of the nominal transmission distance is recommended).
Deployment and Alignment: Mount the MF18 gimbal unit onto a stable tripod, ensuring that there are no obstructions directly overhead. Once powered on, the gimbal will automatically search for and track the paired drone. The OLED screen on the MK22 ground station assists in performing the final fine-tuning of the alignment to ensure the strongest possible signal reception. Encryption & Security: It is strongly recommended to use the "One-Touch Pairing" function to enable AES encryption prior to every mission, thereby preventing signal interception or interference. More complex private keys can be customized via the "Maestro Assistant" software. Maintenance: Periodically check that the antenna connectors are secure and clean the antenna surfaces. It is recommended to inspect the equipment after use in dusty or humid environments. 4. Product Parameter Table — System Components: MK22 Data/Video Link
Maintenance: Periodically check that the antenna connectors are secure and clean the antenna surfaces. It is recommended to inspect the equipment after use in dusty or humid environments.

Long-range UAV video and data transmission system

22KM system is a integrated UAV video link system which continues the design and usage style of Maestro series wireless HD video transmission system. It has powerful functions and high integration. The ground is equipped with 1/4 screw port, which can be installed on a universal tripod. Rotating tripod can realize rapid alignment with UAV, dual power supply mode, very convenient to use.
